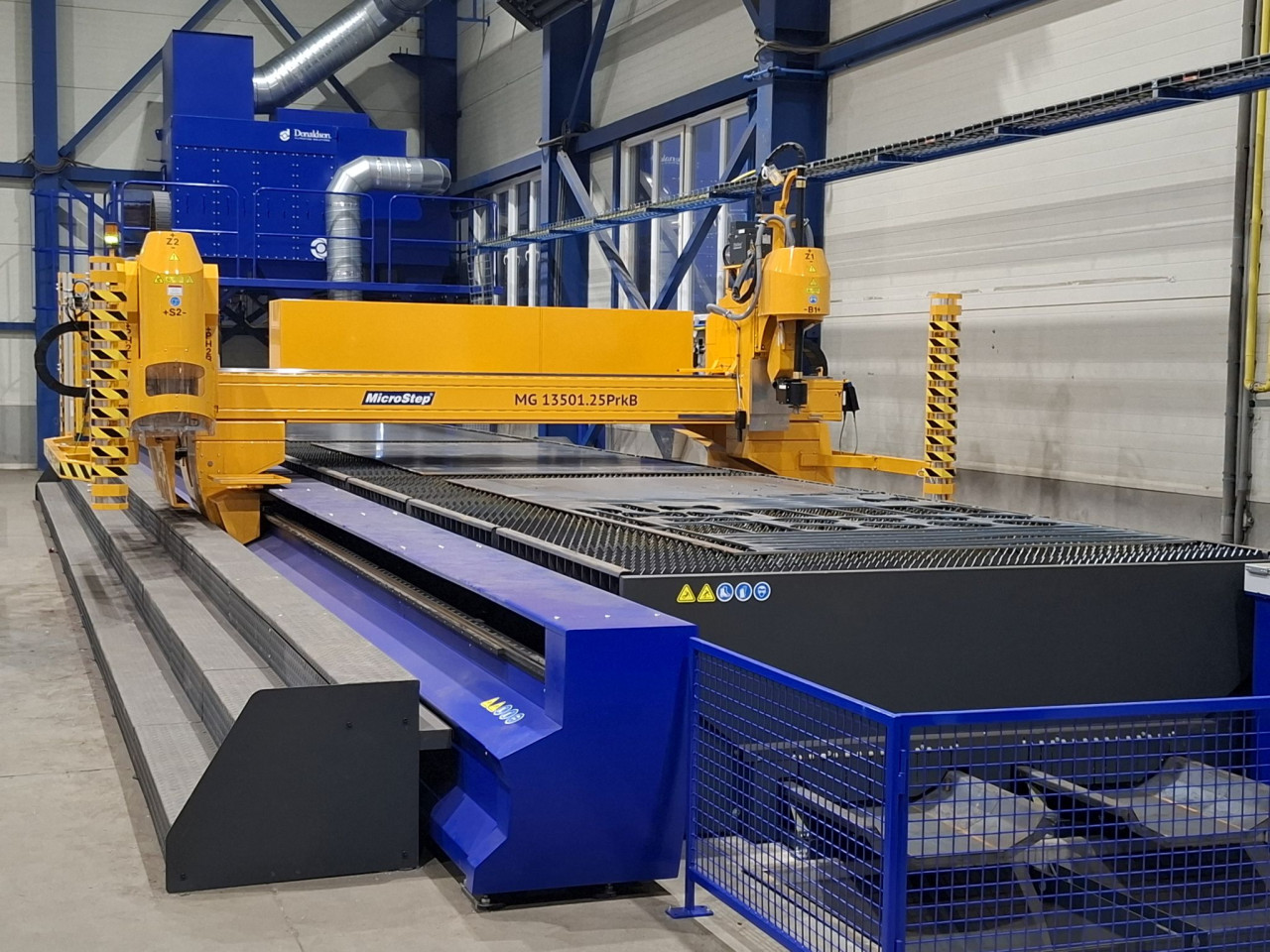

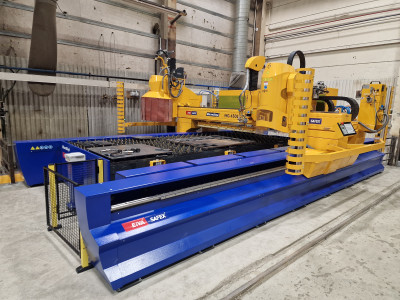

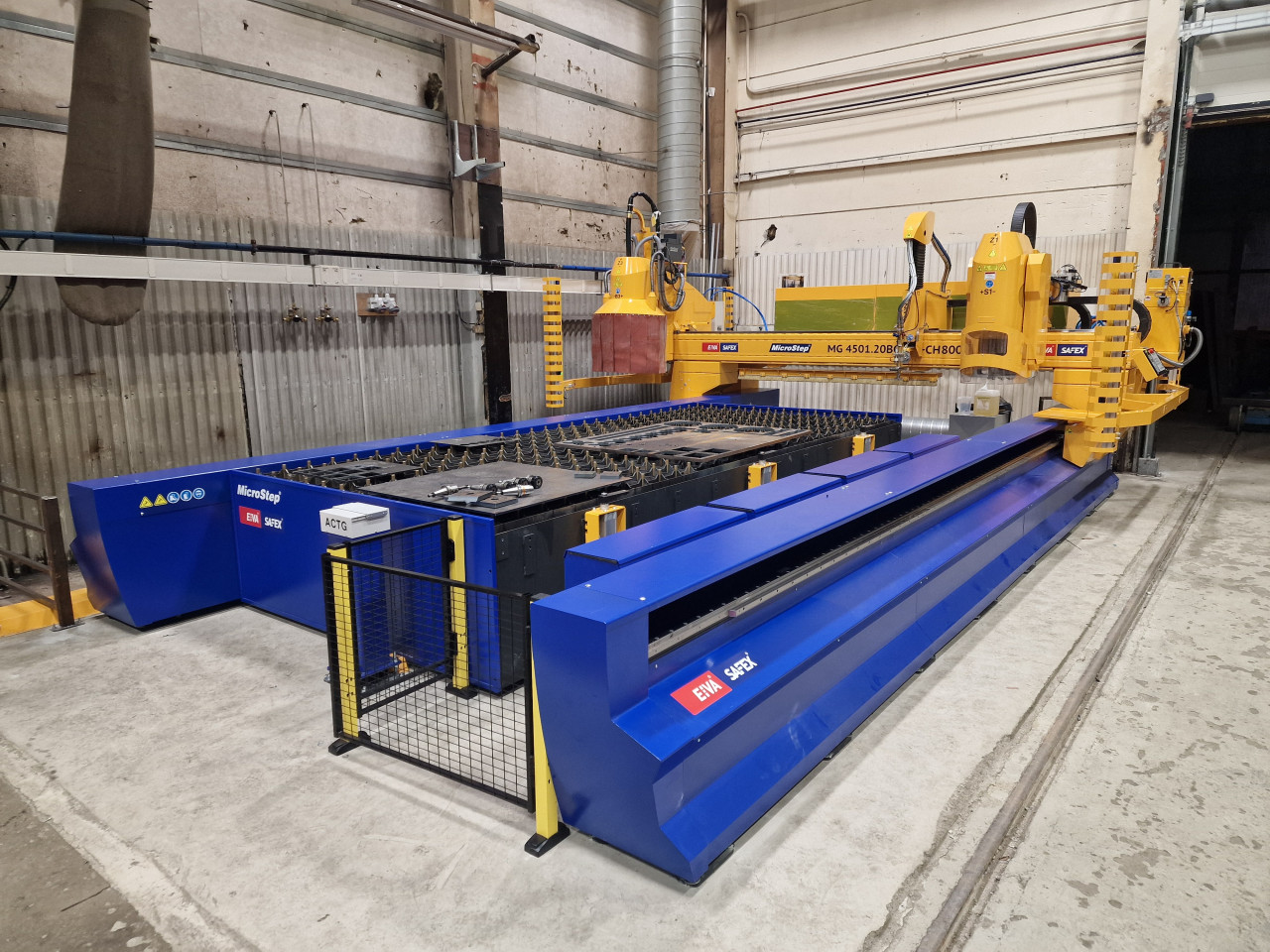

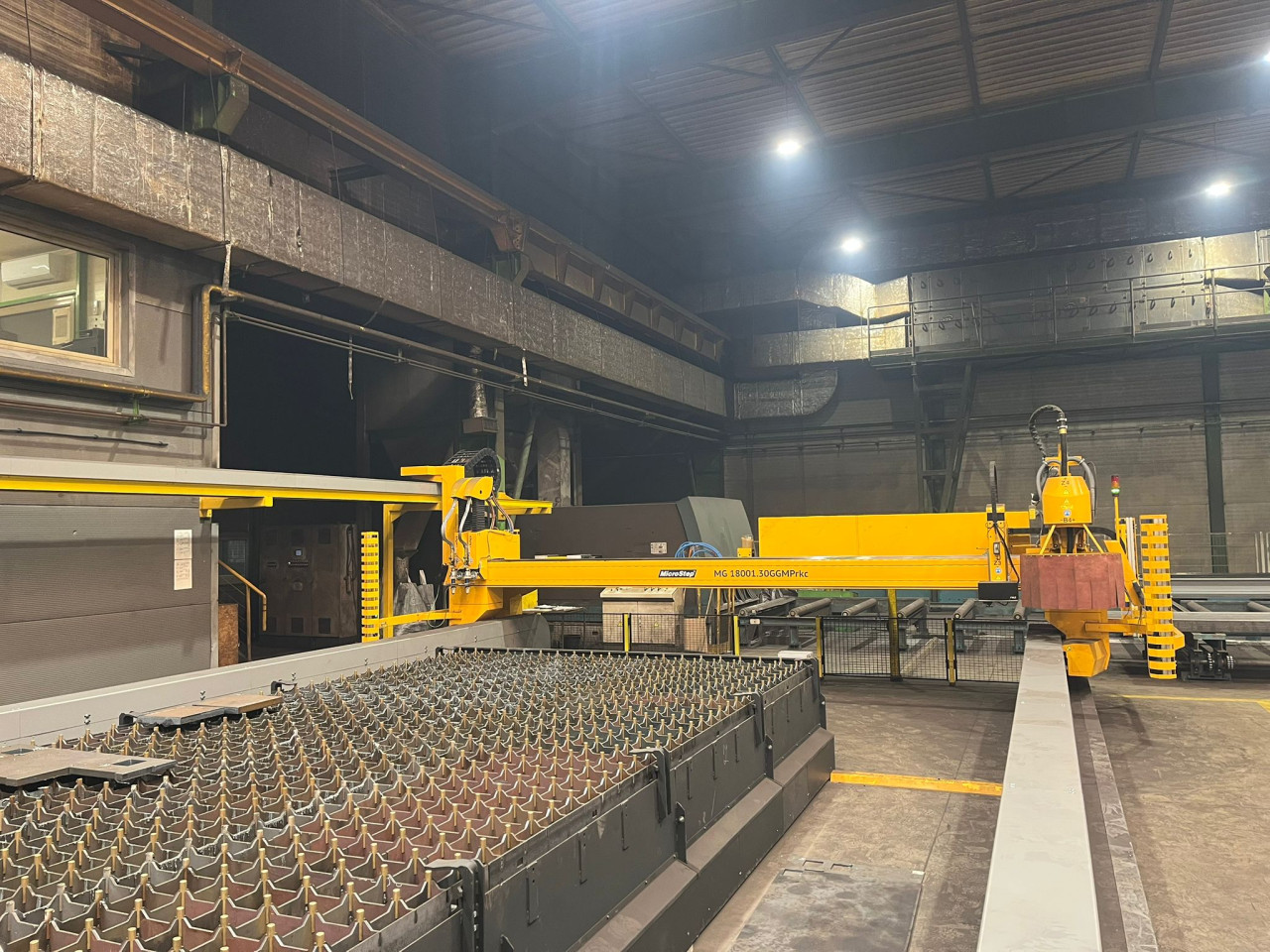

MG

The MG series is MicroStep’s top class CNC cutting machine suitable for long-term industrial use and meeting highest requirements on precision, performance and easy operation. MG machines provide a wide variety of applications: bevel cutting with plasma and oxyfuel, pipe, profile, dome or elbow cutting, drilling with automatic tool exchange, plate positioning with laser sensor or a CCD camera, inkjet or micropercussion marking. A special heightened version of gantry enables oxyfuel cutting up to 250 mm.

Technical parameters

Working length1500 - 50000 mm
Working width1500 - 8000 mm
Max. number of tool stations6 (8G)
Max. thickness of material cut by plasmaaccording to a plasma source
Max. thickness of material cut by oxyfuel150 mm (250 mm with heightened gantry)
Bevel cuttingyes (see accessories)
Pipe cuttingØ 30 - 1000 mm, max 10 t
(up to Ø 1500 mm, 12 t with heightened gantry)
Drilling and tappingØ 4 - 40 mm, M4 - M33, automatic tool exchange
Positioning speed max 56 m/min
Bidirectional repeatability0.05 mm/m
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers' needs.

Inquiry formBrochure

Accessories

  • Plasma Straight Tool Station
  • Plasma Rotator
  • Plasma 90° Rotator
  • Auto-calibration of Tool Geometry
  • Inkjet Writer
  • MicroPunch
  • Drilling tool station MG-B
  • CCD Camera
  • Automatic Plate Alignment
  • Additional Beveling Process
  • Oxyfuel Triple Bevel Tool Station
  • Oxyfuel Multi-torch Tool Station
  • Second Touchscreen on the Gantry
  • Plasma Tilting Tool Station
  • Oxyfuel Straight Tool Station
