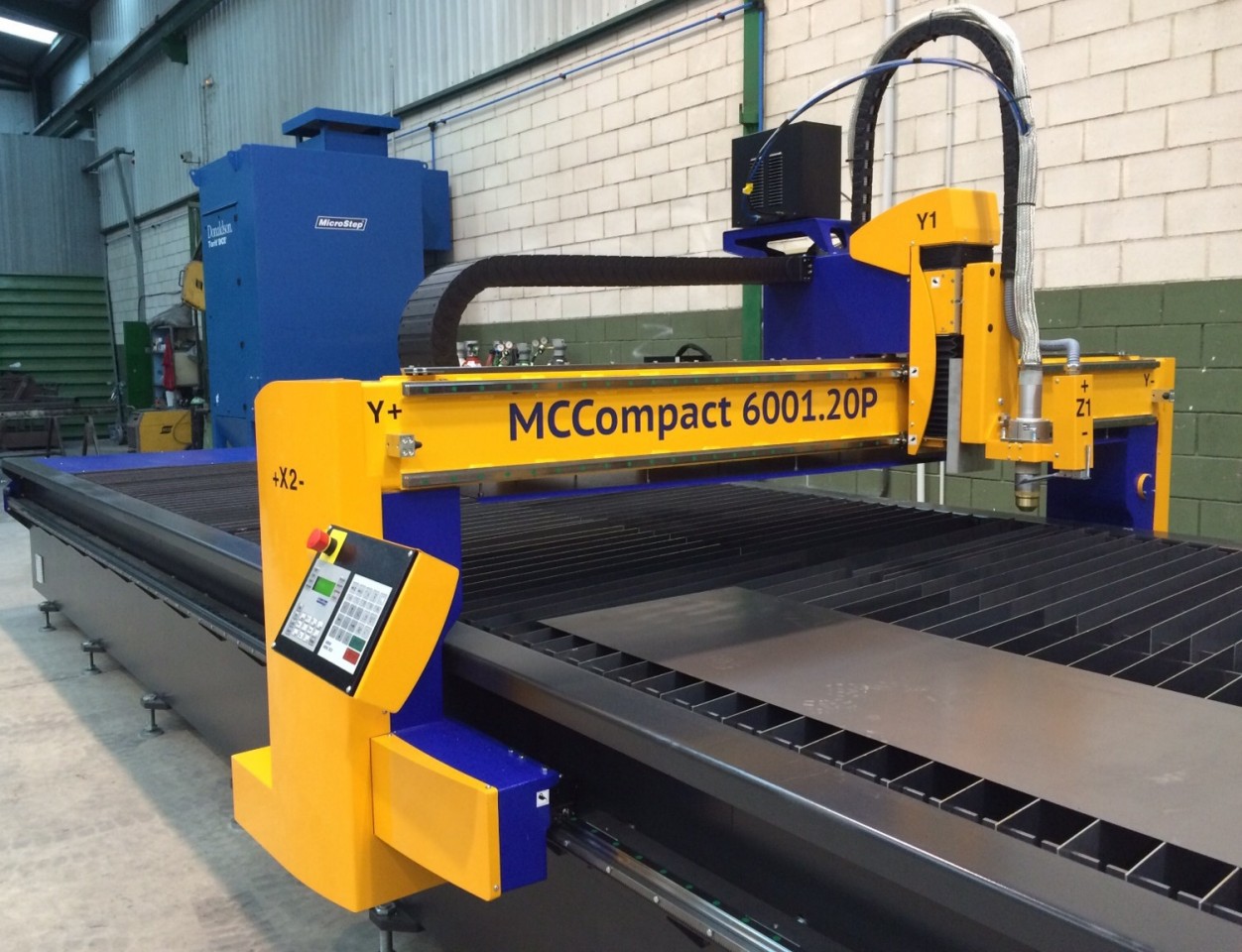

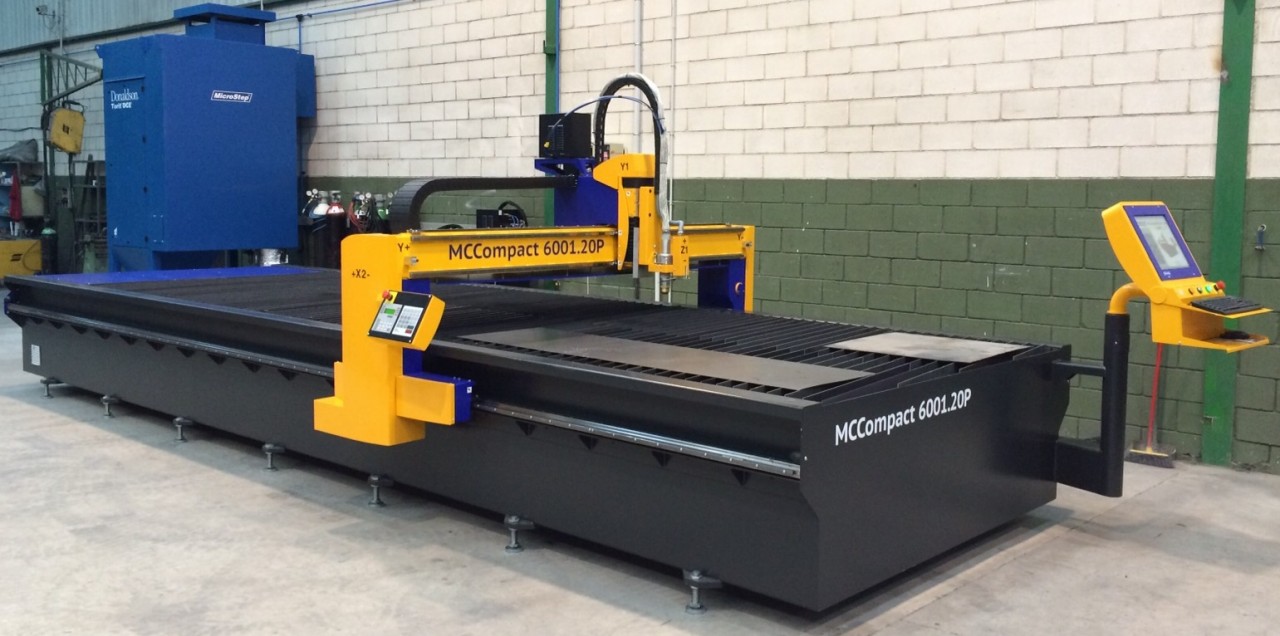

MasterCut Compact

MasterCut Compact is a dynamic, high precision CNC cutting machine suitable for a variety of plasma and oxyfuel cutting jobs. Thanks to its sophisticated design and high quality of components it smoothly provides latest features of plasma technology for a decent price – true contours, small holes, sharp corners and efficient operation. As a fully compact machine it is moveable within workshop while the pre-assembled delivery significantly shortens the start-up time.

Technical parameters

Working length 1500 - 6000 mm
Working width1500 - 2000 mm
Max. number of tool stations1 (2 with 2000 mm width)
Max. thickness of material cut by plasmaaccording to a plasma source
Max. thickness of material cut by oxyfuel100 mm
Bevel cuttingyes (see accessories)
Pipe cuttingno
Drilling and tappingno
Positioning speedmax 51 m/min
Bidirectional repeatability0.05 mm/m
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers' needs.

Inquiry formBrochure

MasterCut Compact – 3D tilting tool station (bevel)

MasterCut Compact videos

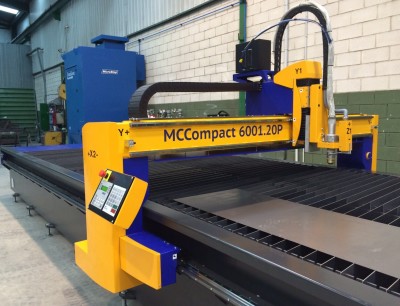

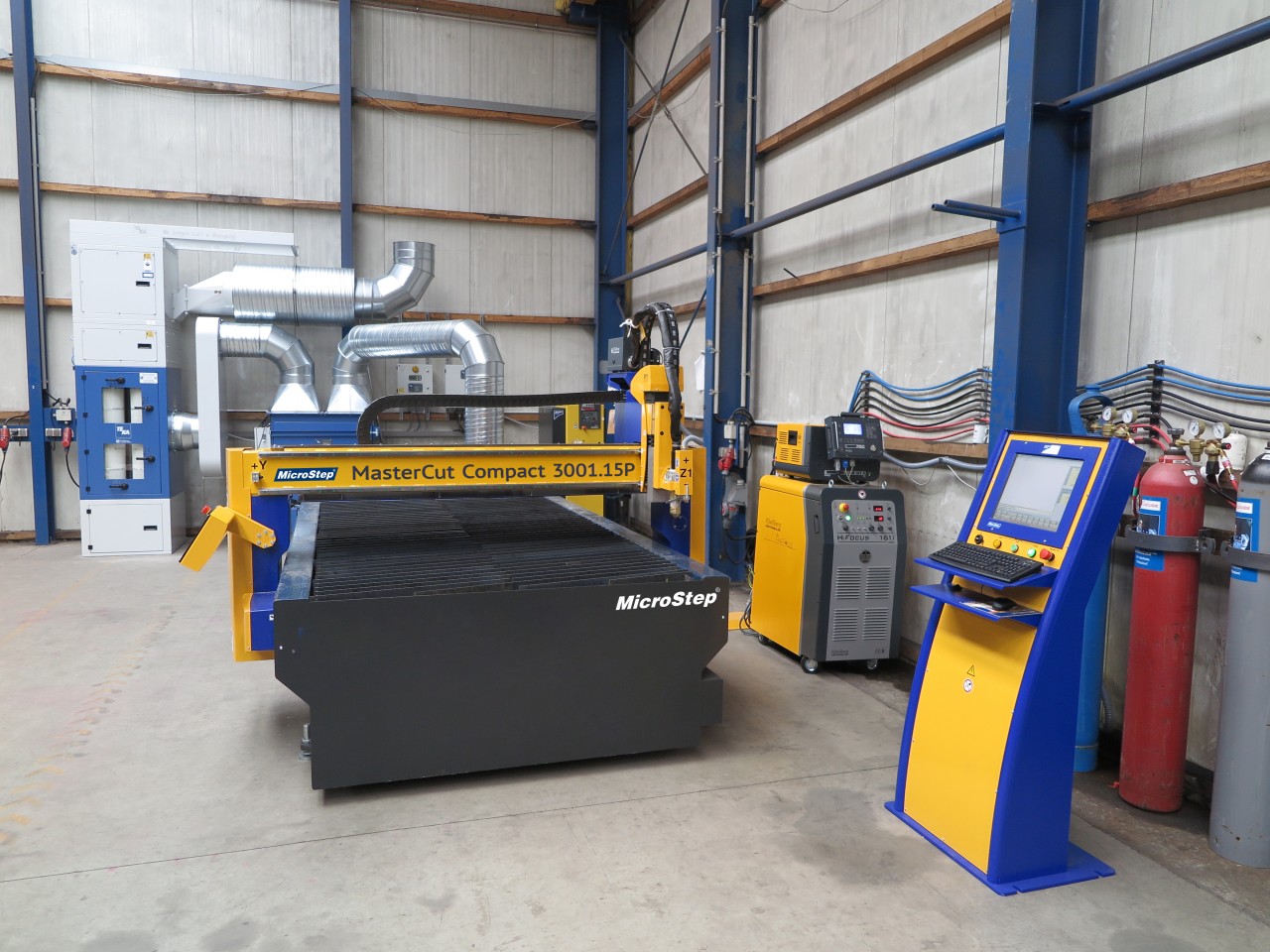

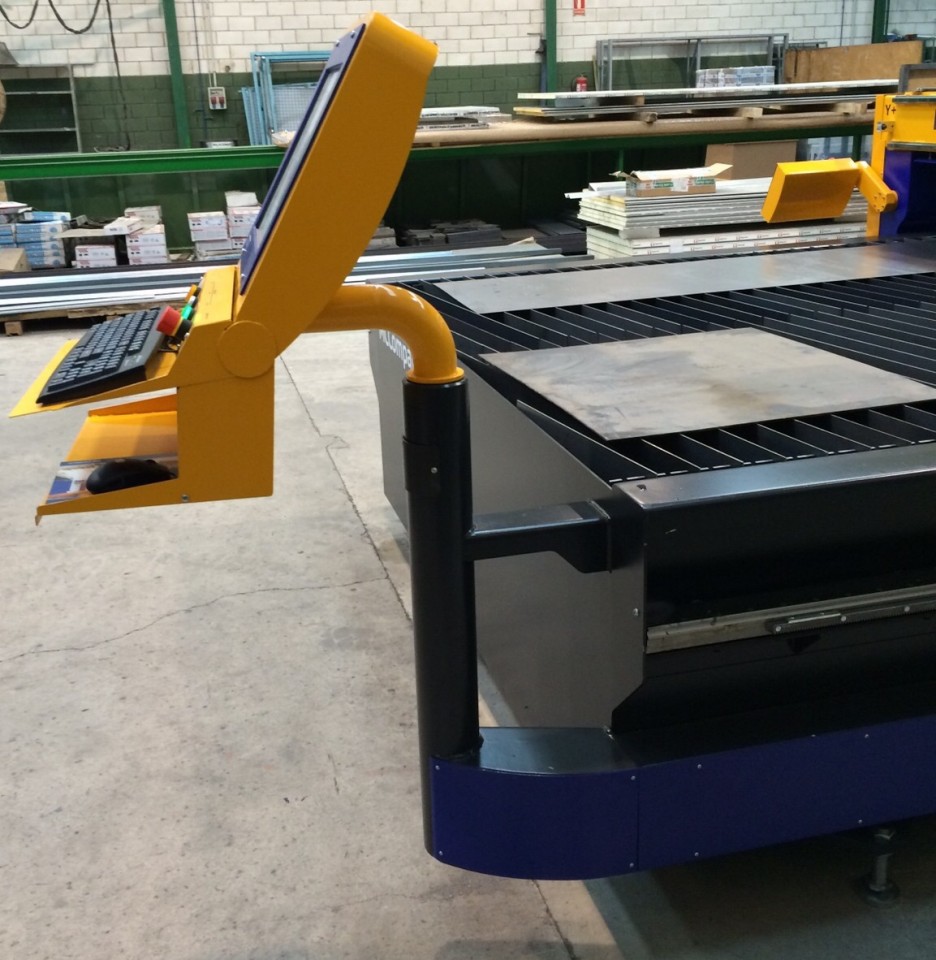

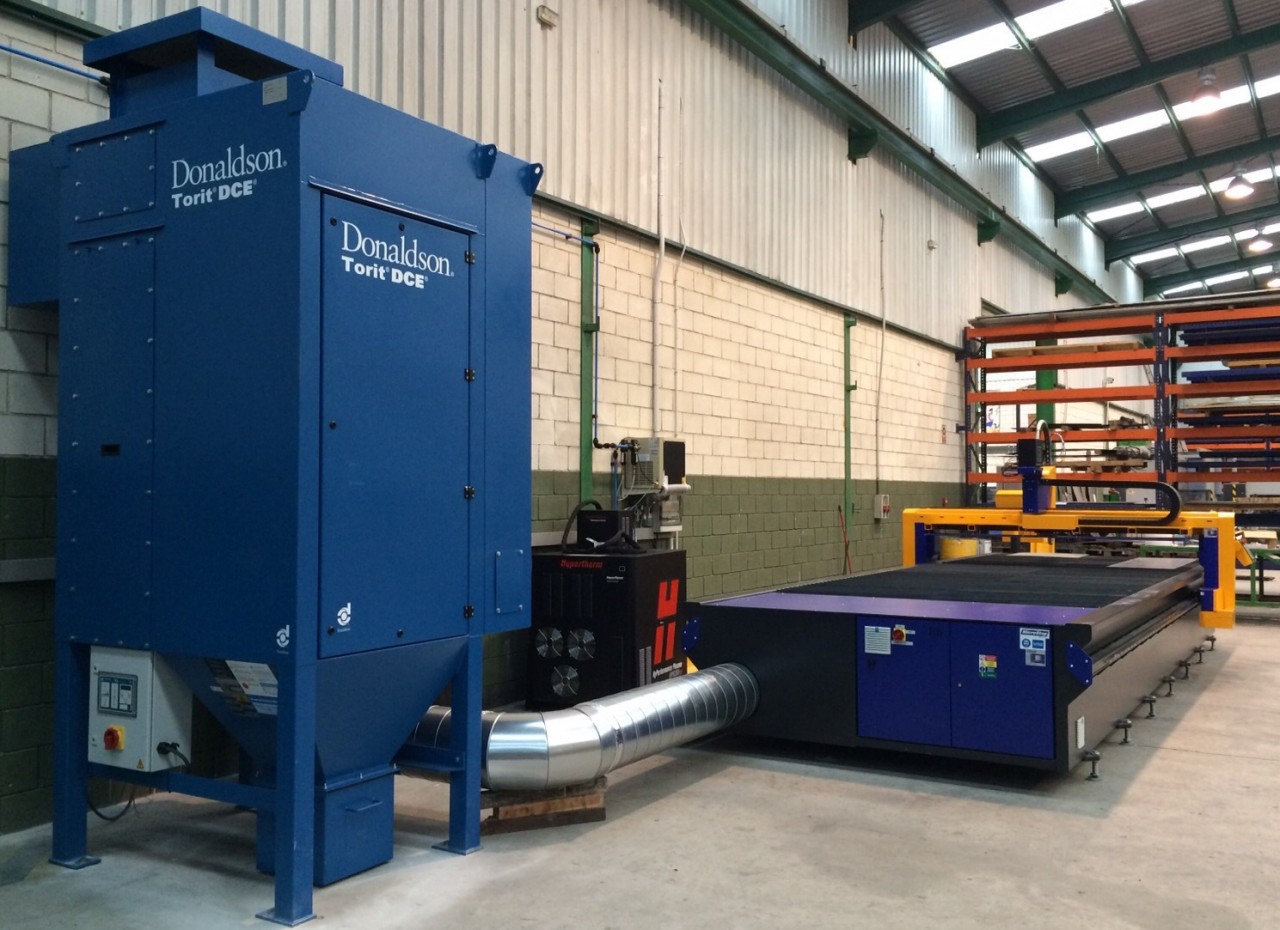

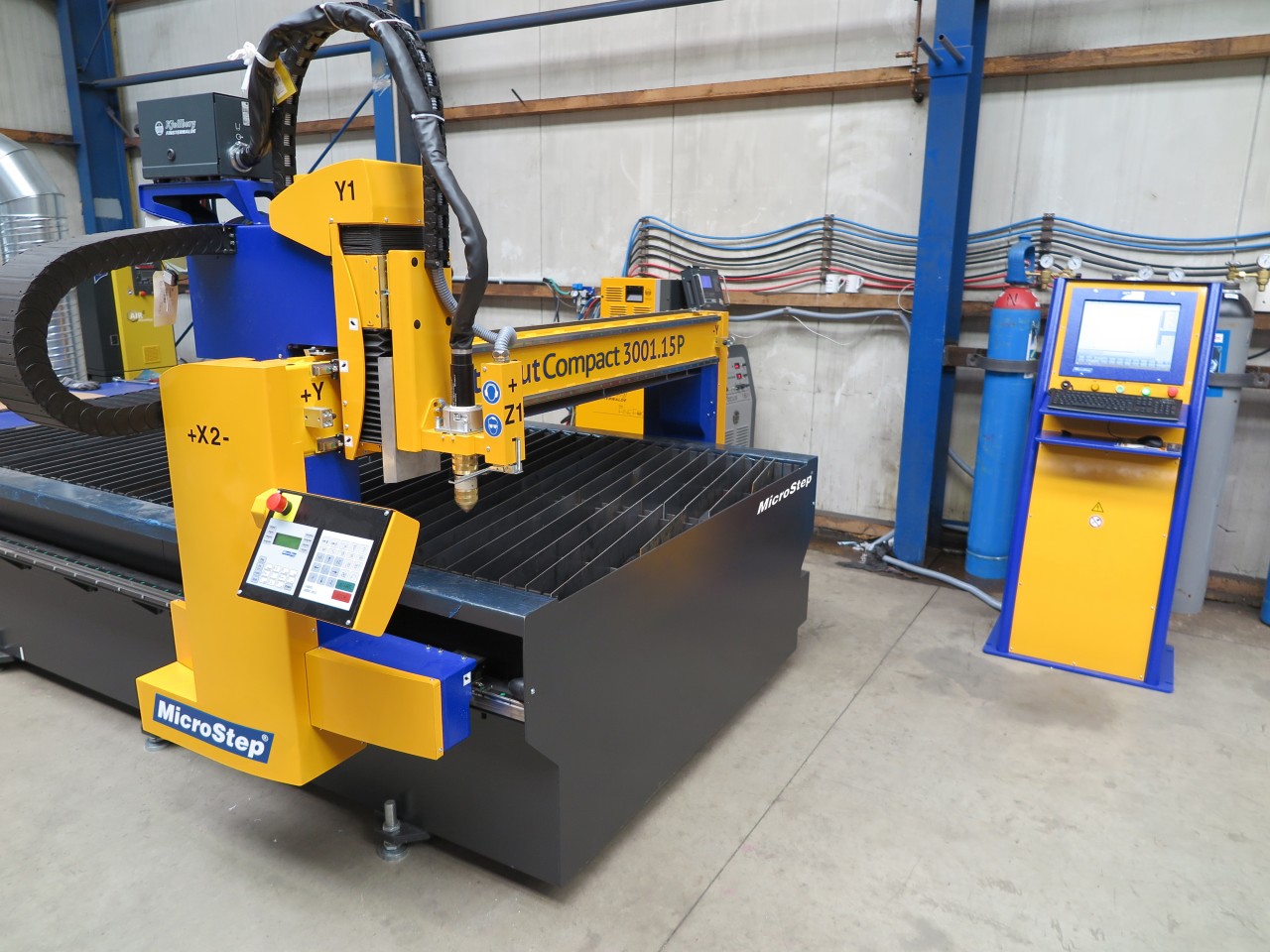

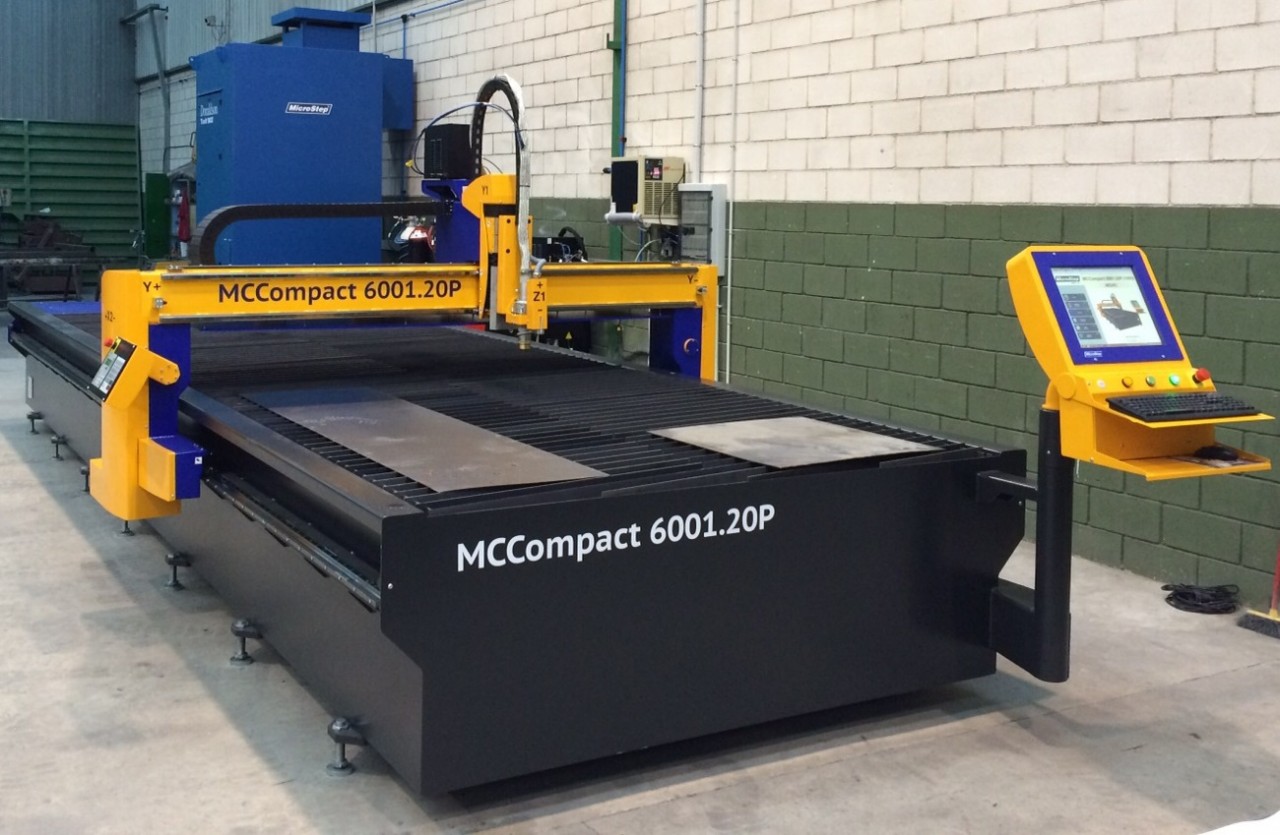

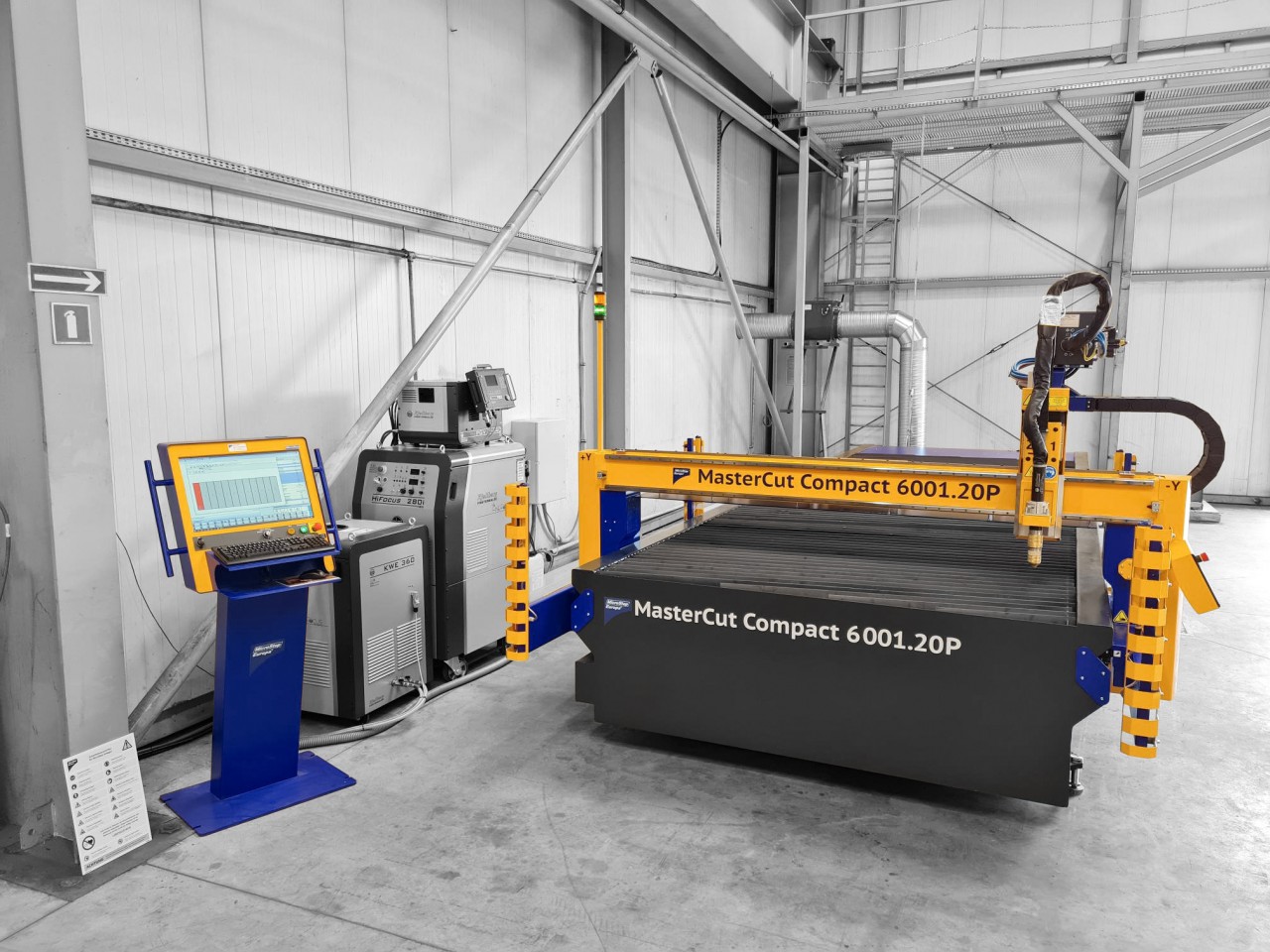

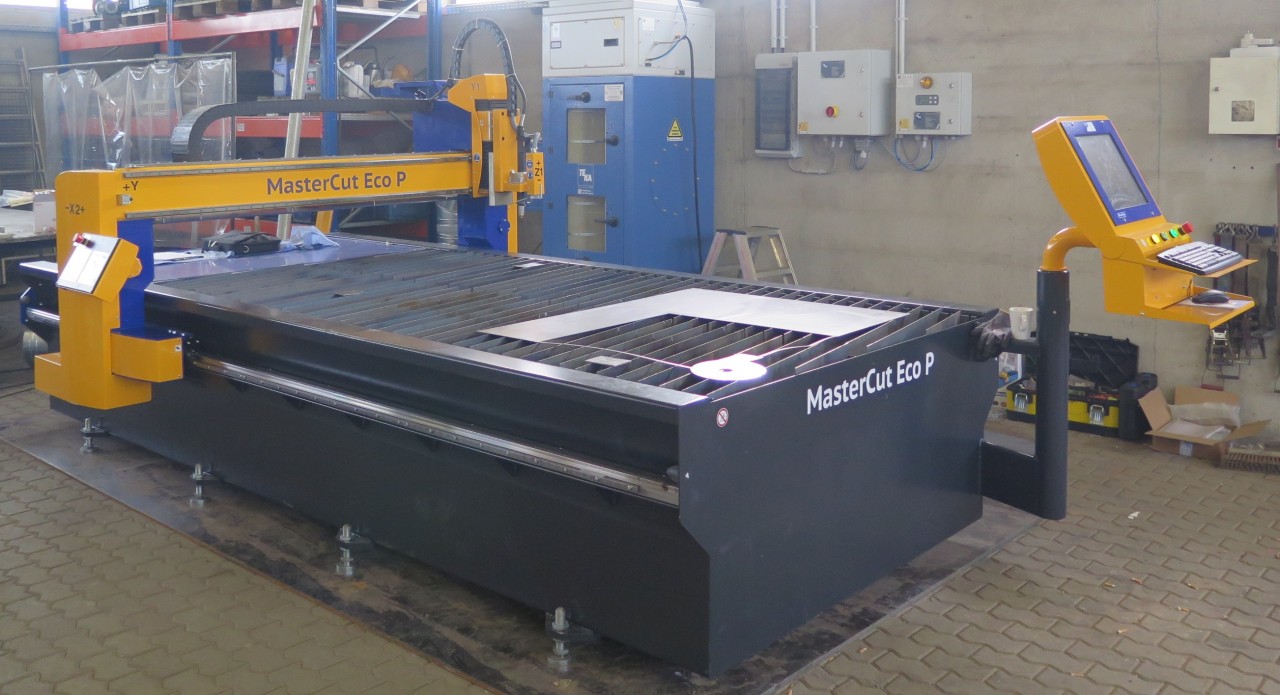

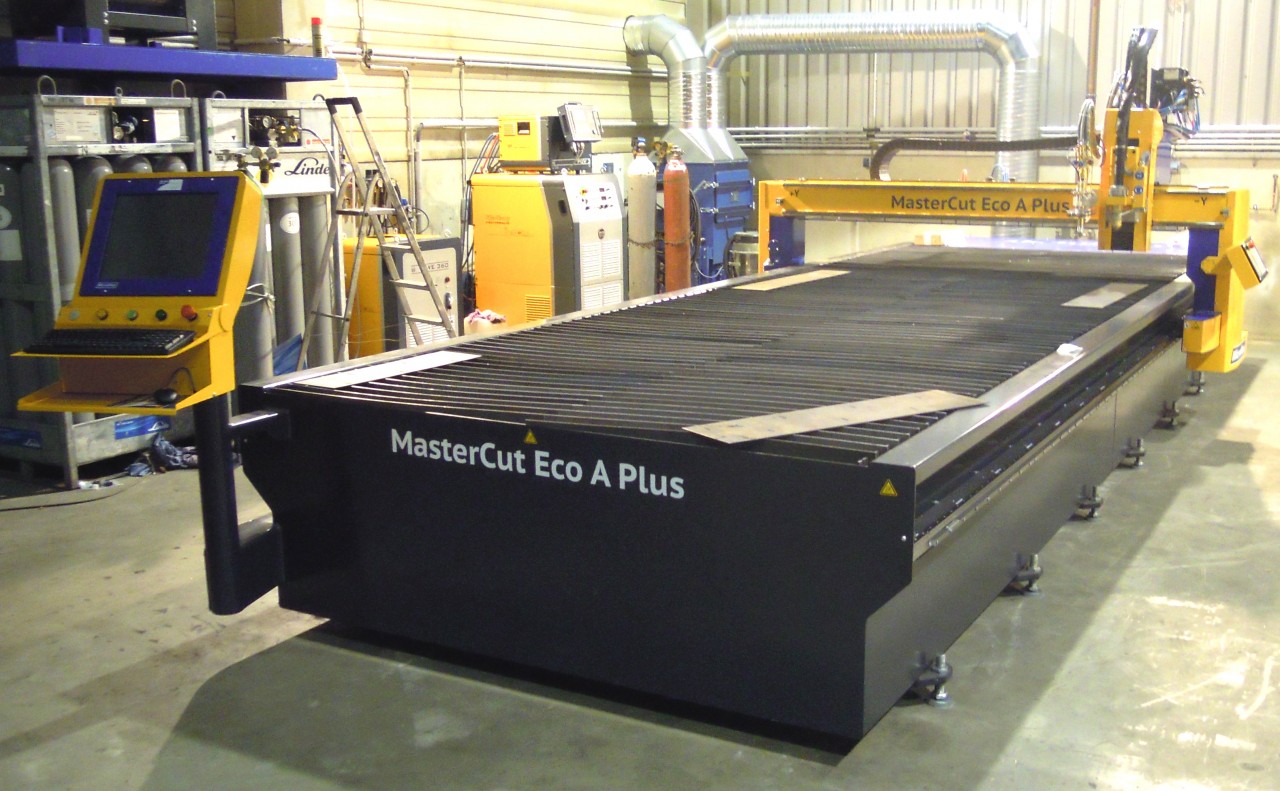

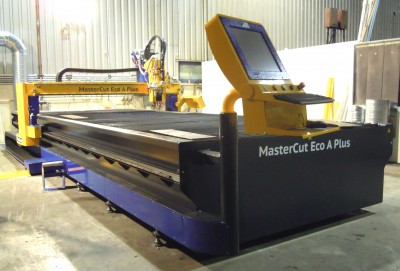

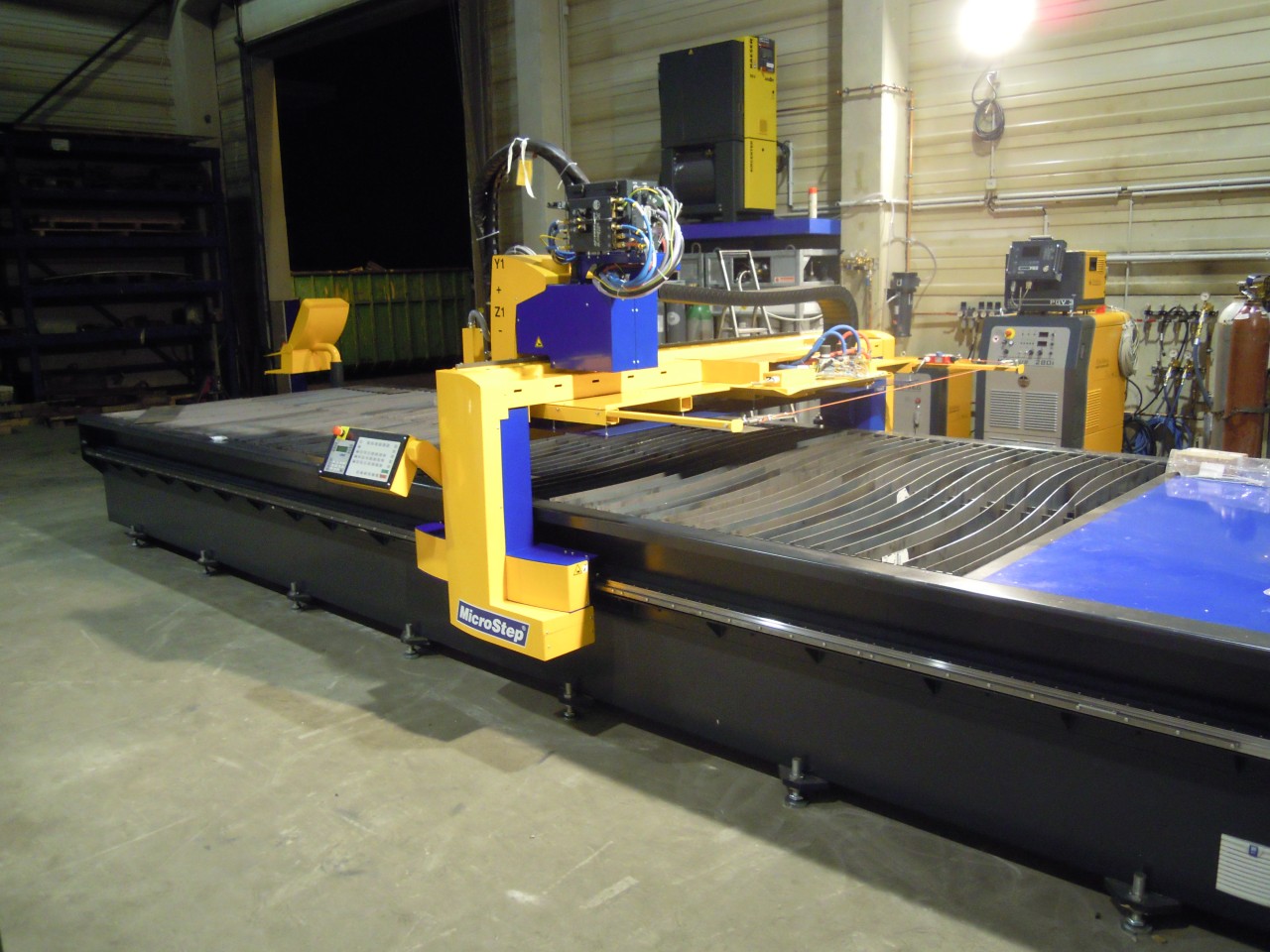

MasterCut Compact gallery

MasterCut Compact References

Accessories

  • Plasma Straight Tool Station
  • Auto-calibration of Tool Geometry
  • Plasma 3D Tilting Tool Station
  • Oxyfuel Straight Tool Station
