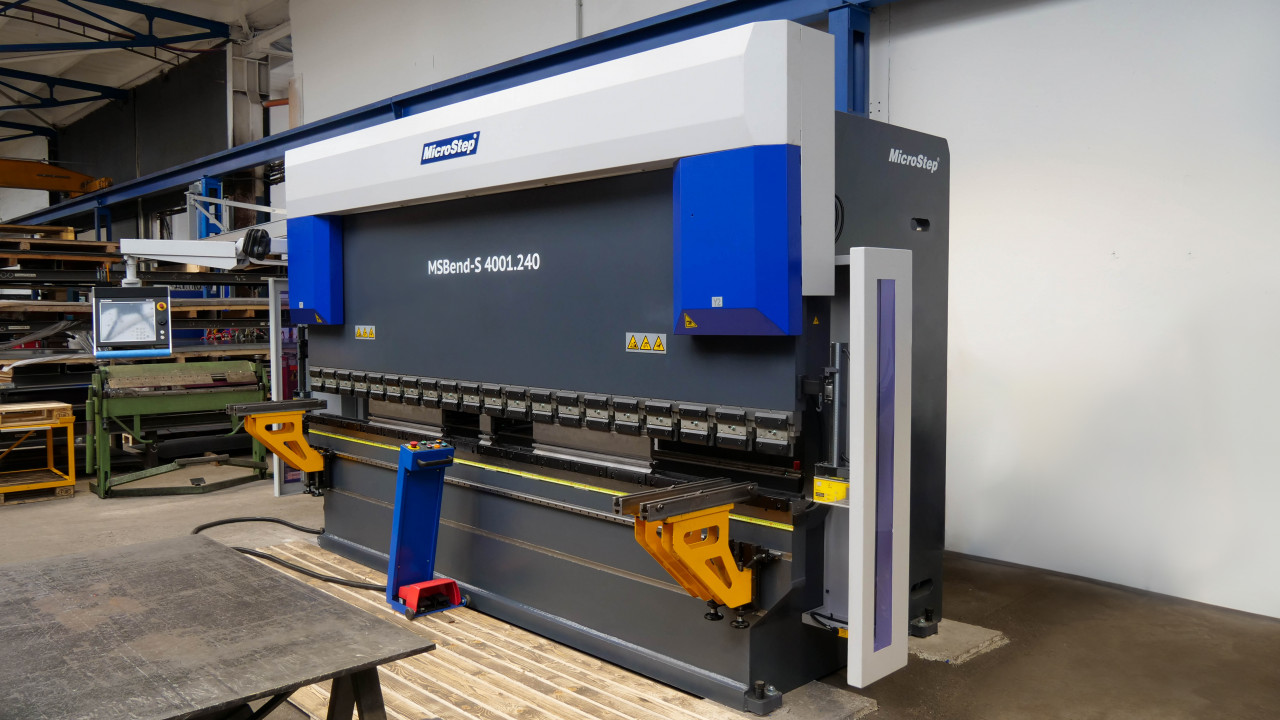

MSBend-S series press brakes are designed to maximize productivity and decrease cost per unit. Design innovations based on years of experience have resulted in faster speeds on the approach, bending, return and back gauge. Machine features a rigid mono-block frame for minimum deflection under load. Synchronized dual cylinders and valves assure smooth, stable ram motion for high-quality, precision bends accurate to with 0,01 mm. MSBend-S series daylight, stroke and throat depths are specially designed for long tools.

Standard Machine Features:

Delem touch-screen control unit (2D programming, 3D visual only)

Delem touch-screen control unit

Automatic CNC controlled crowning system

Rigid mono-block ST44-steel frame

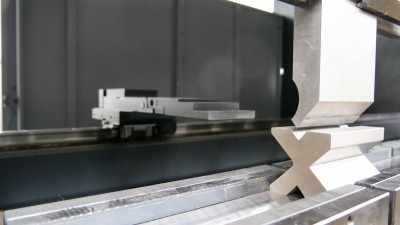

Universal top and bottom tooling with Promecan clamp

Control unit arm moveable up and down

Robust safety features

Optional Machine Features:

Rolleri pneumatic or hydraulic top tool clamping system

CNC controlled sheet following system (125/250 kg carriage capacity)

Parking area length extension

CNC controlled back gauge X1-X2, R1-R2, Z1-Z2 axes

Laser angle measurement with 2 cameras

Robotic manipulator

Technical Features:

Bending force	400 - 6,000 kN
Motor power	4 - 37 kW
Oil tank capacity	80 - 500 liters
Approach speed	80 - 170 mm/s
Working speed	7 - 10 mm/s
Return speed	70 - 130 mm/s
Approx. weight	3.3 - 55 ton
Bending length	1,250 - 6,100 mm
Distance between columns	1,070 - 5,100 mm
Side frame width	1,470 - 2,400 mm
Bed height	800 - 1,115 mm
Daylight opening	455 - 660 mm
Stroke	210 - 360 mm
Table width	60 - 380 mm
Throat gap	410 - 500 mm
