DRM

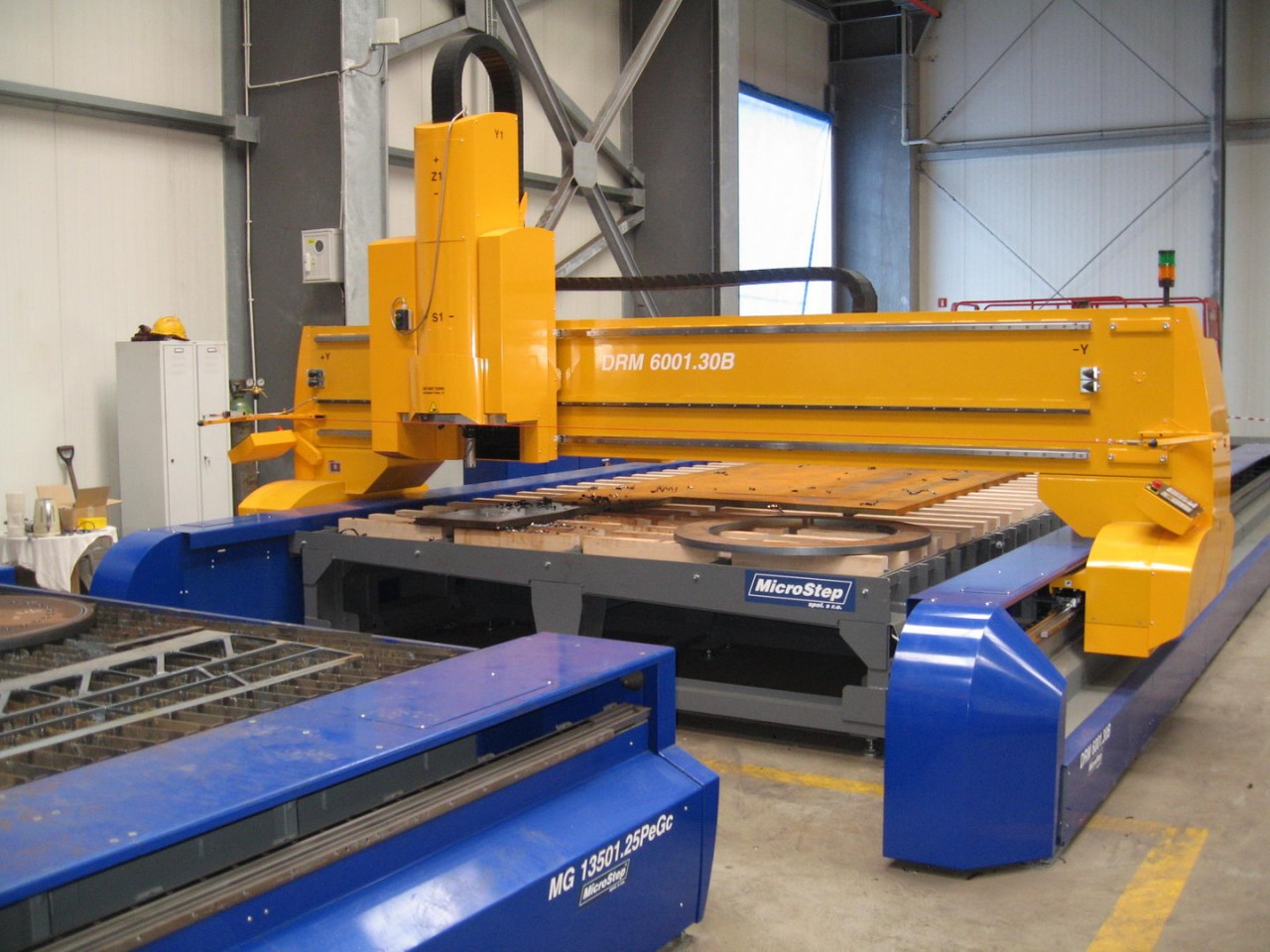

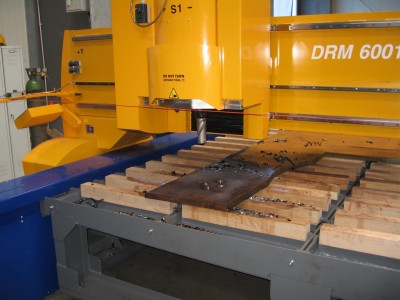

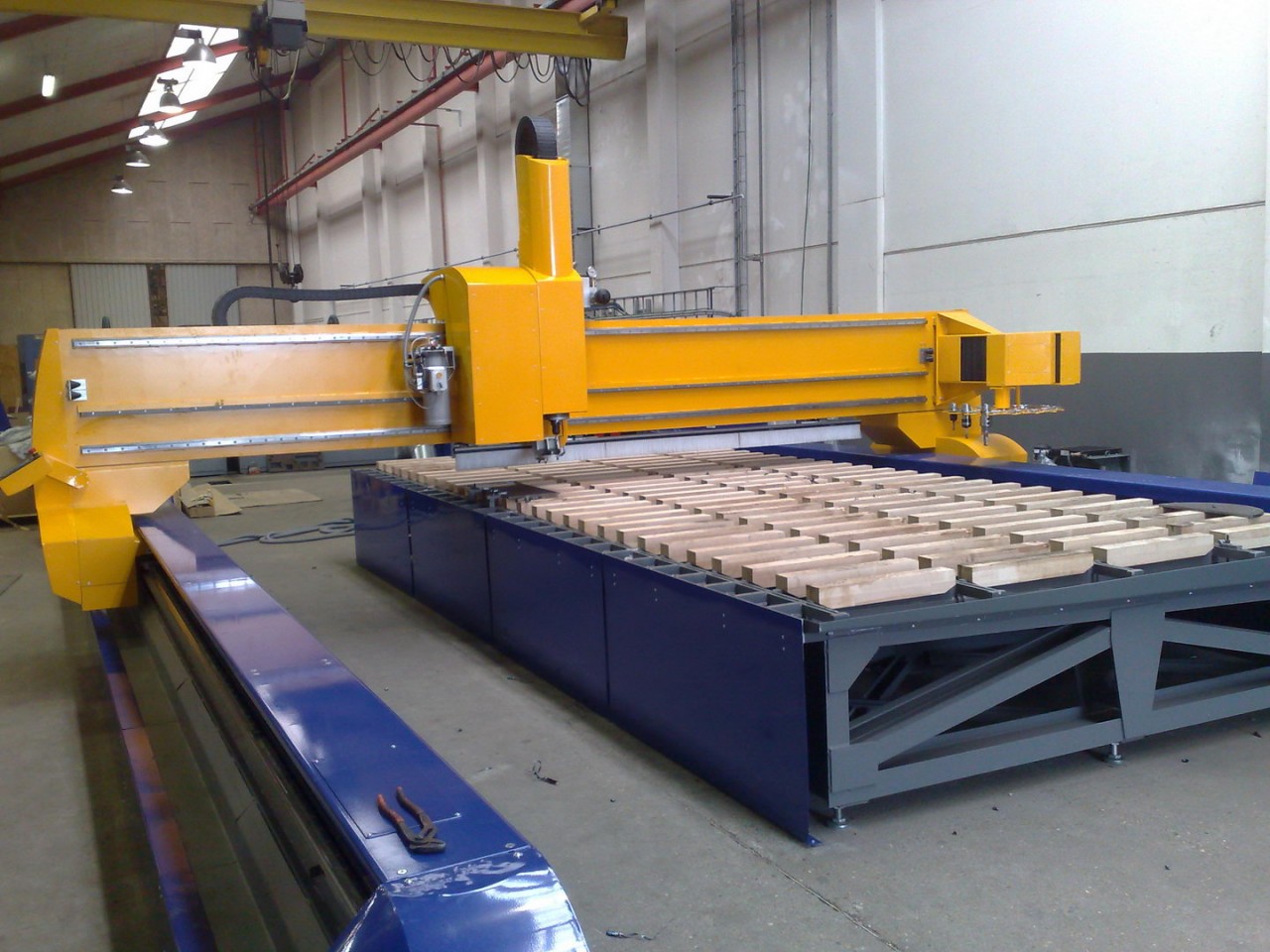

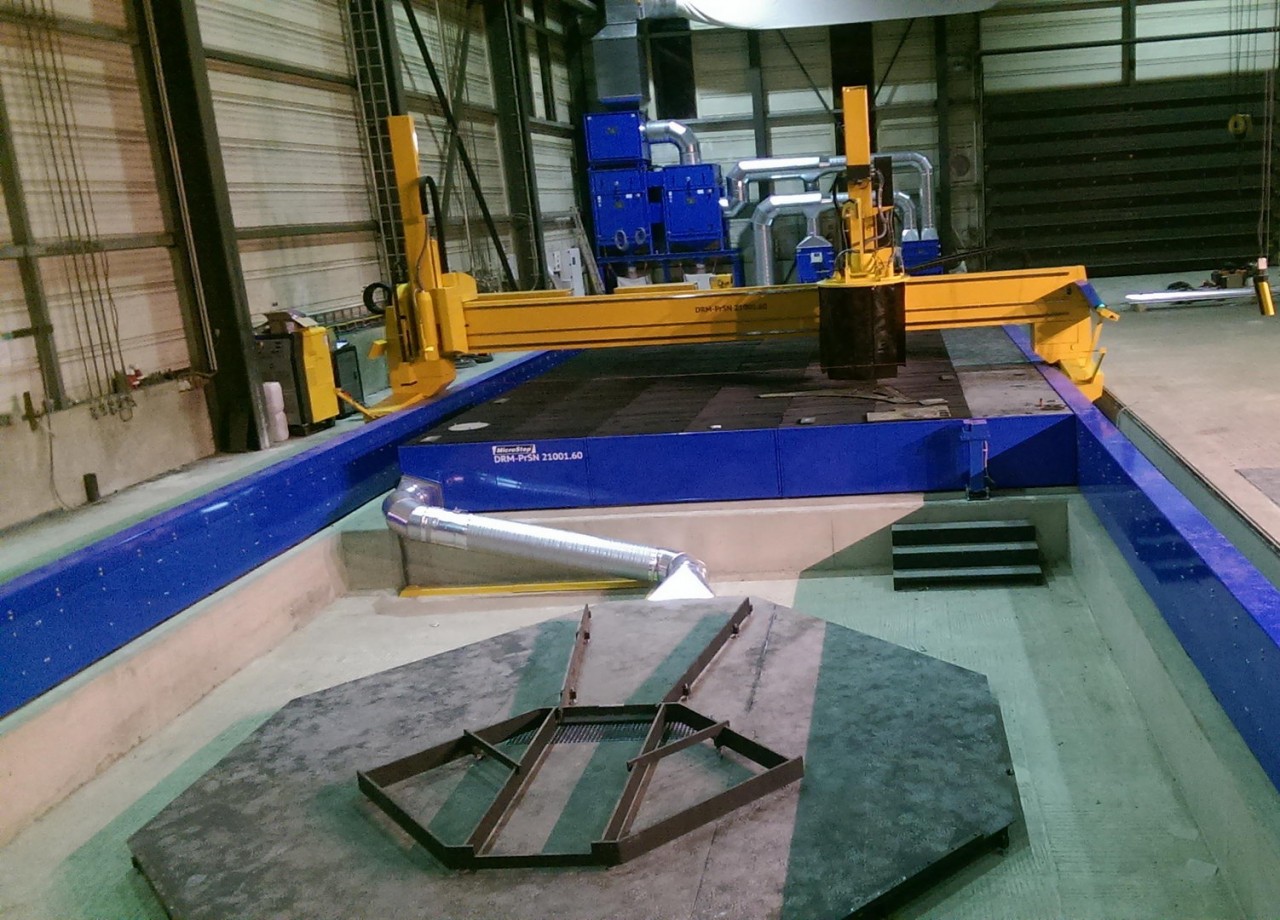

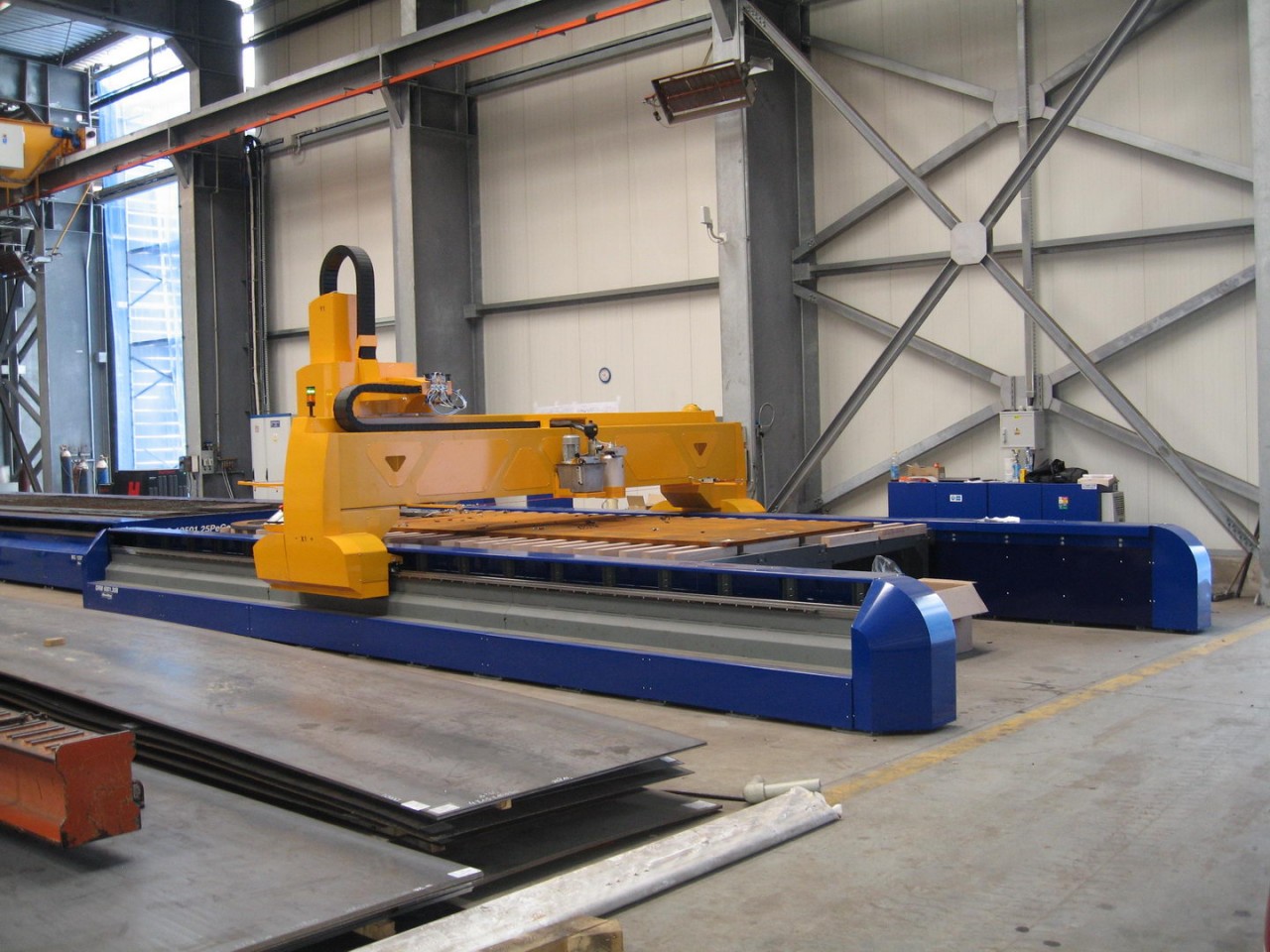

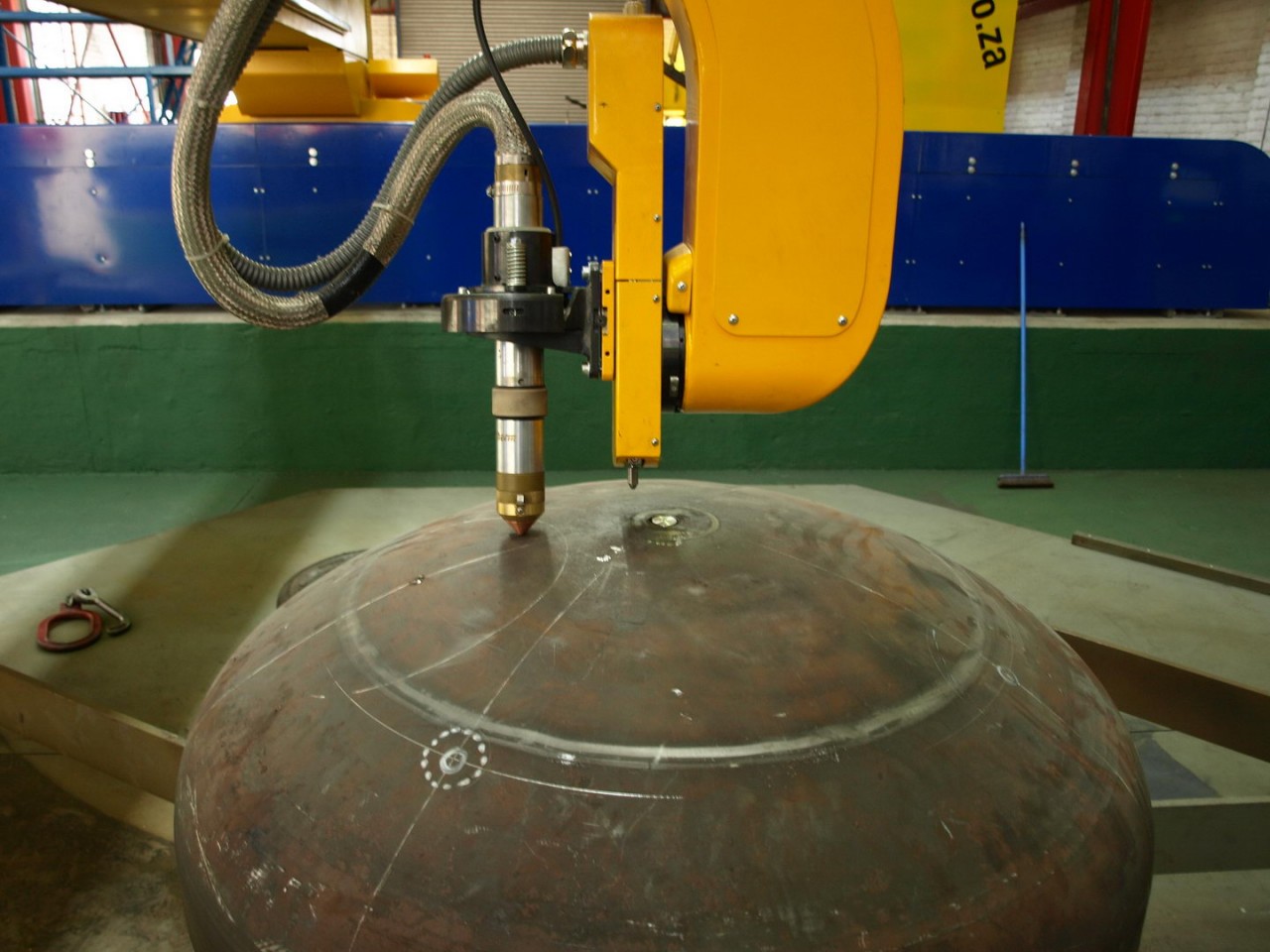

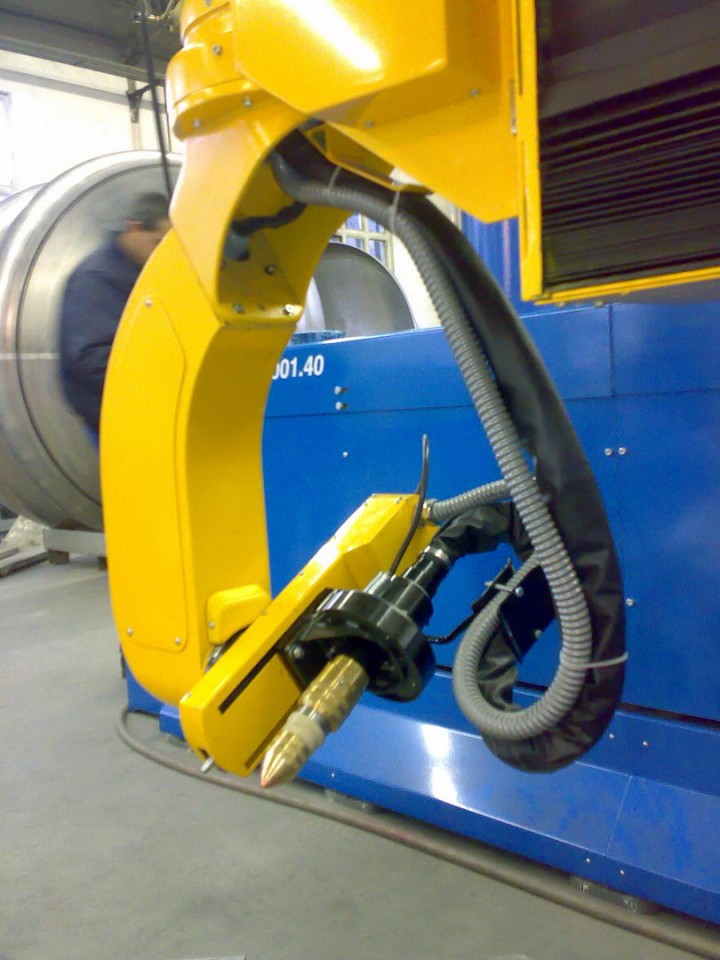

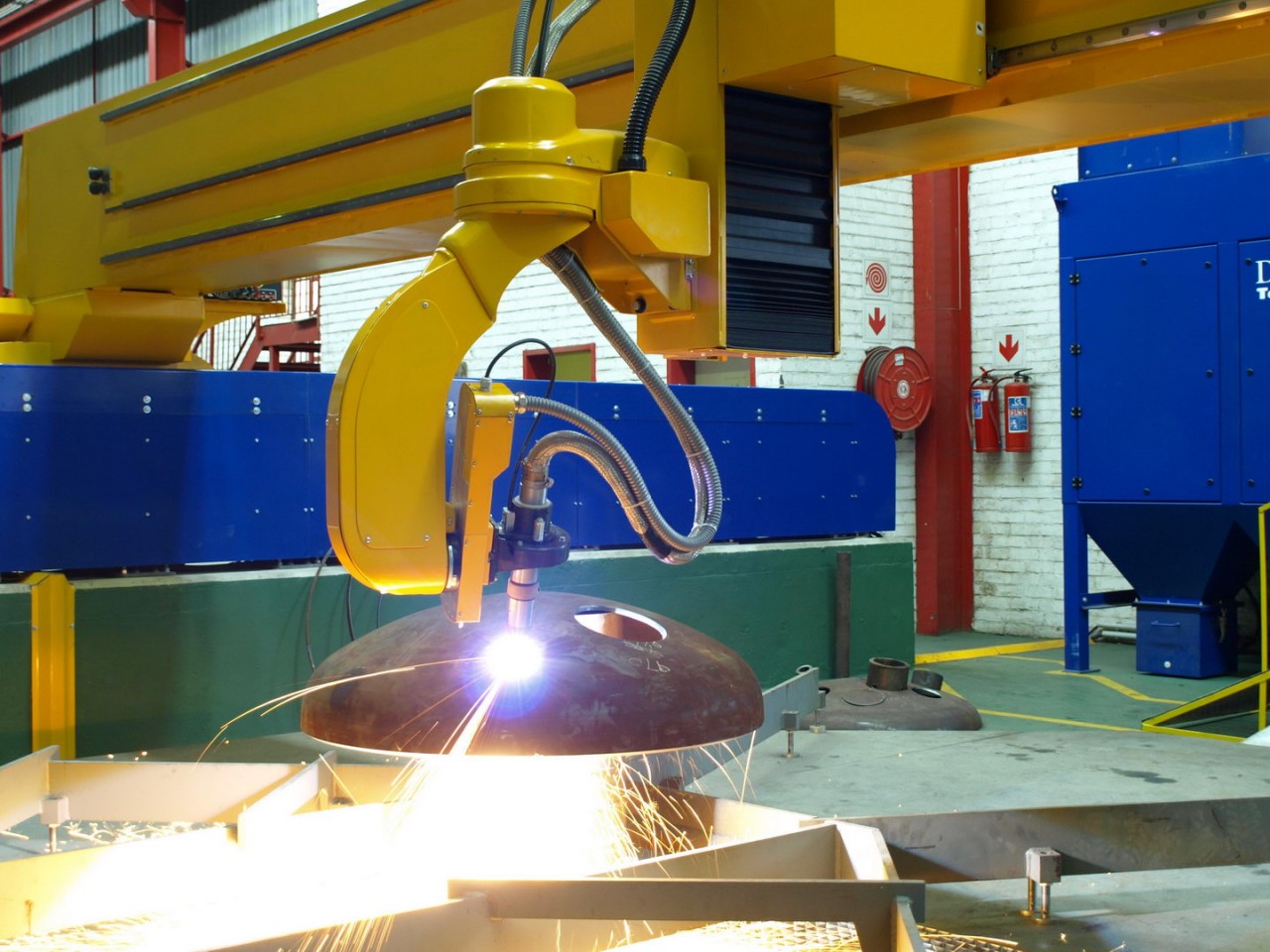

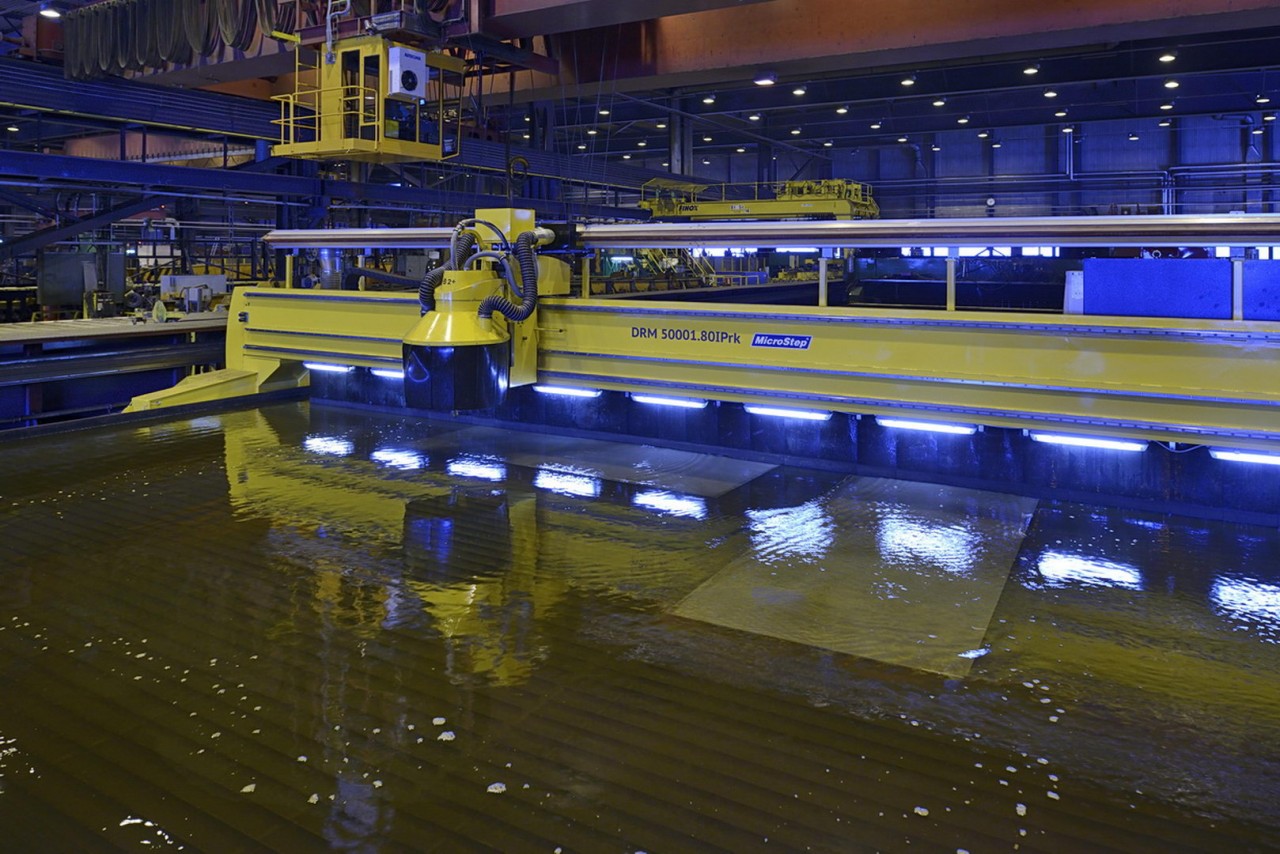

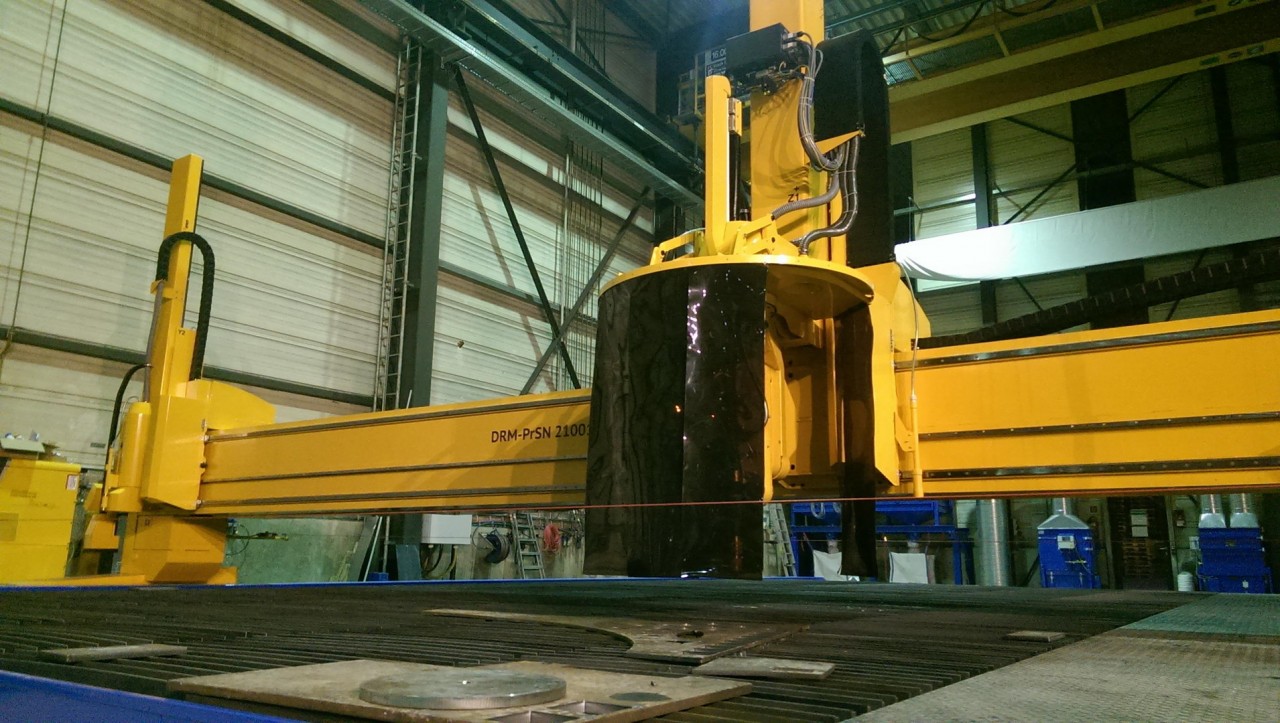

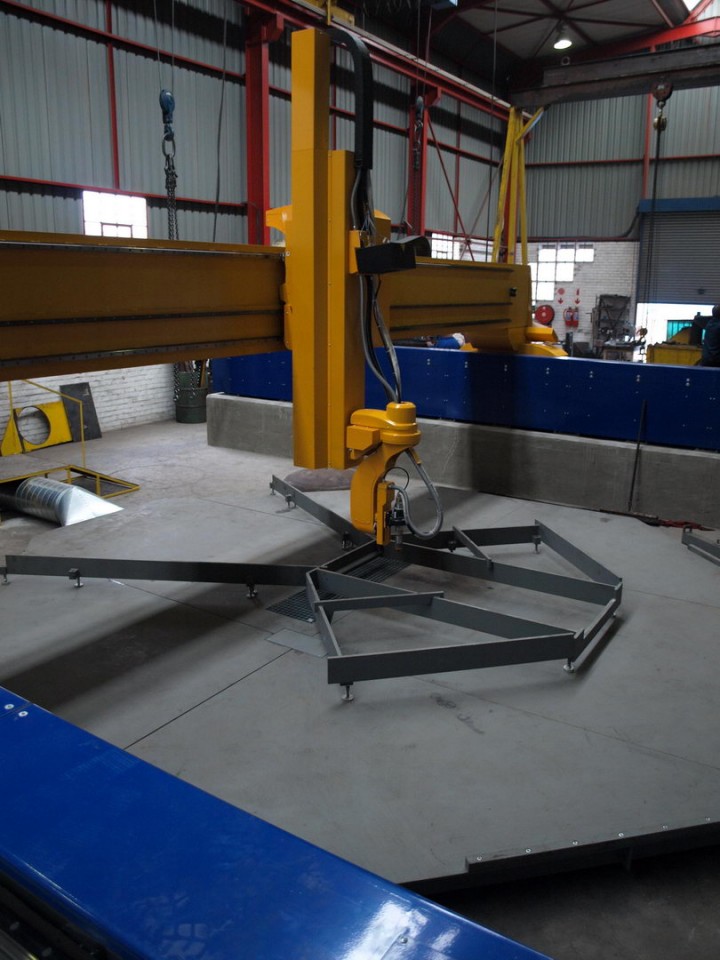

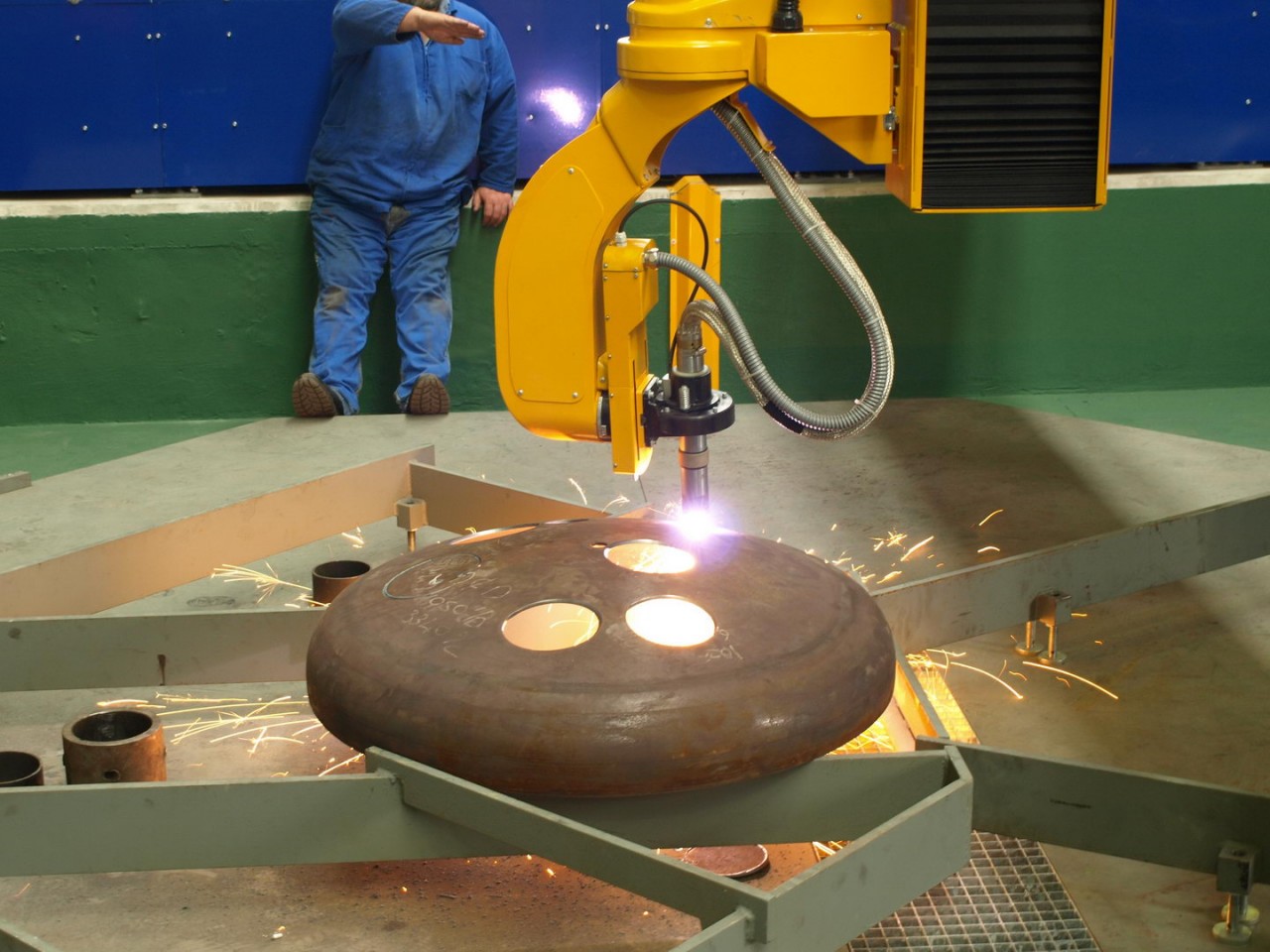

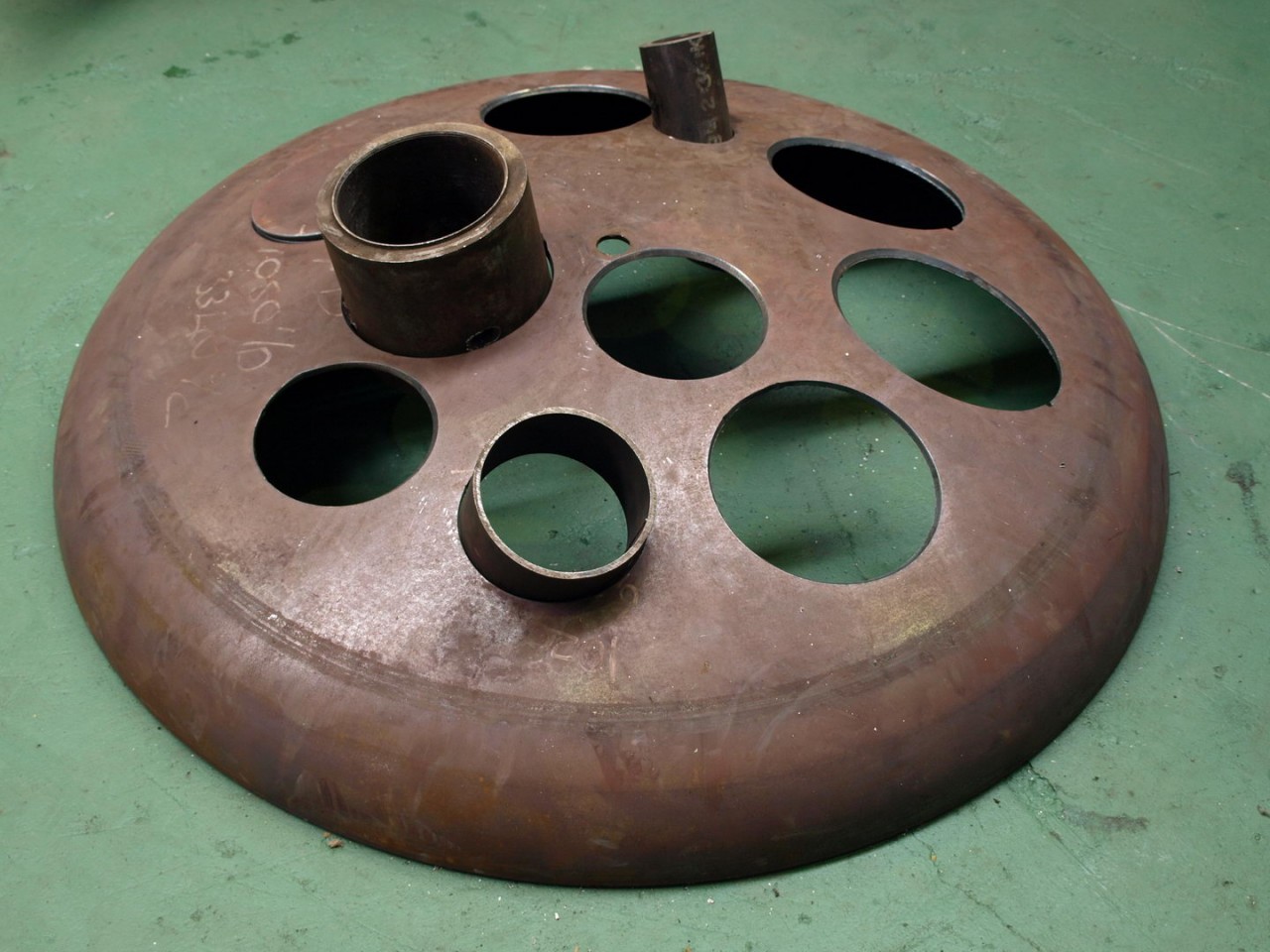

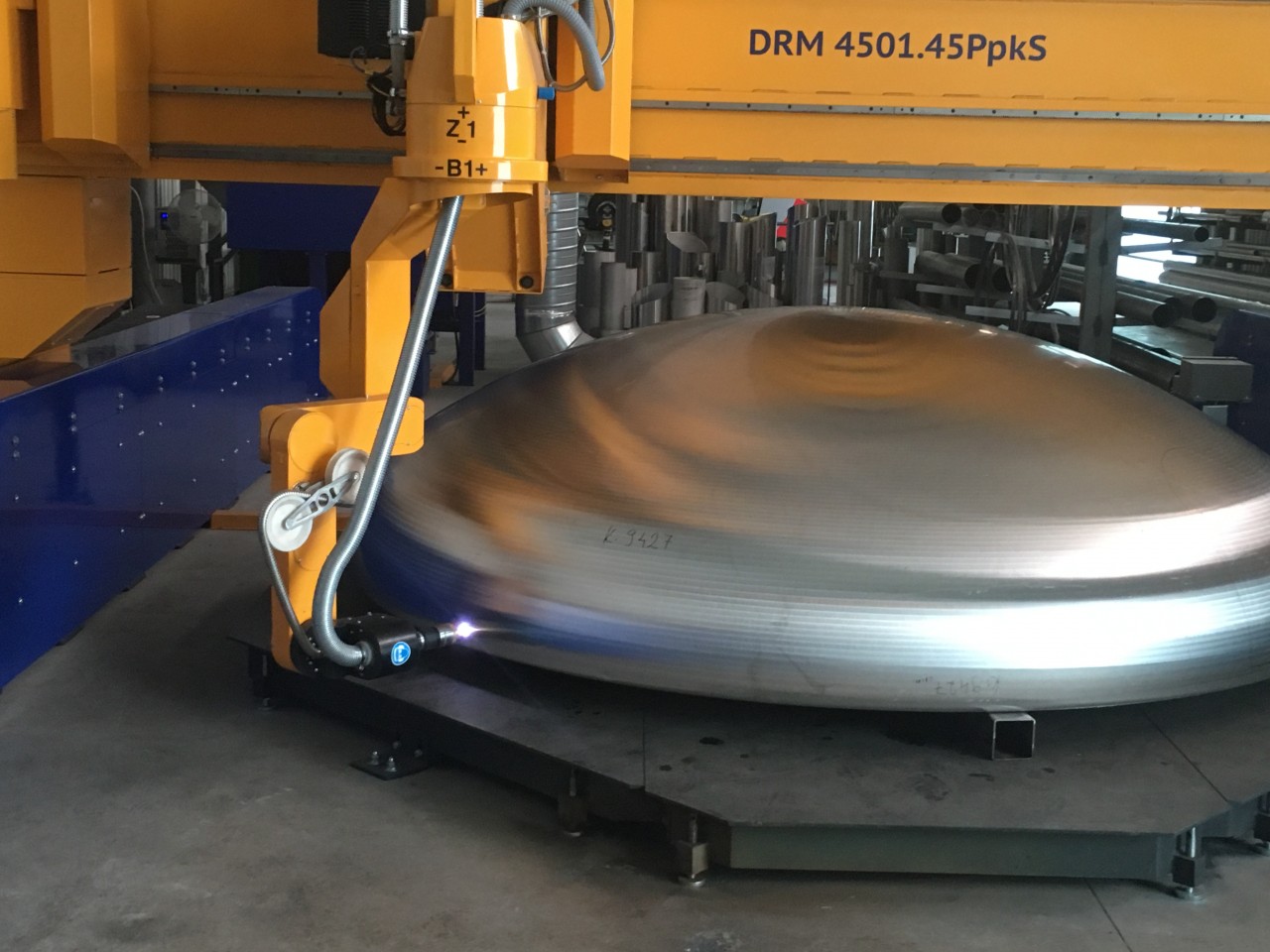

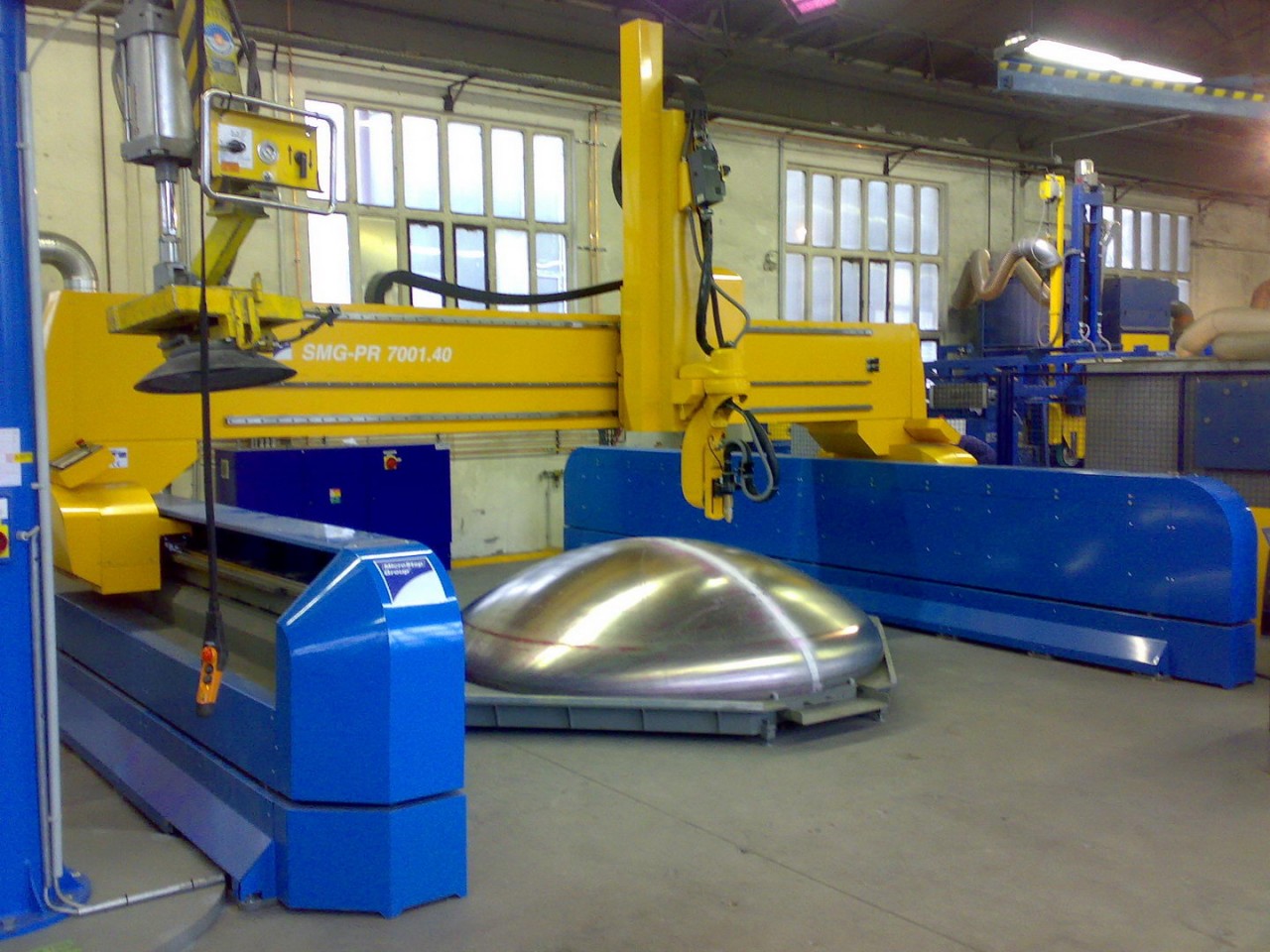

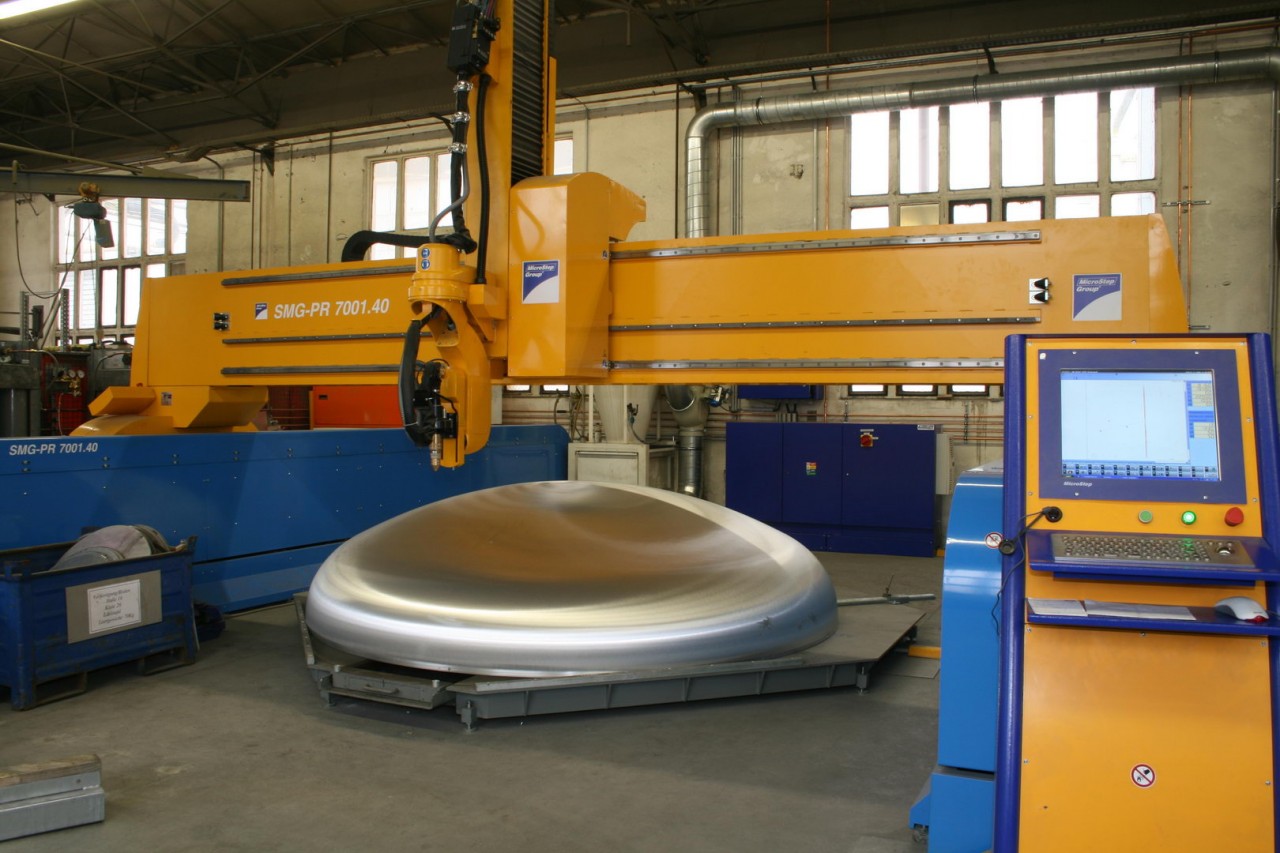

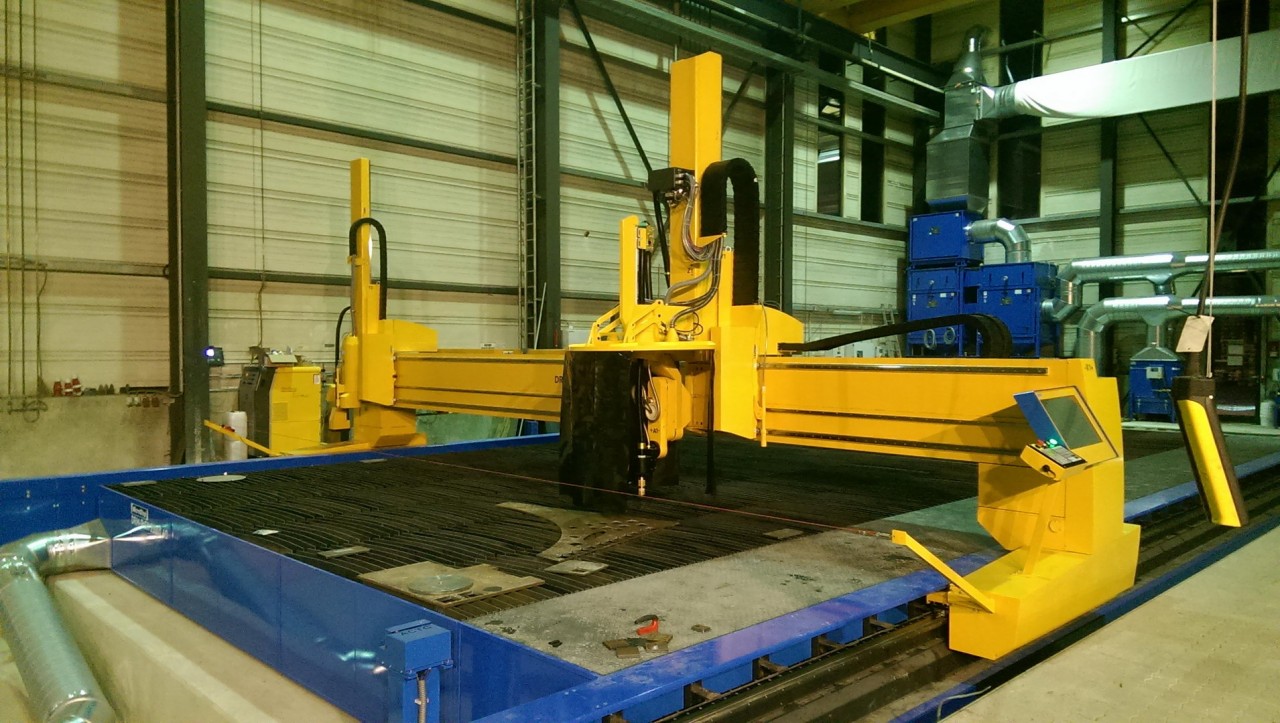

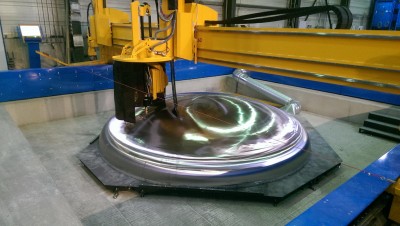

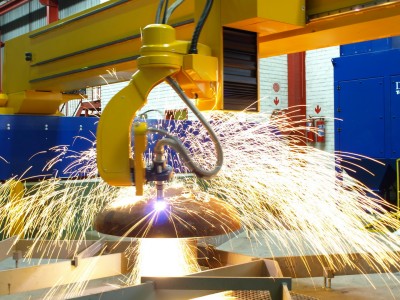

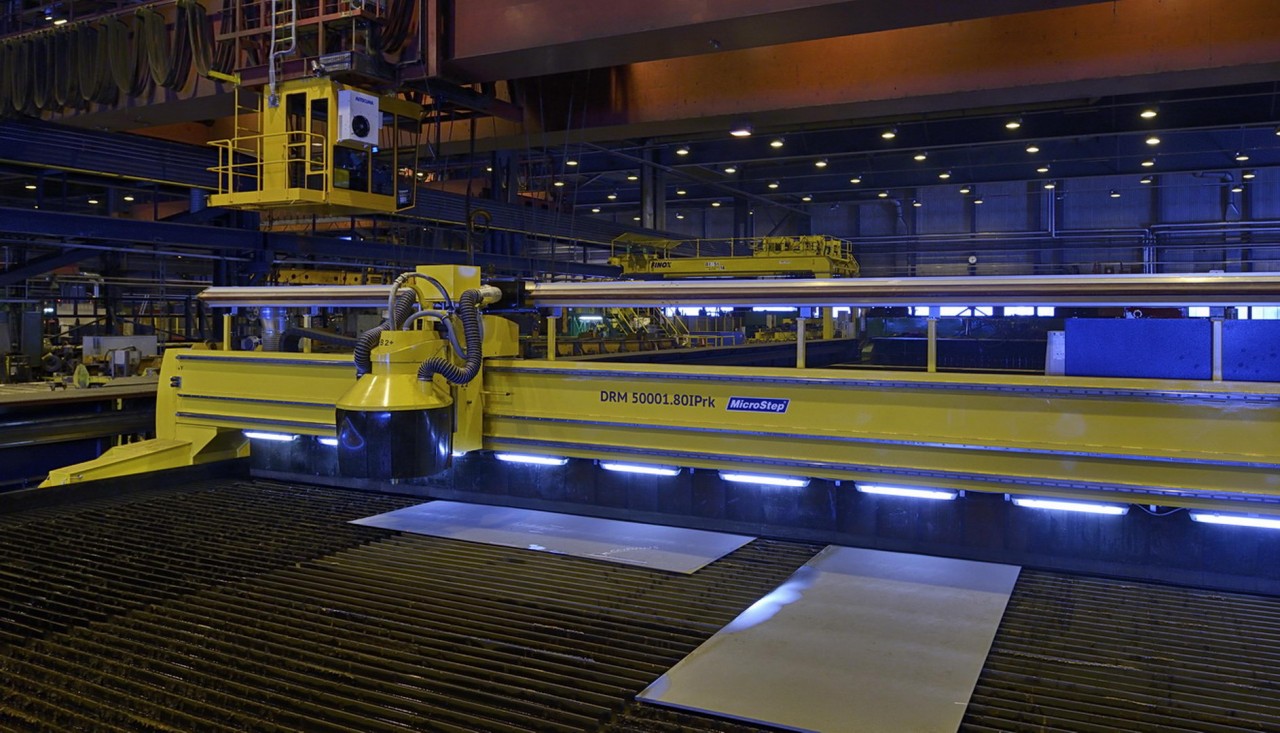

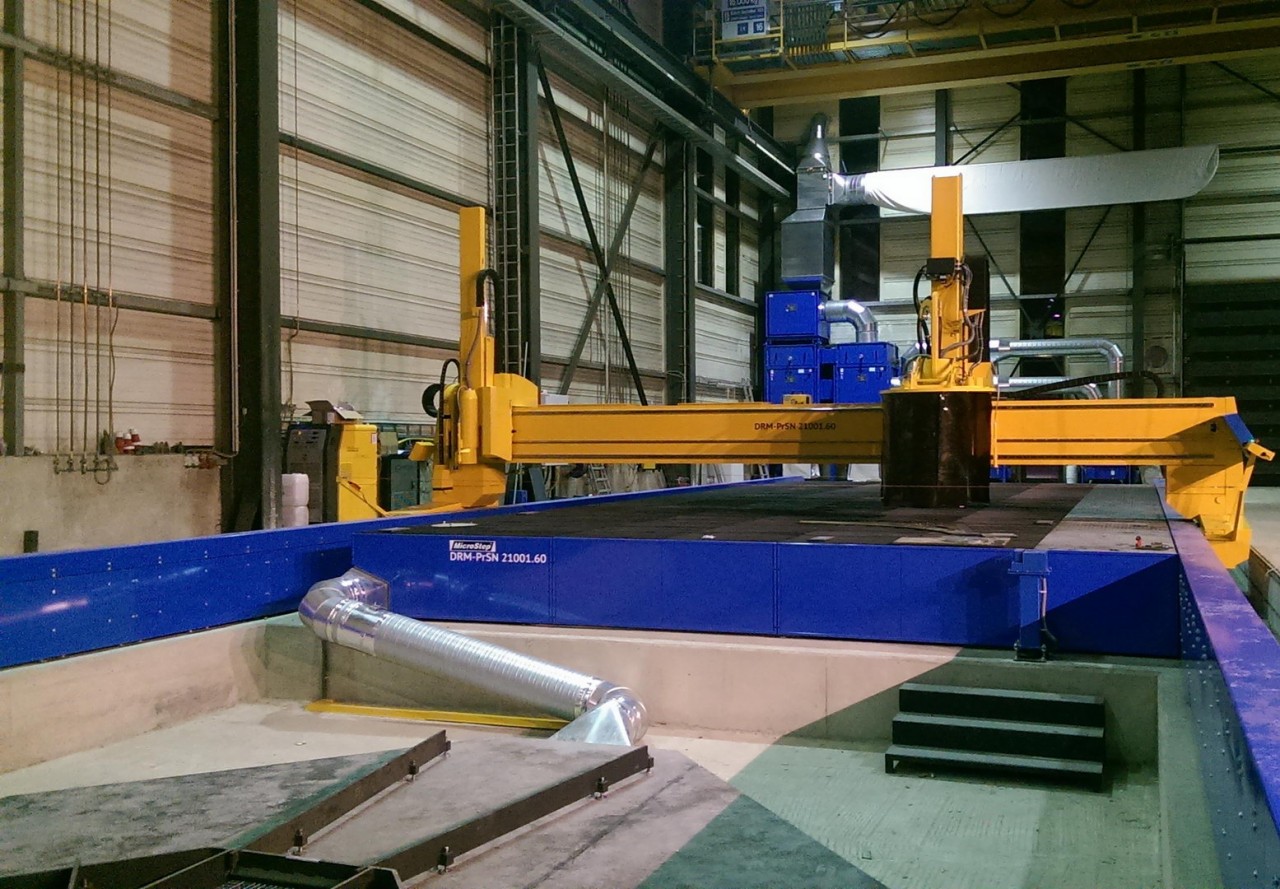

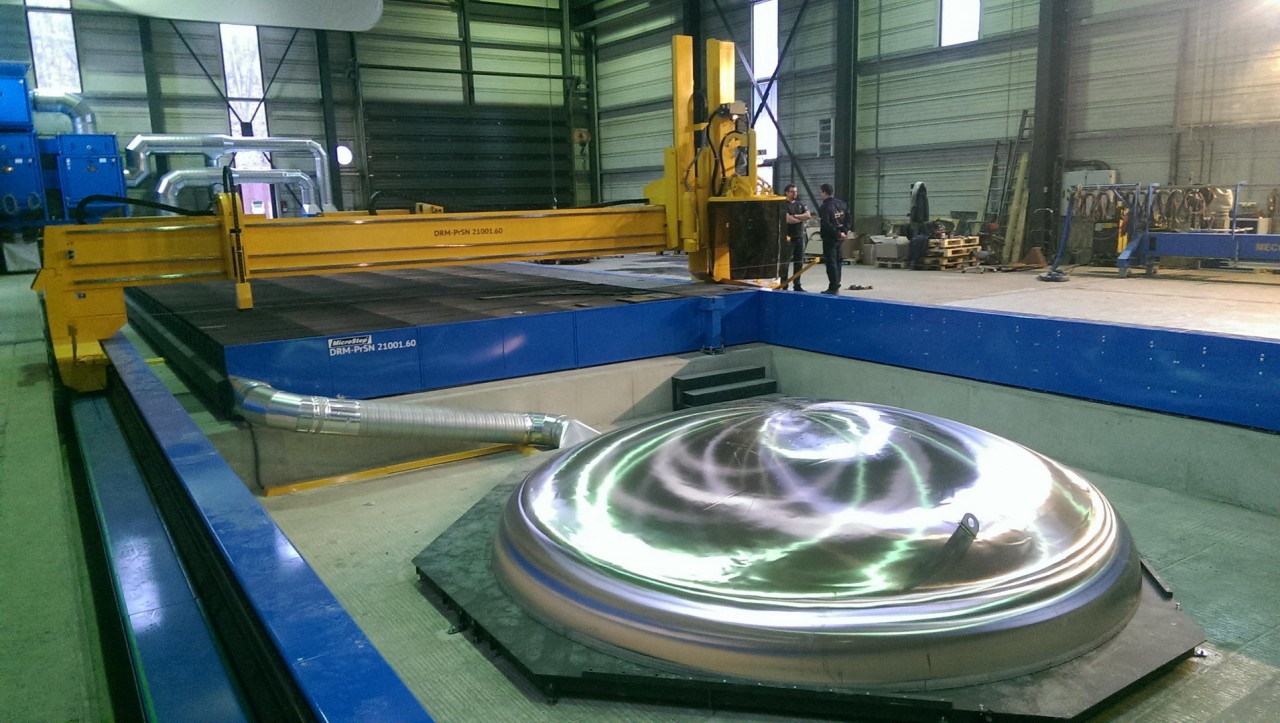

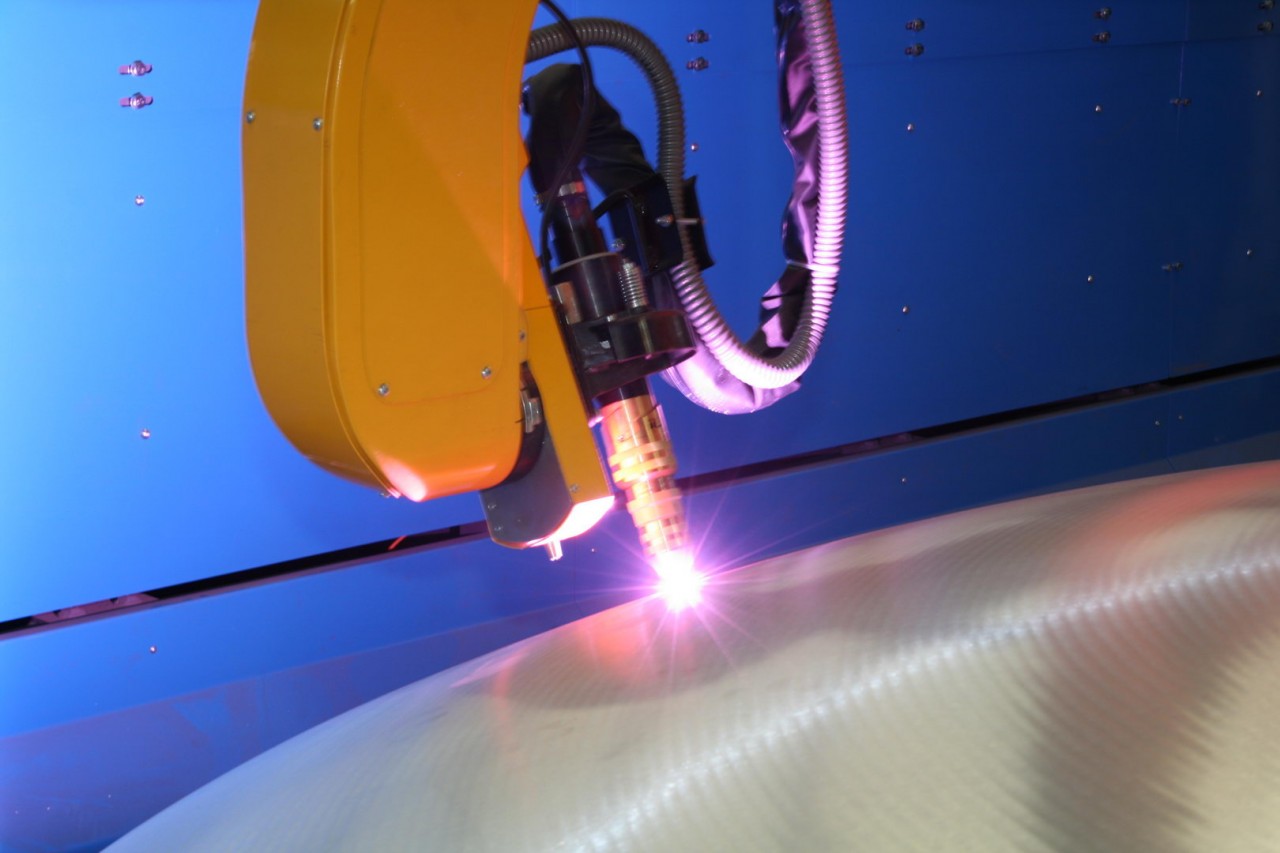

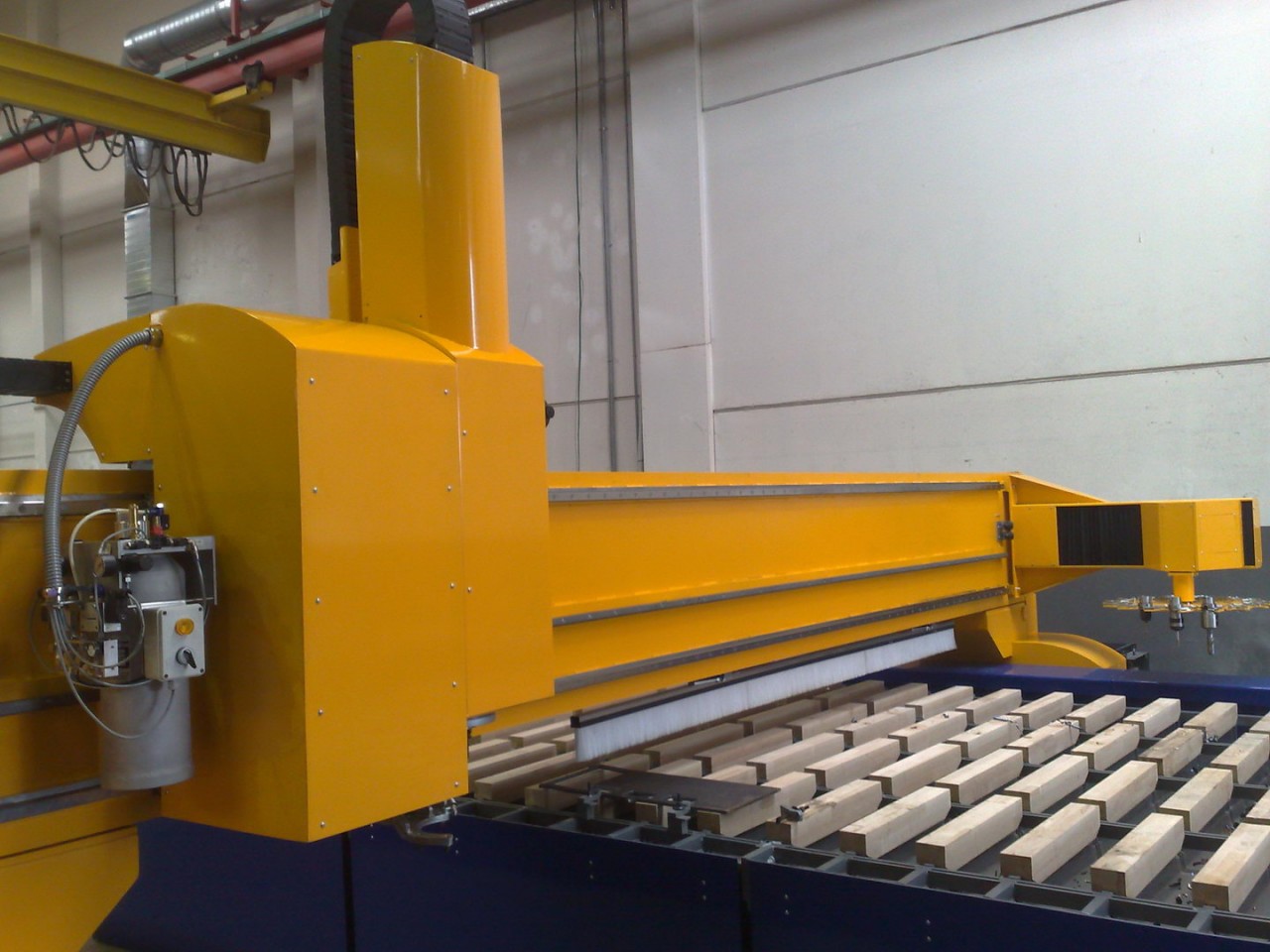

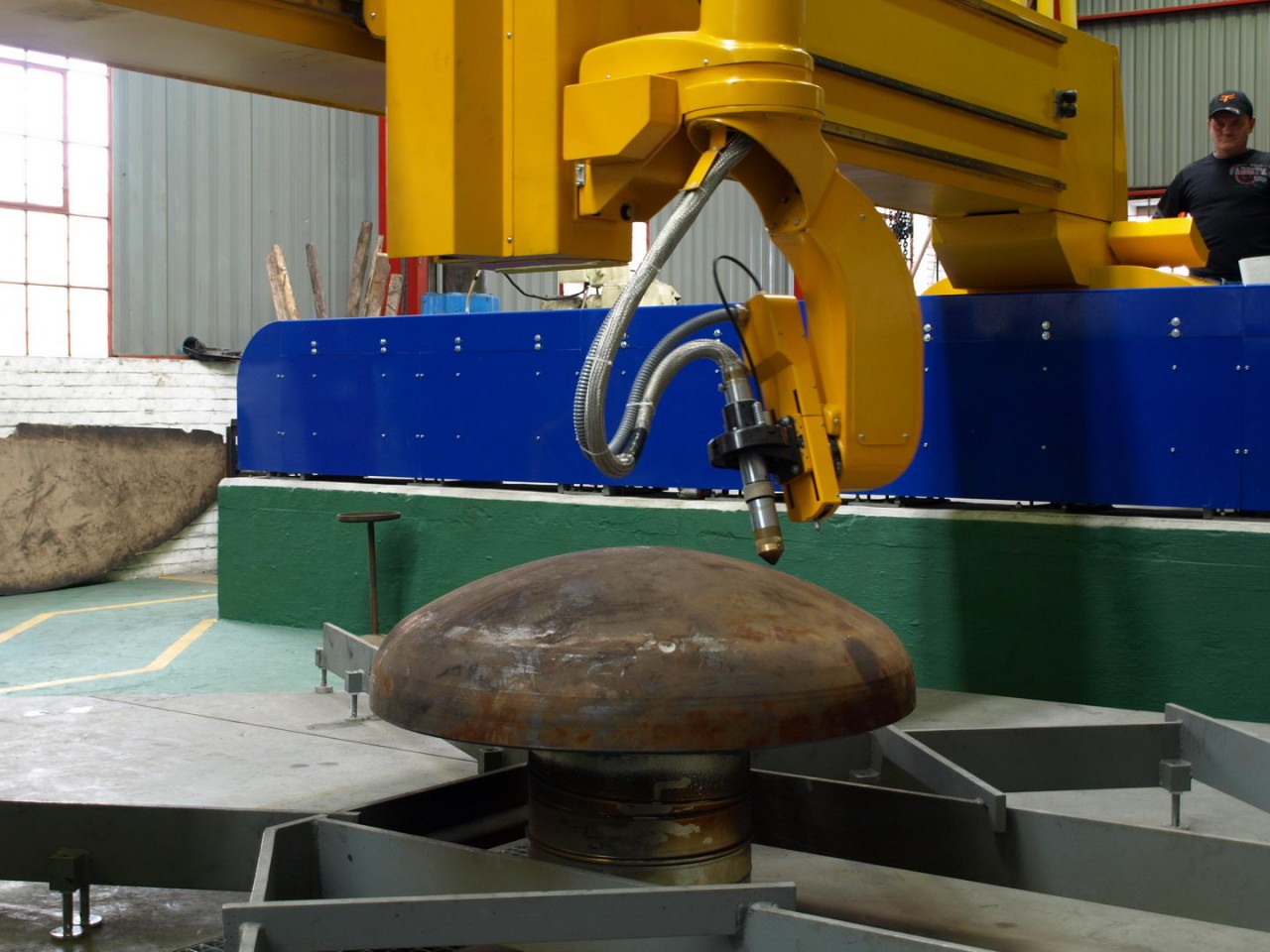

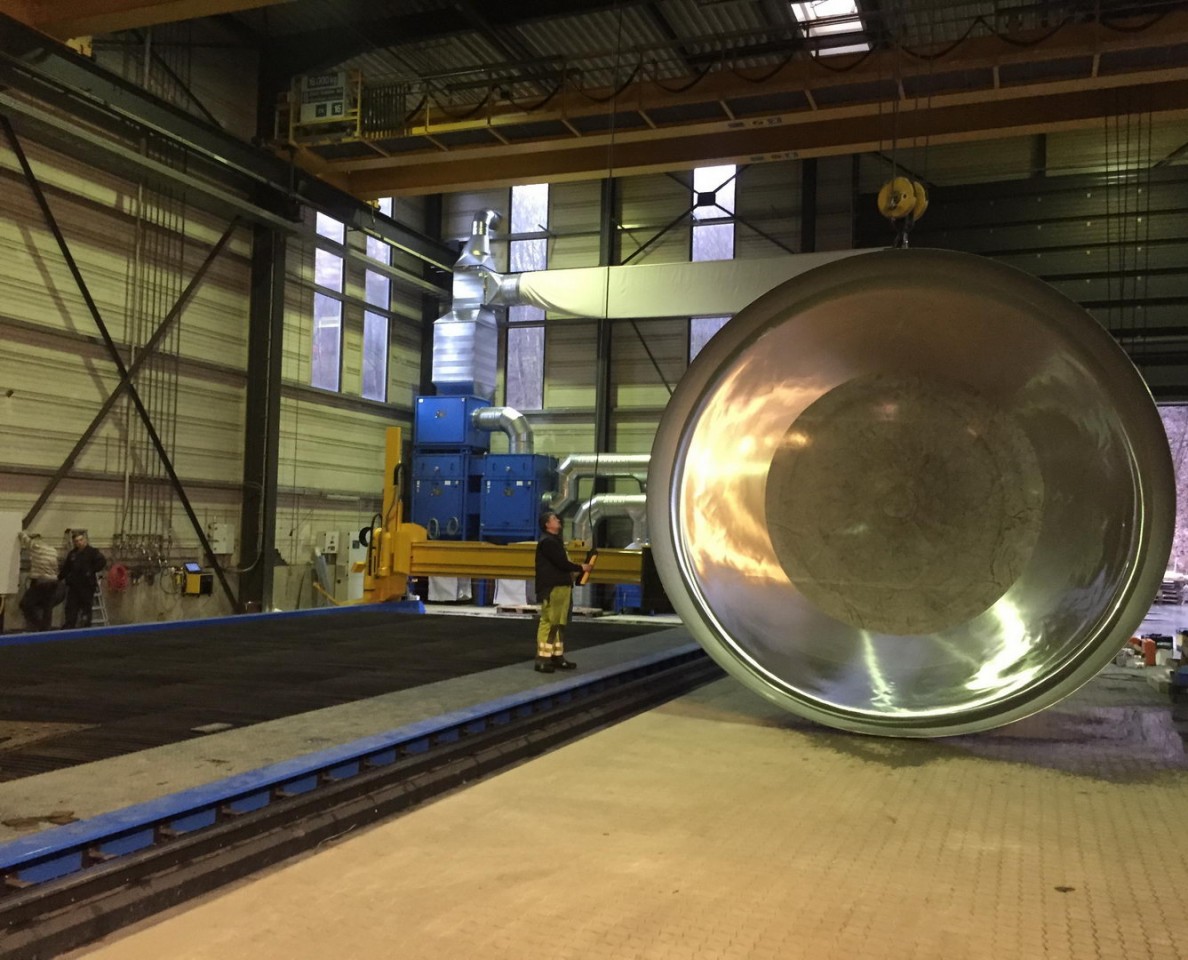

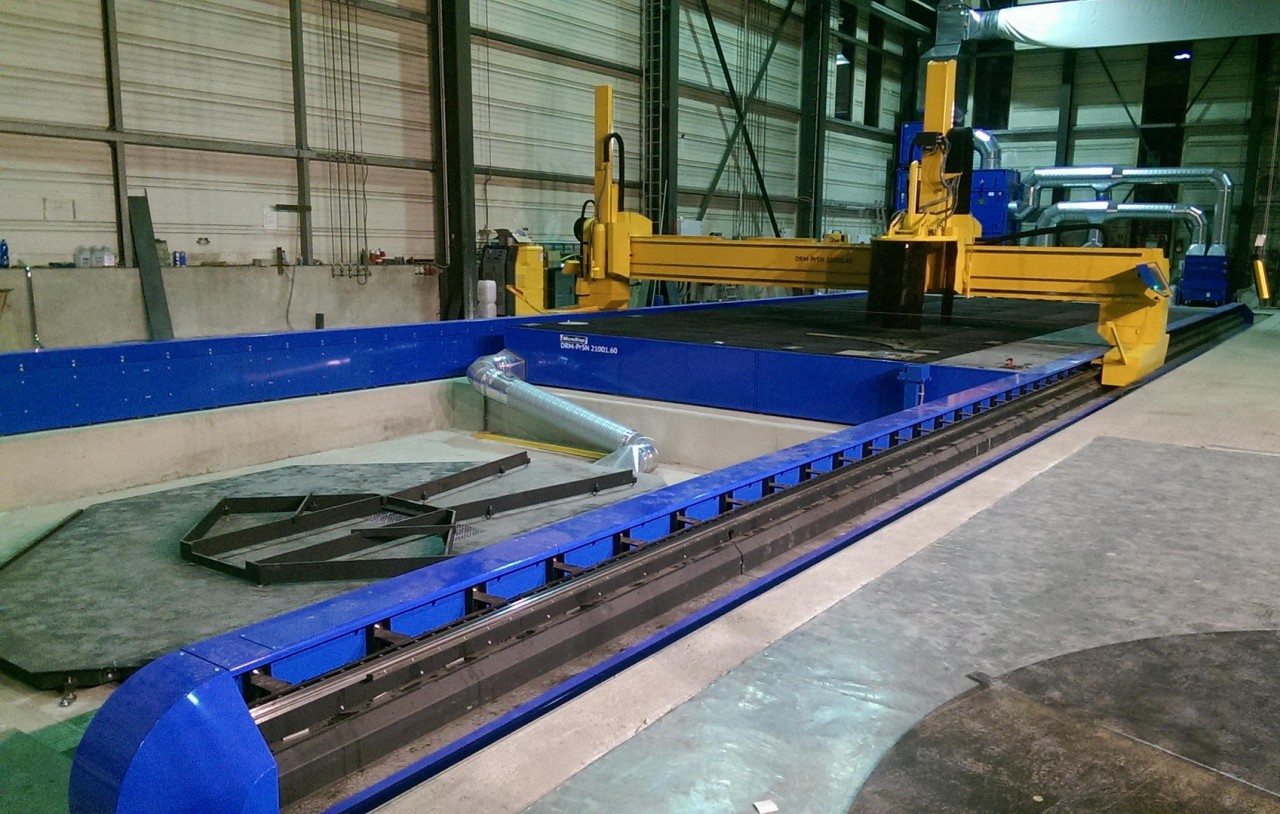

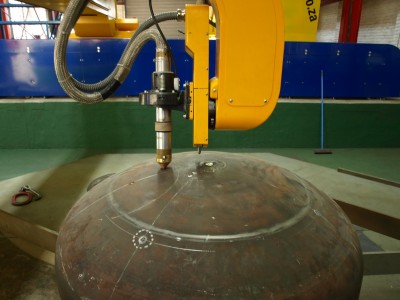

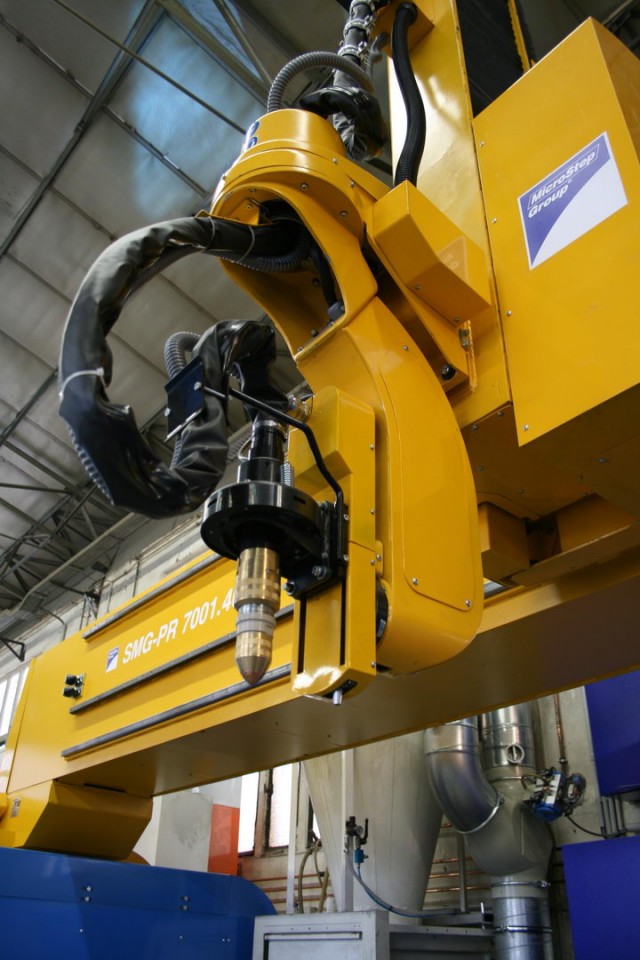

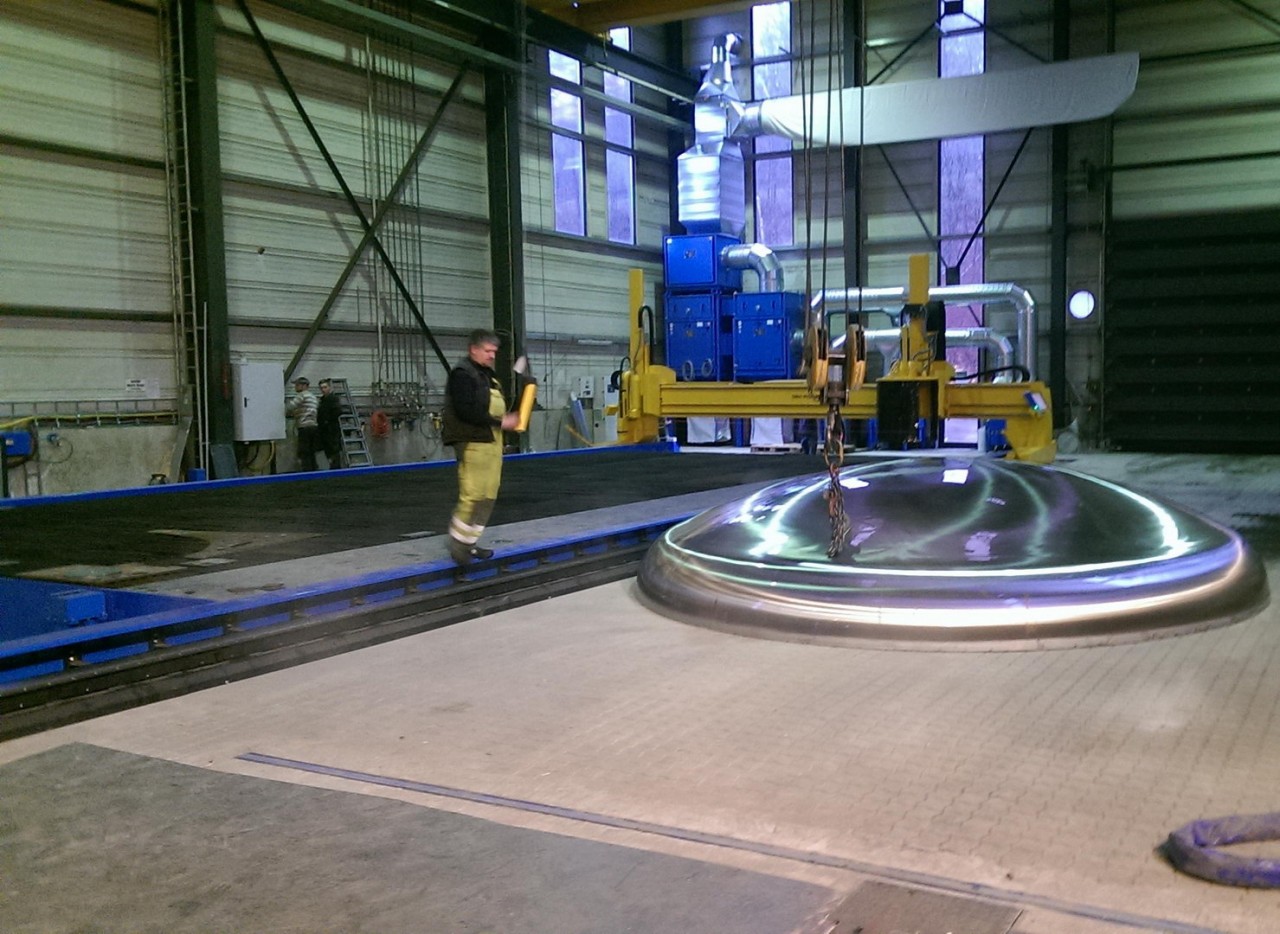

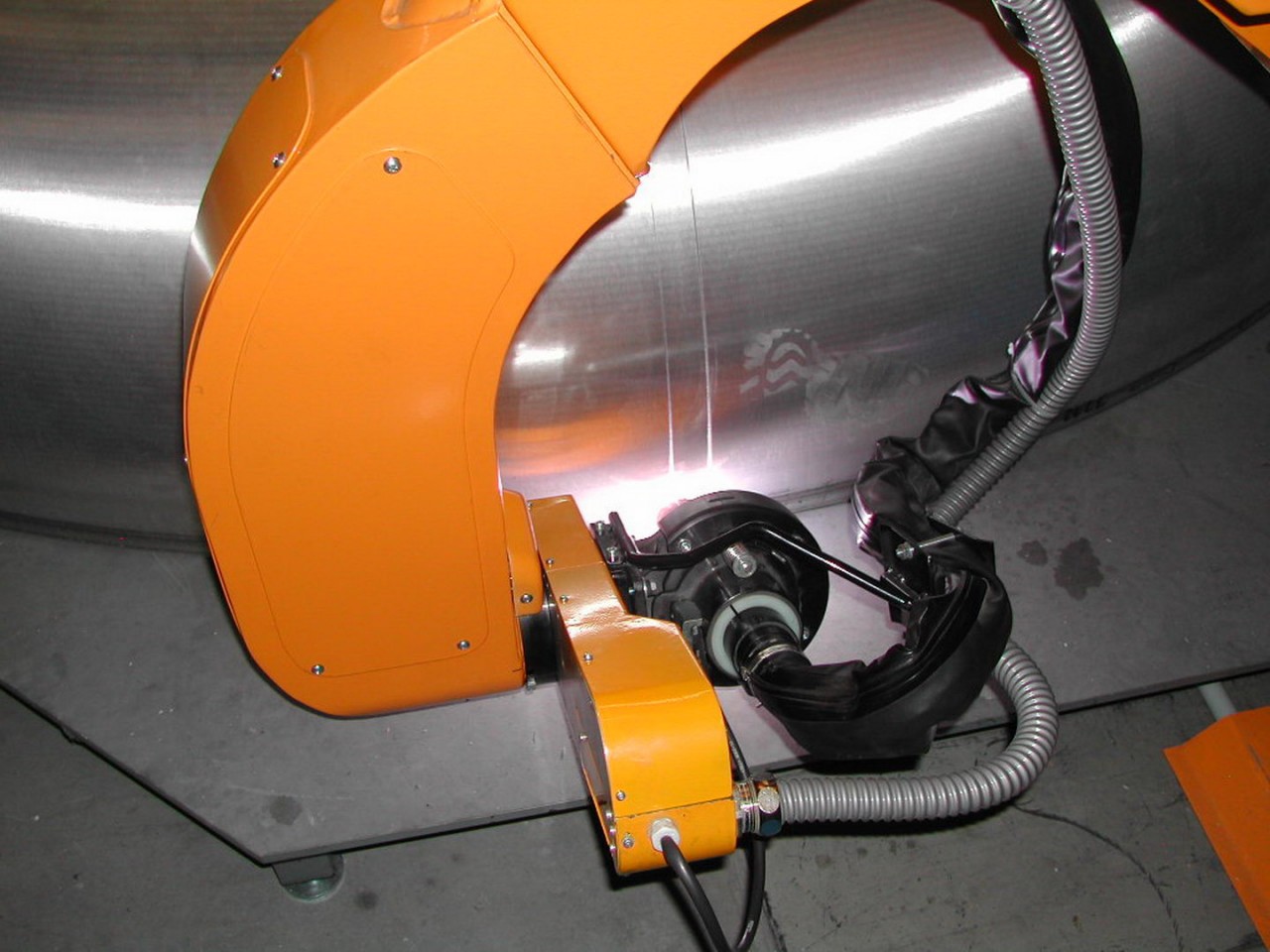

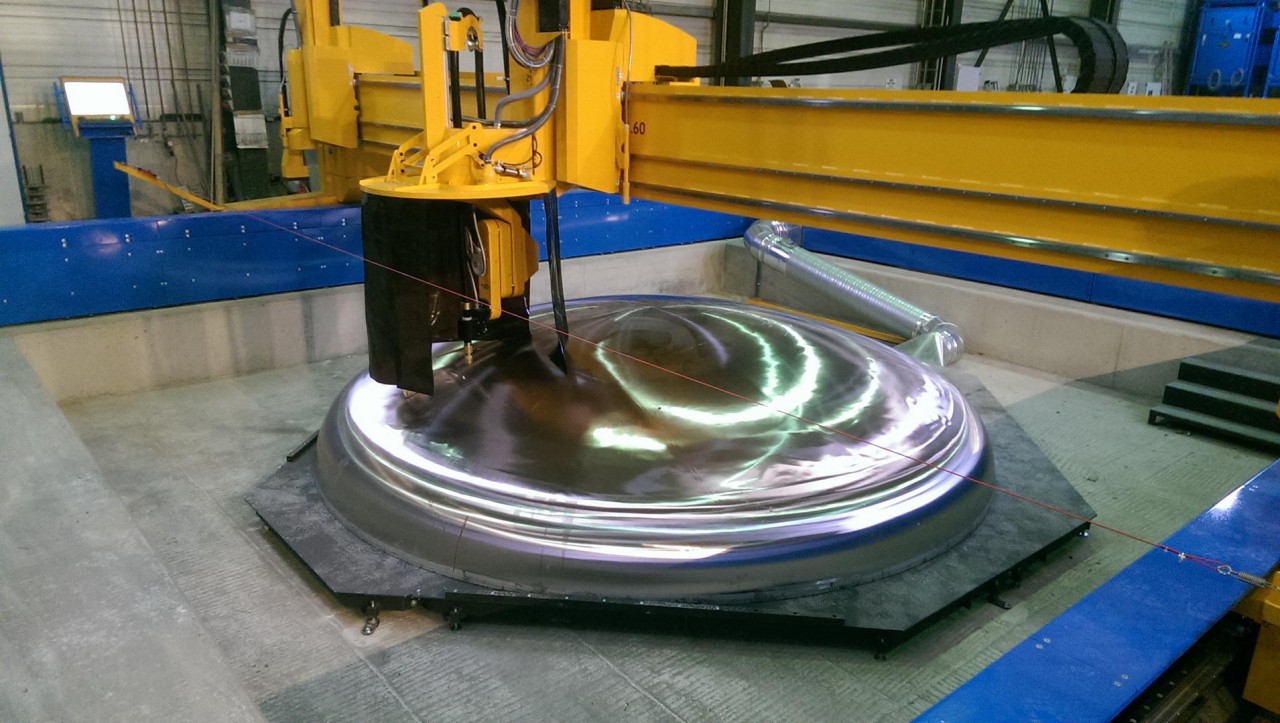

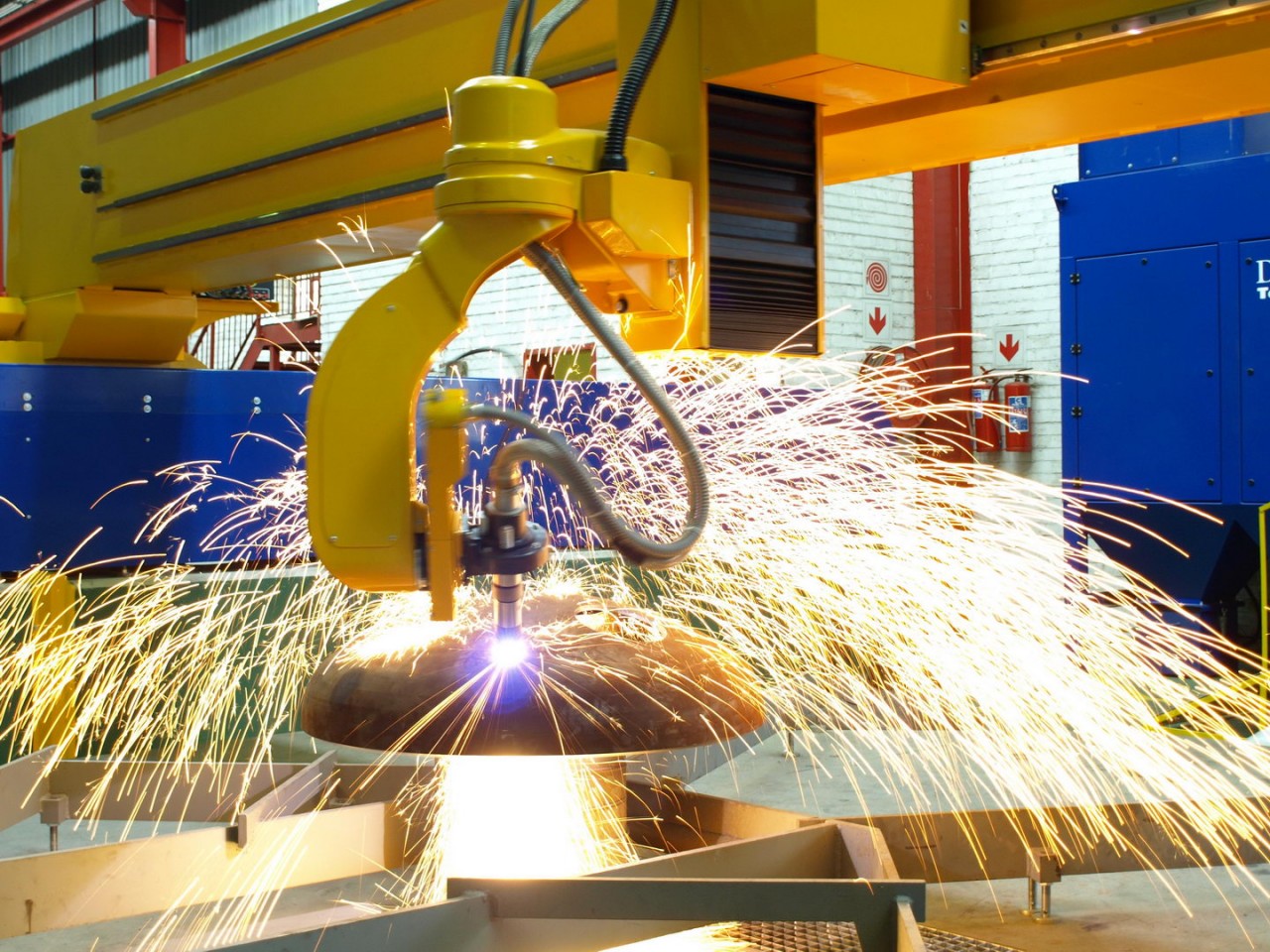

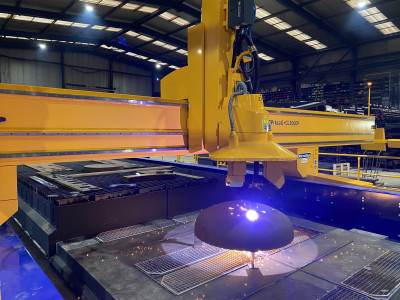

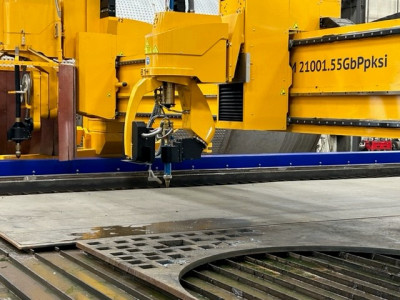

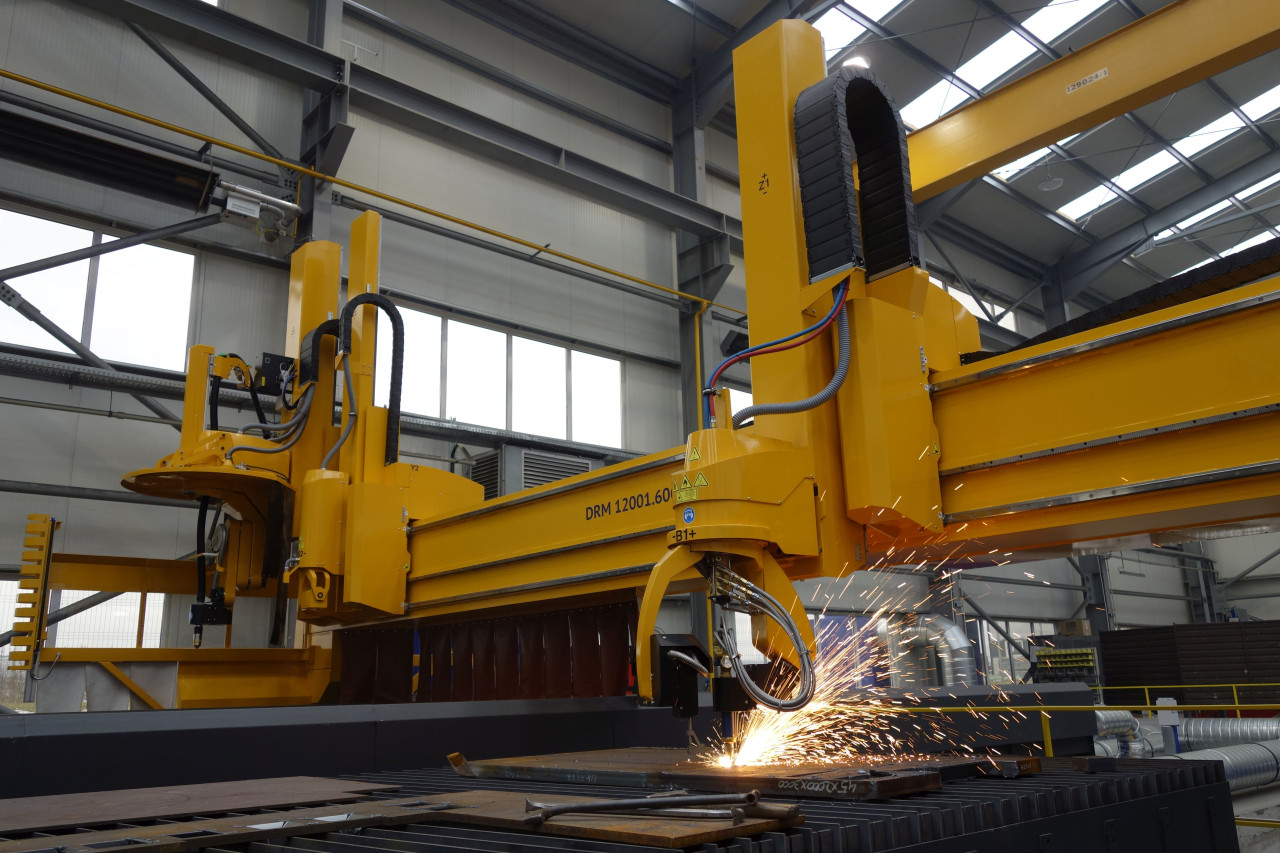

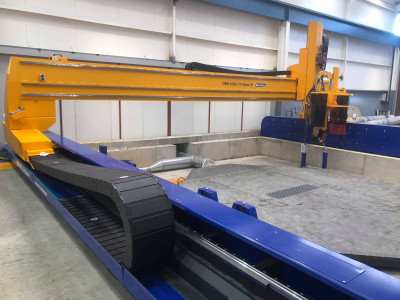

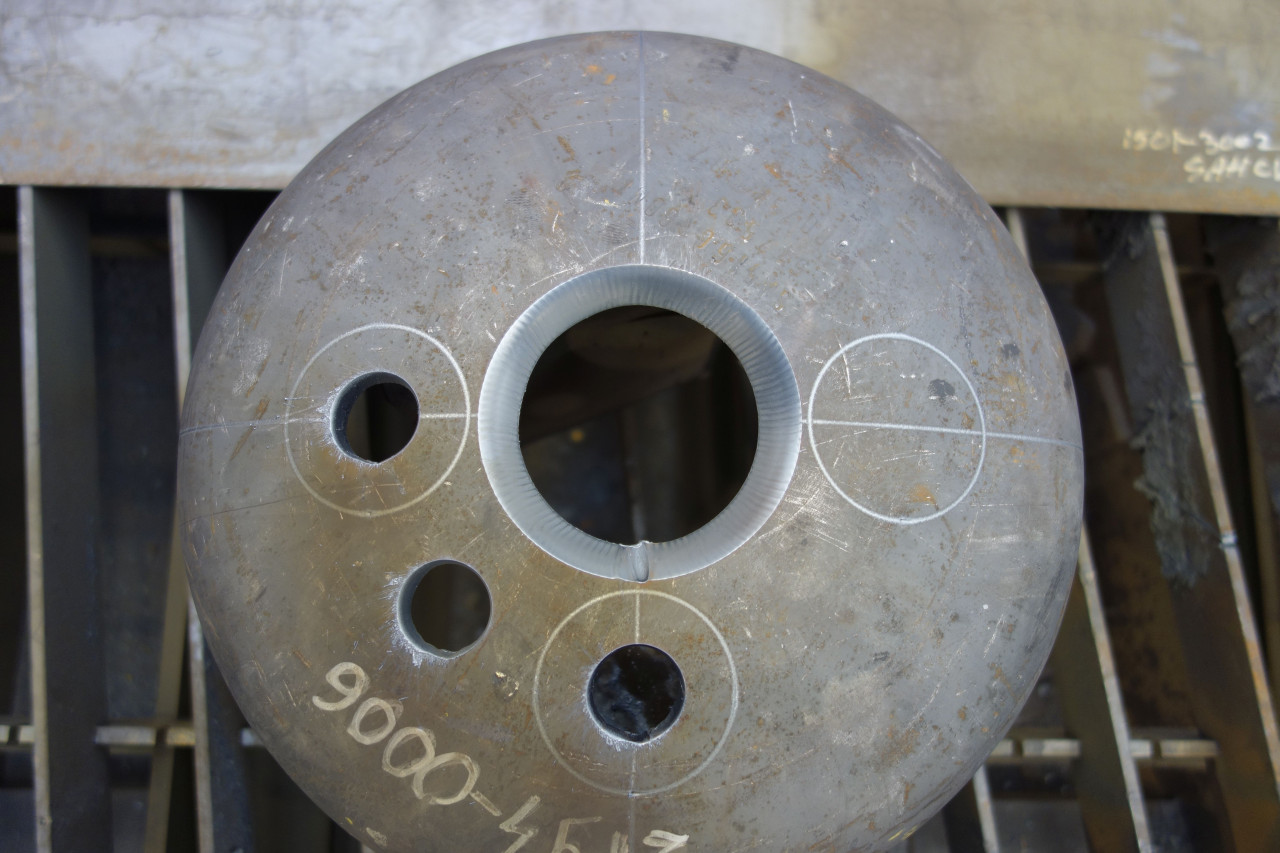

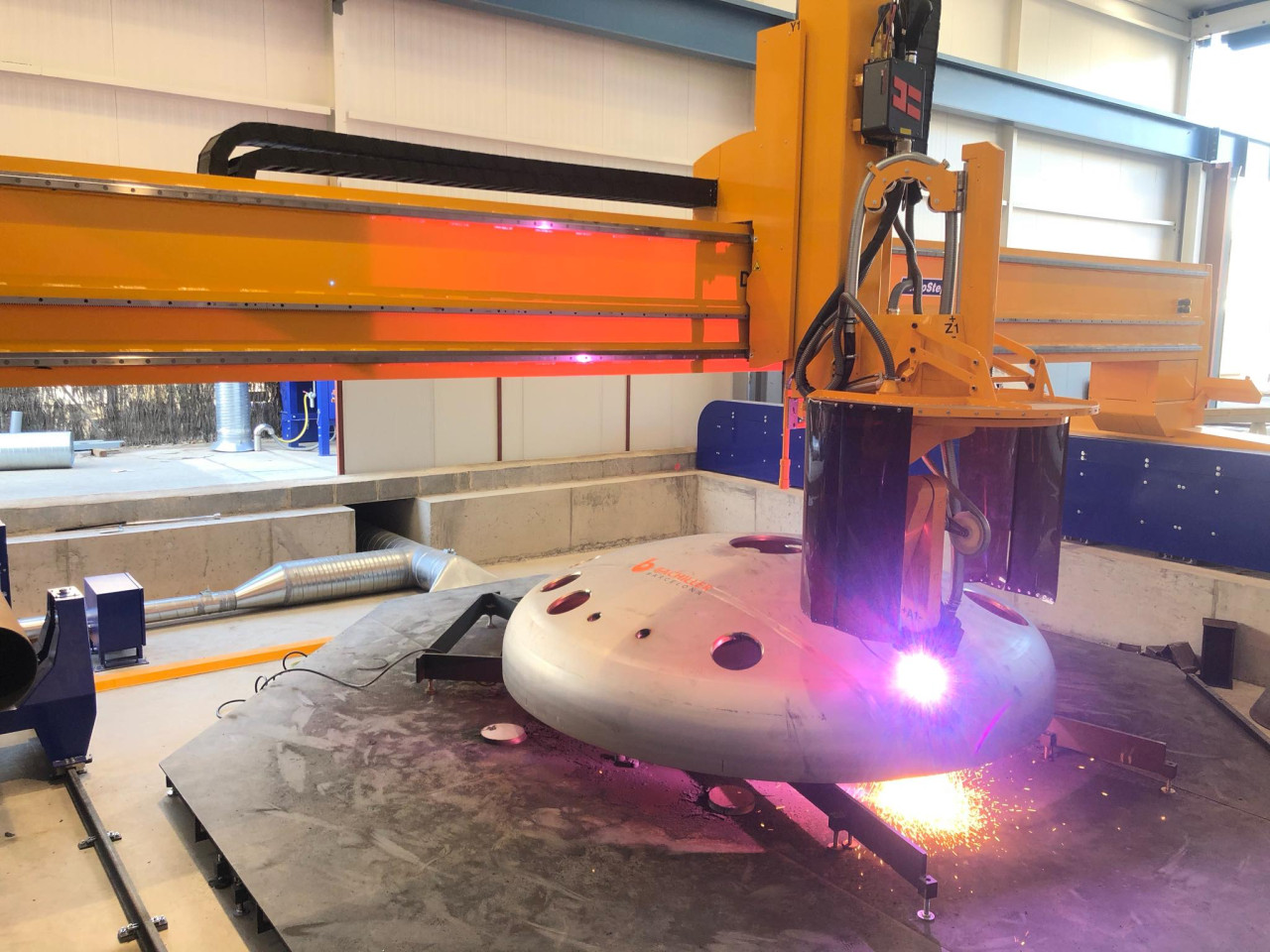

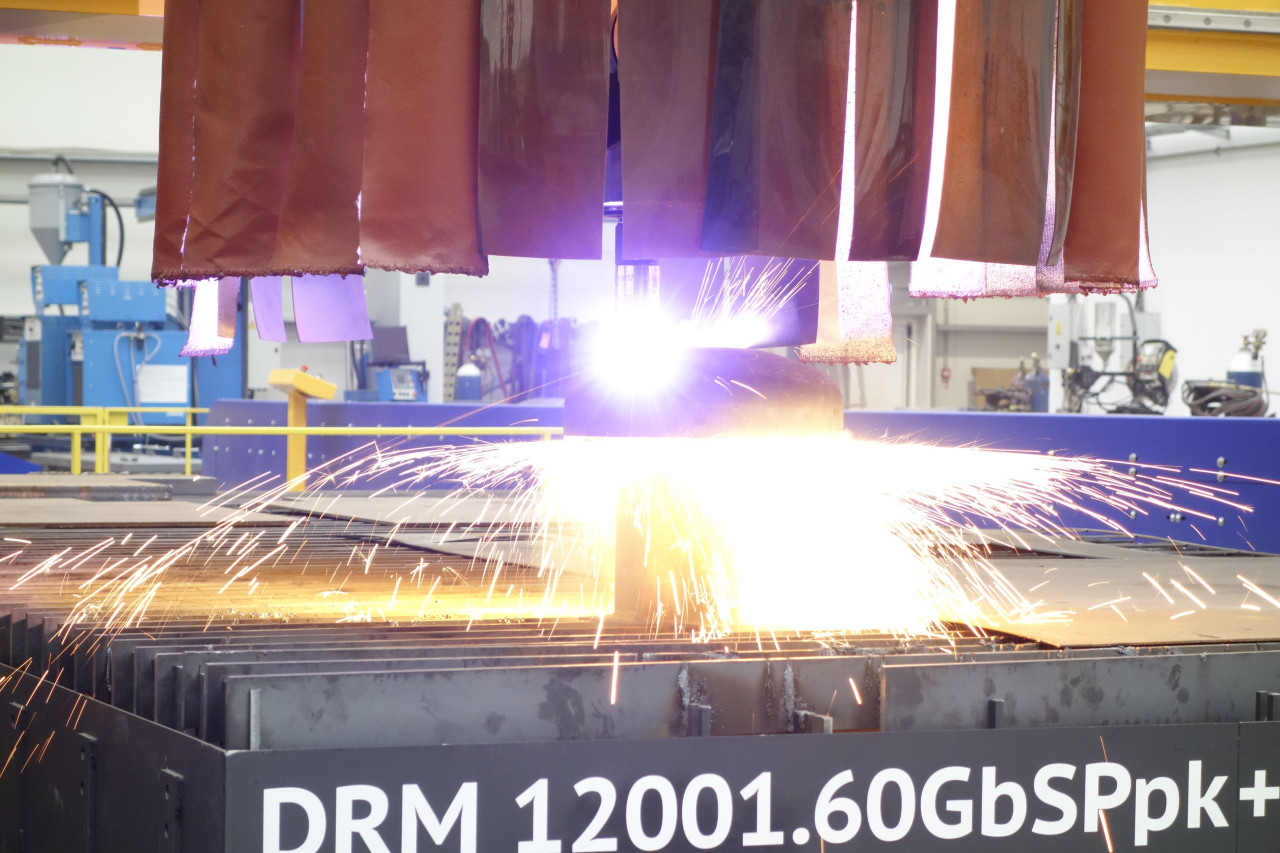

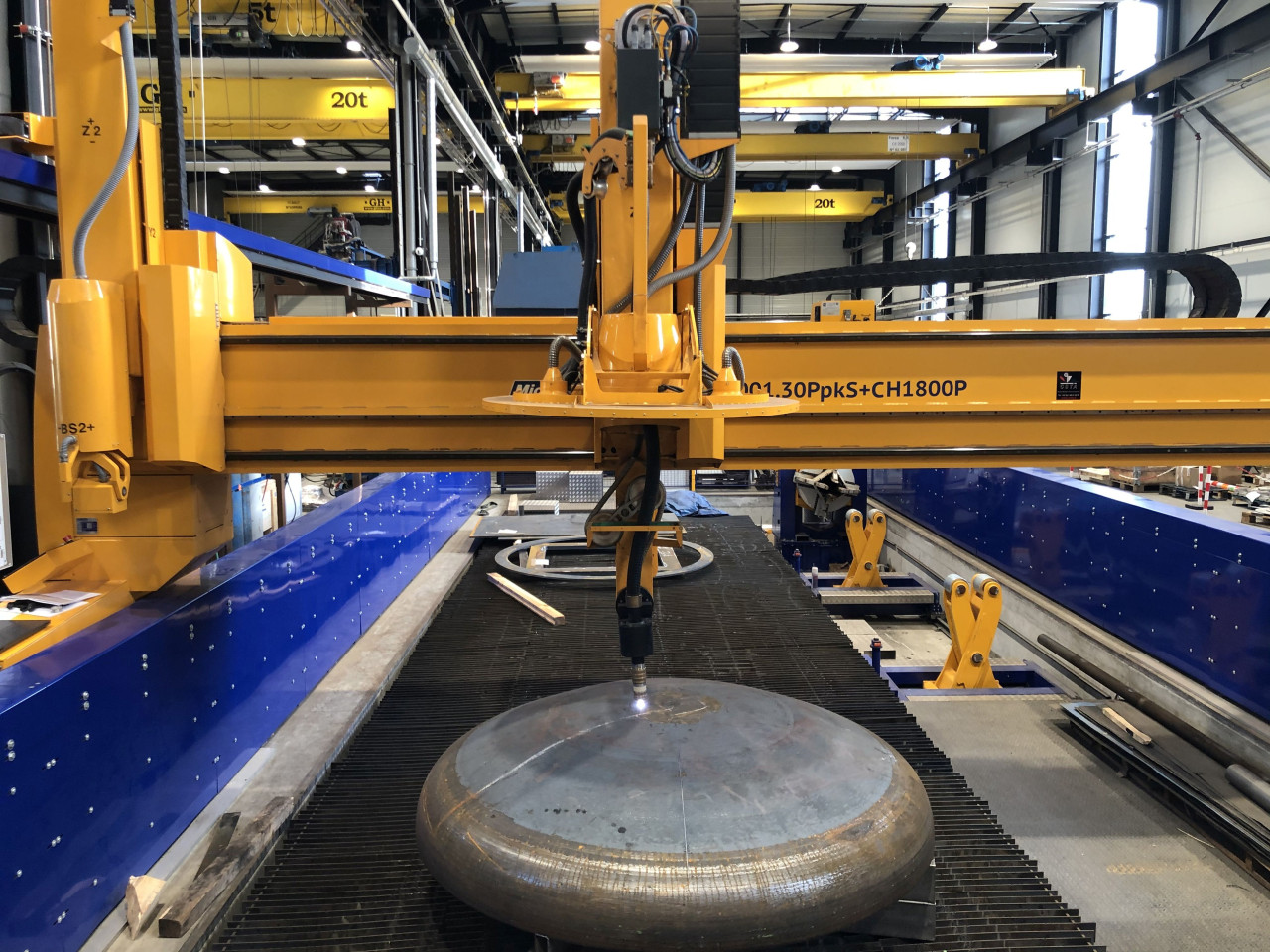

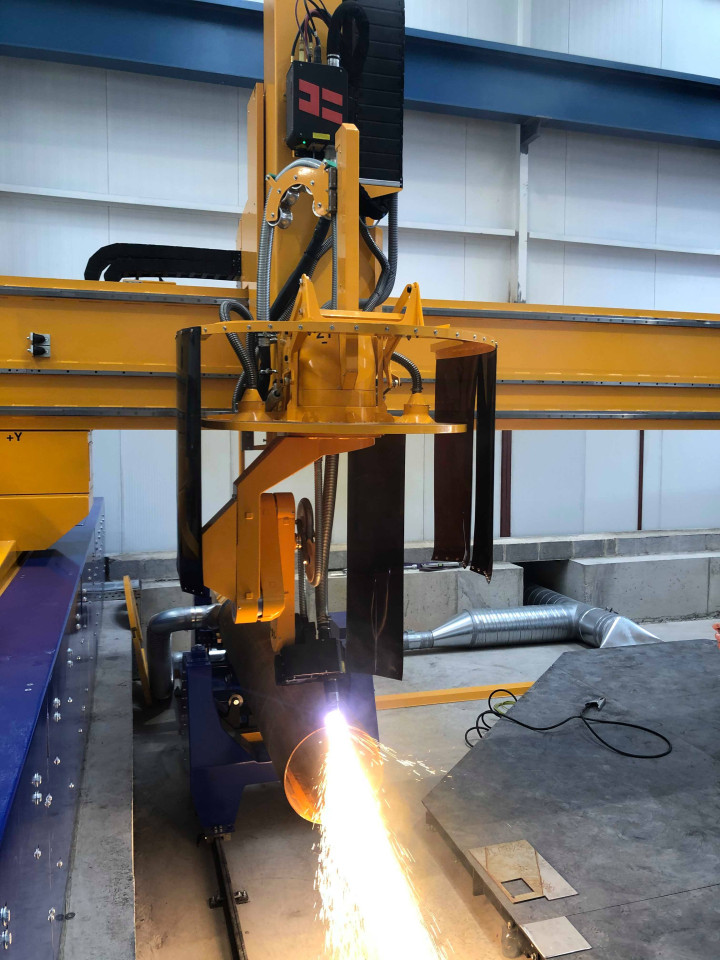

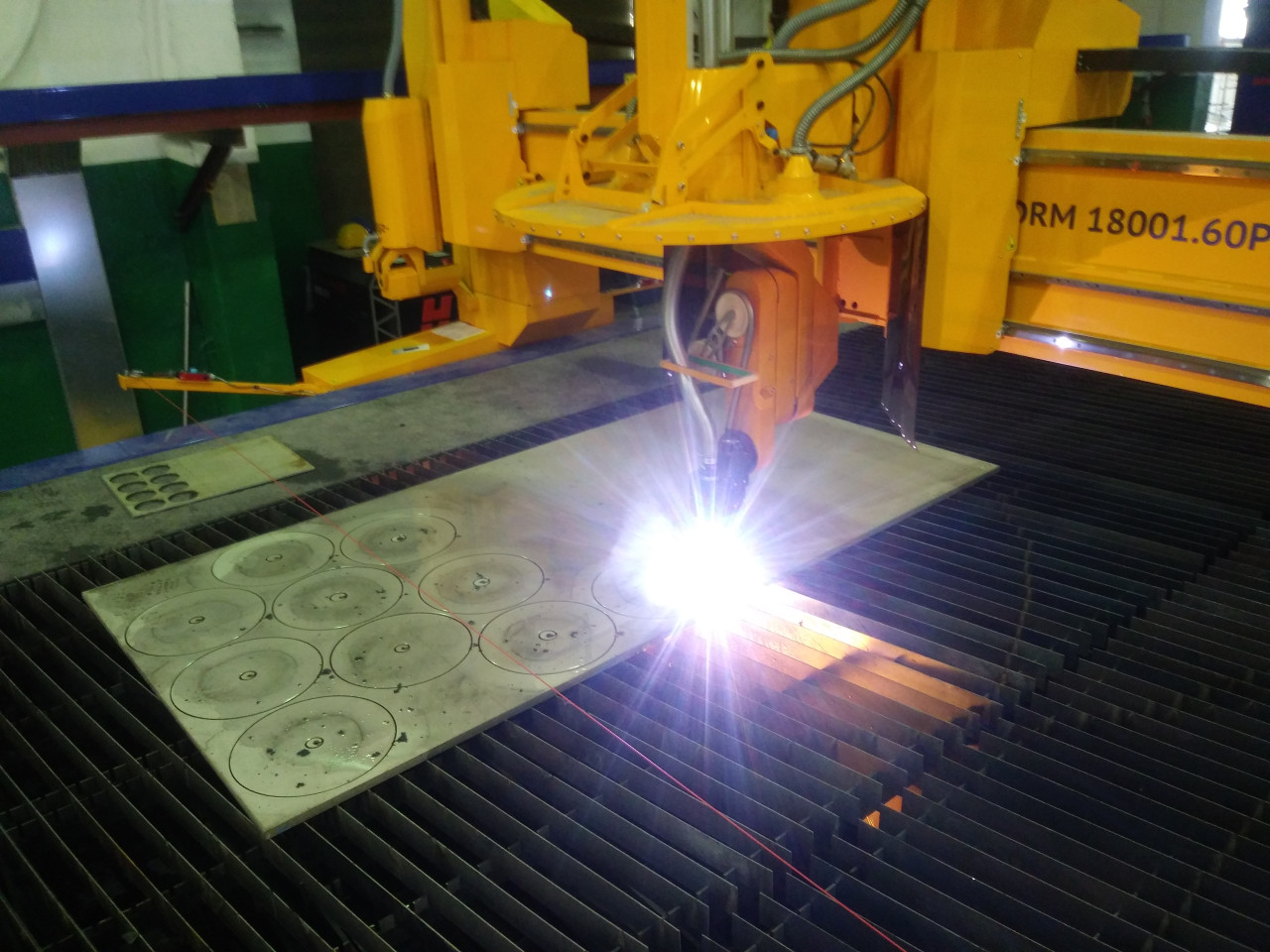

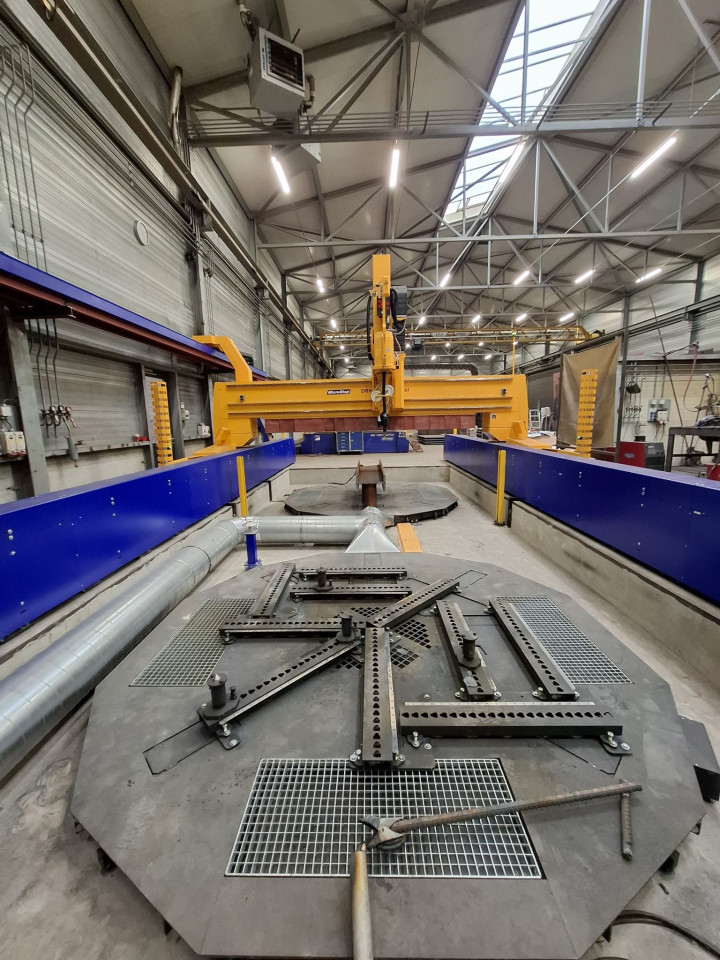

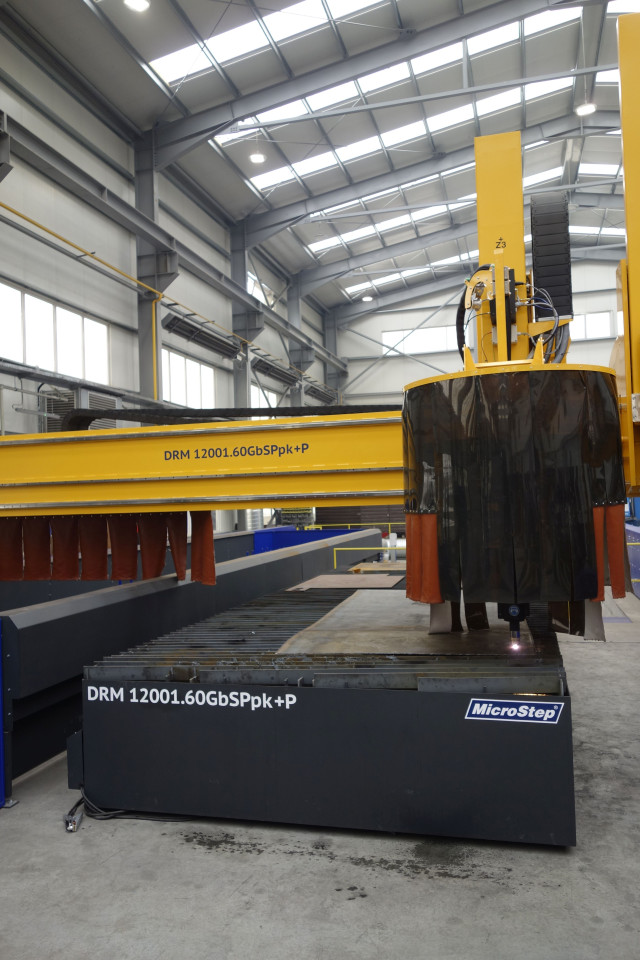

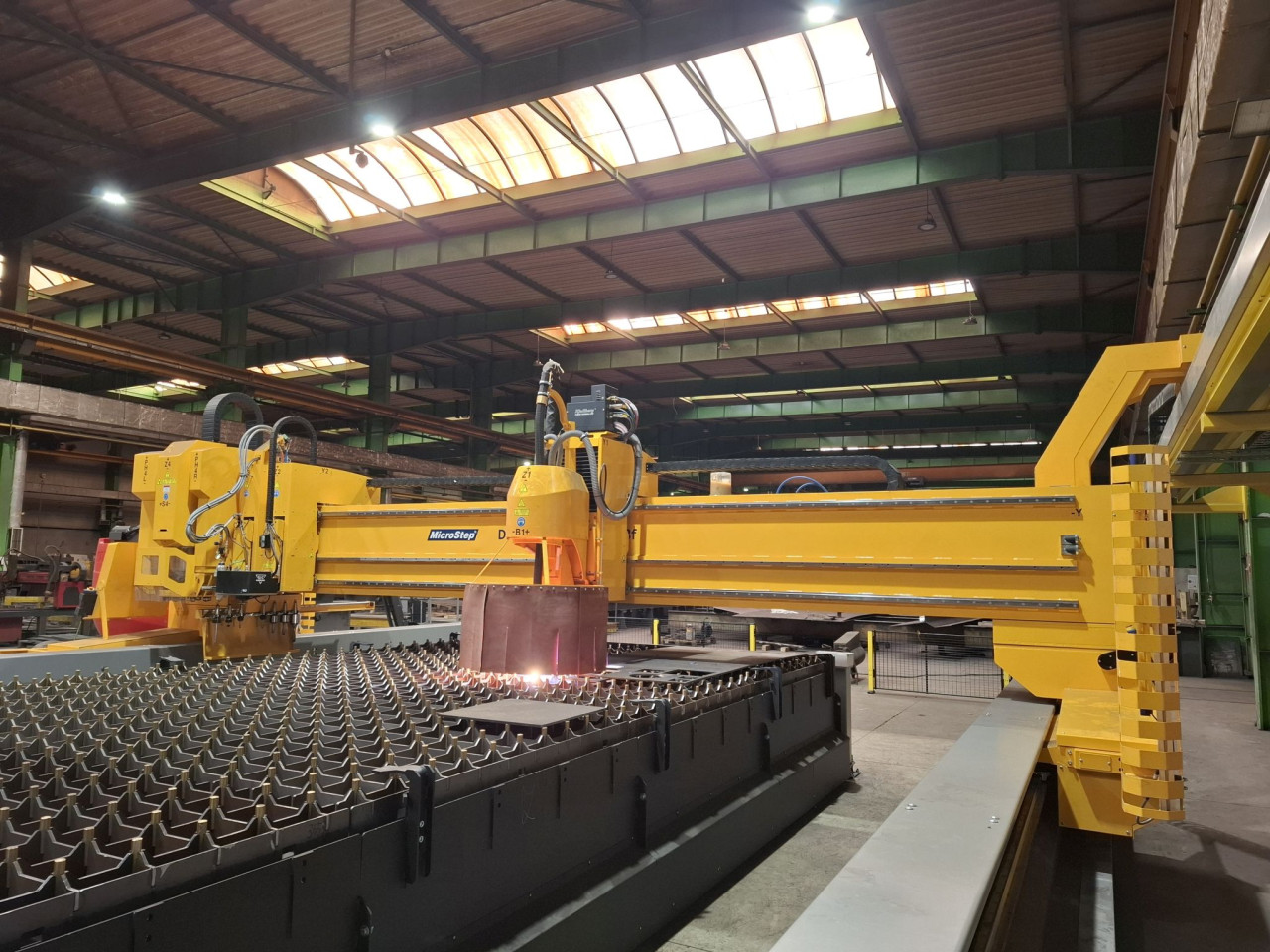

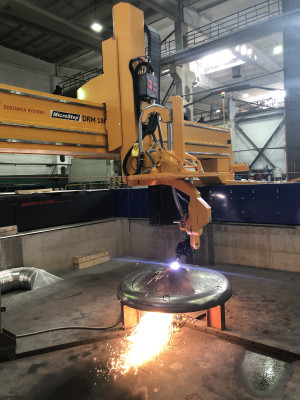

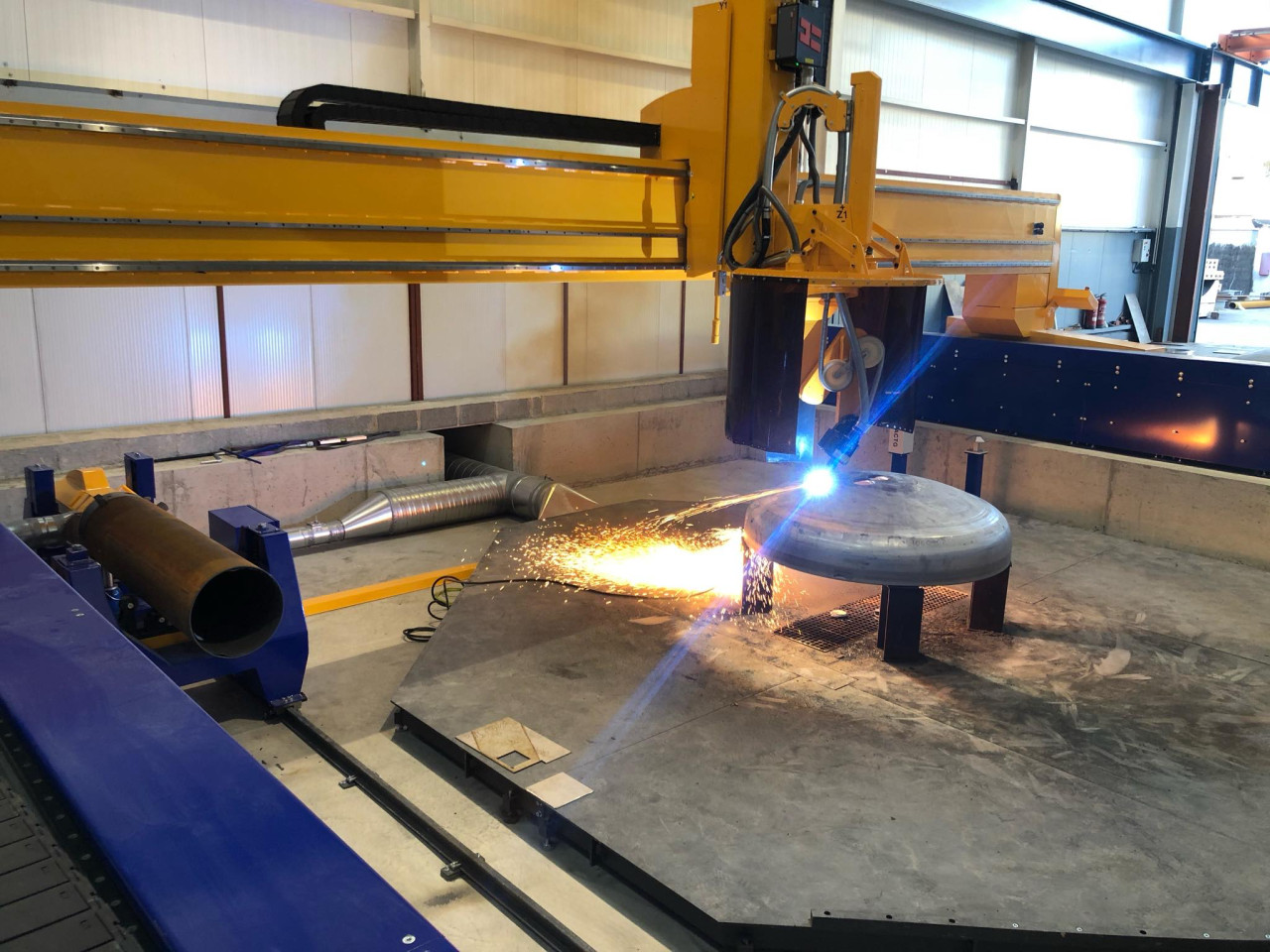

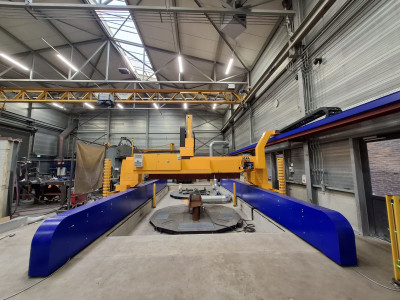

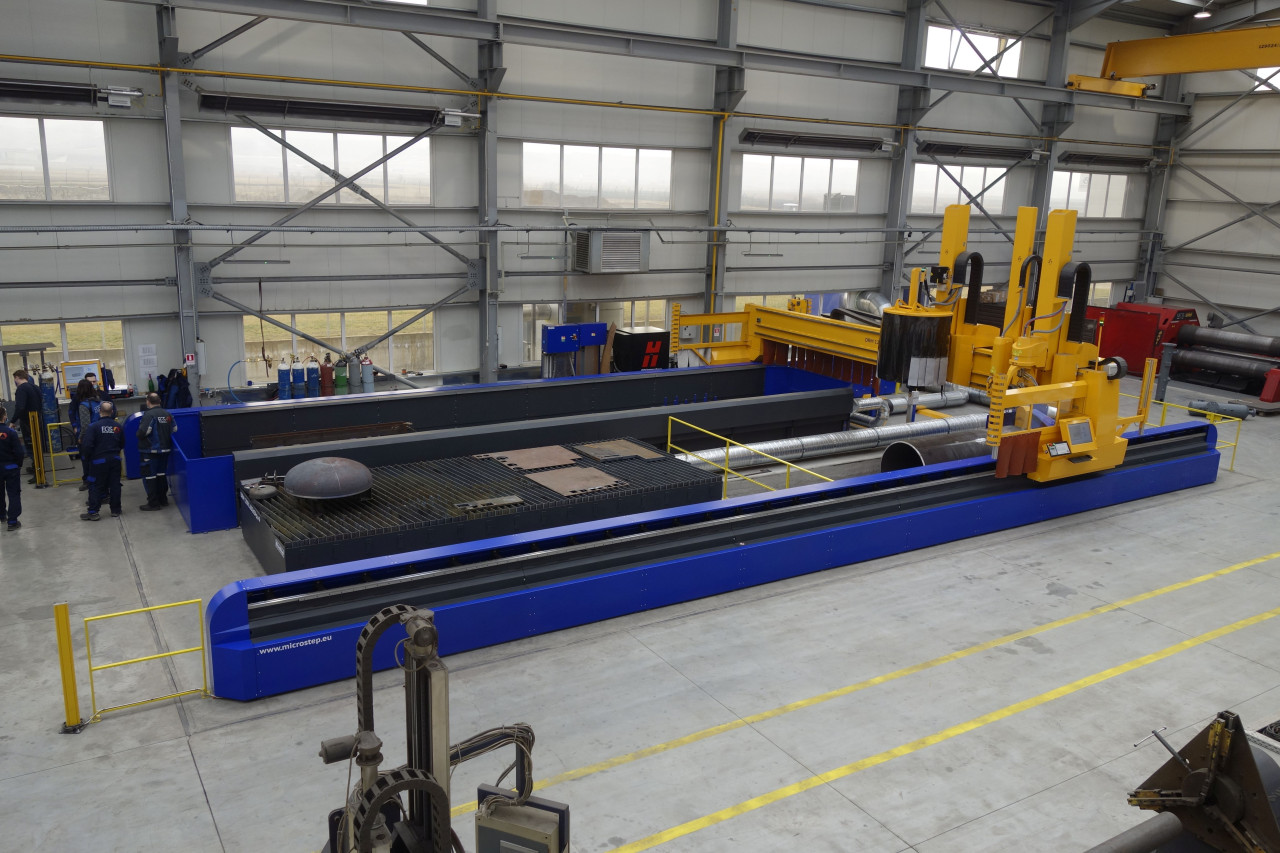

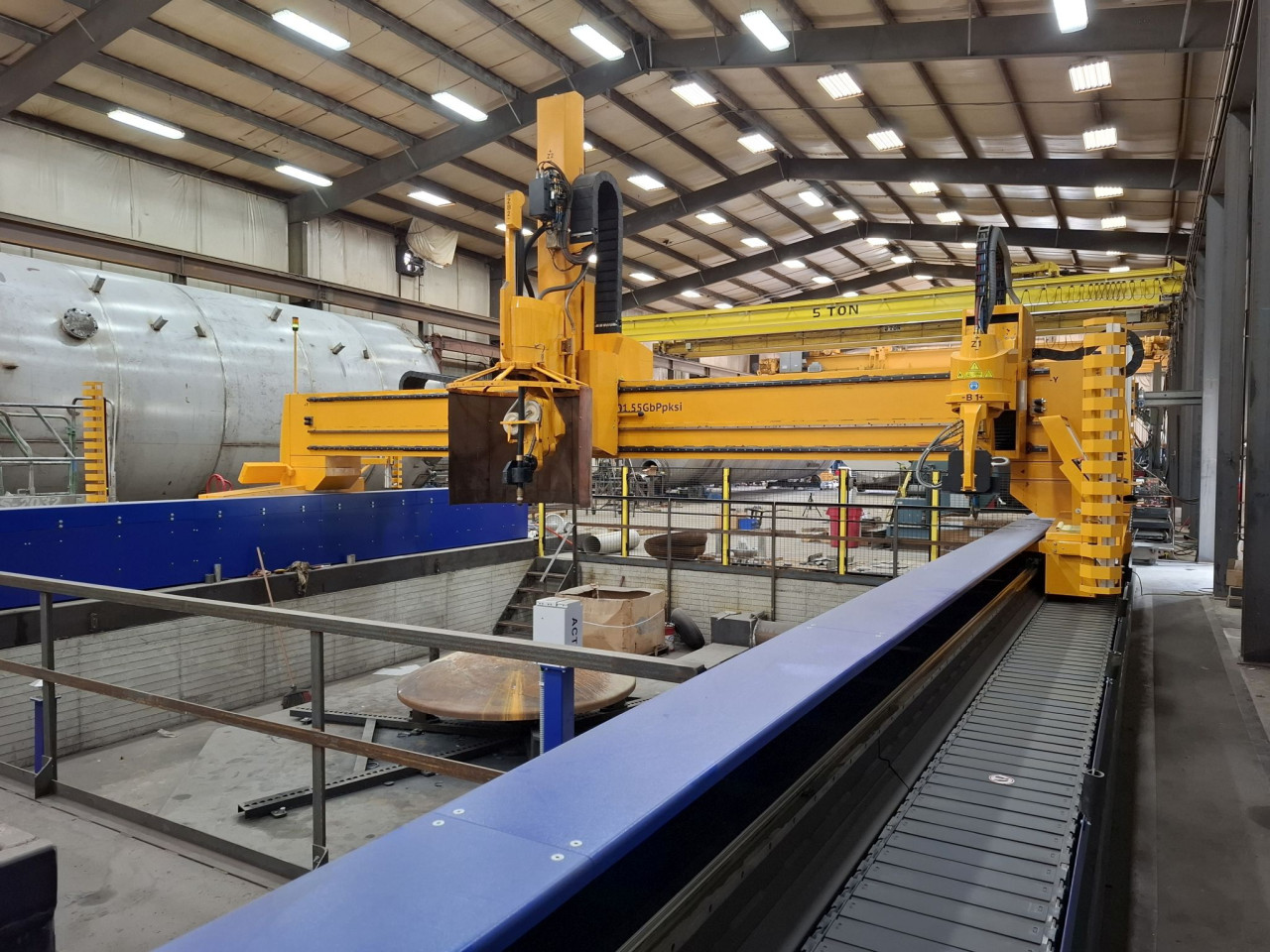

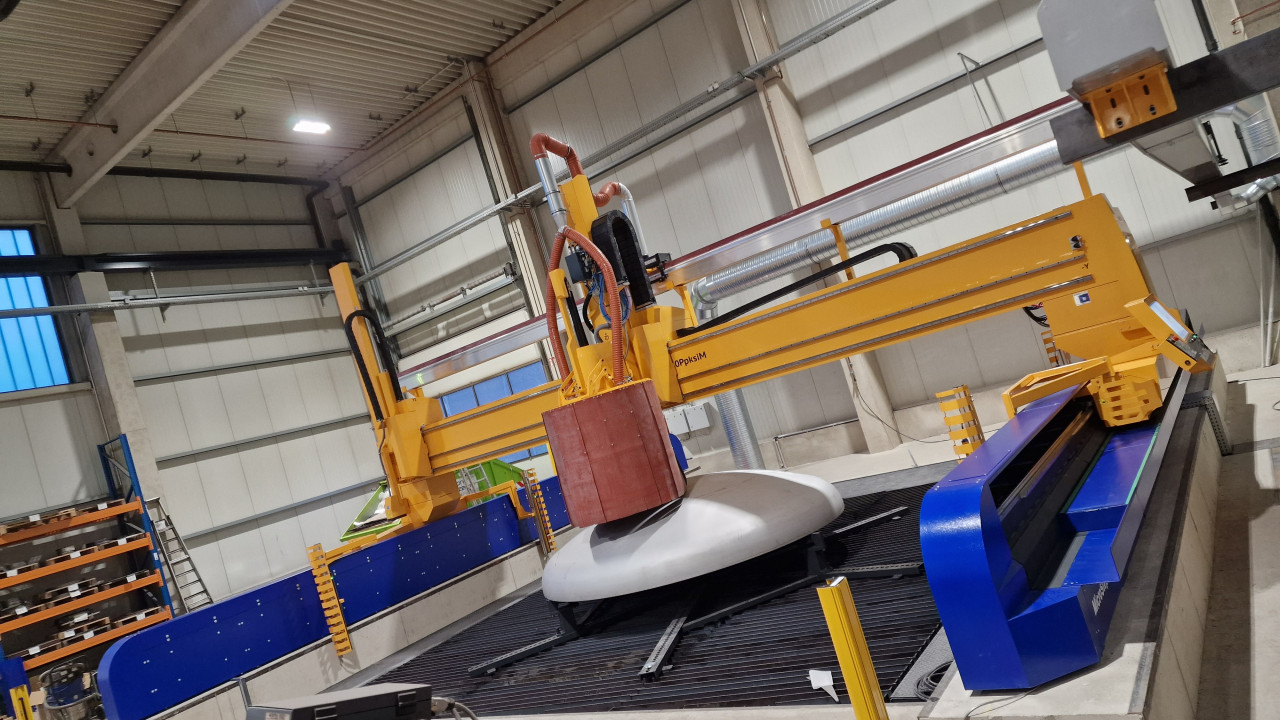

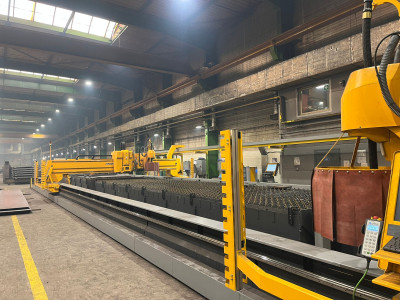

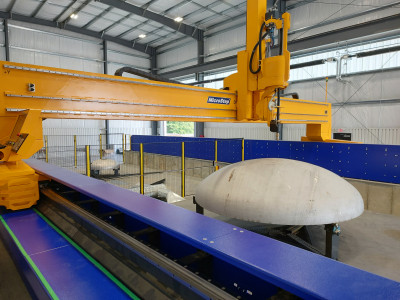

DRM is a heavy-duty CNC cutting machine designed for a wide range of dome, sheet and pipe applications. Its robust gantry allows a vibration-free operation of heavy equipment such a automatic oxyfuel triple torches, a 120° rotator with a 1.5 m stroke of Z-axis for cutting of 3D shapes and other custom equipment. Along with the full range of sheet and pipe cutting possibilities, DRM offers special applications on domes like trimming, separation cuts, cutting of diverse openings, weld edge preparation and cutting of domes placed upside down. A 3D scanner in combination with mScan software allows to adjust the cutting plans according to measured true surfaces of domes and thus to achieve excellent spatial precision in 3D cutting.

Technical parameters

Working length  3000 - 30000 mm
Working width  1500 - 8000 mm

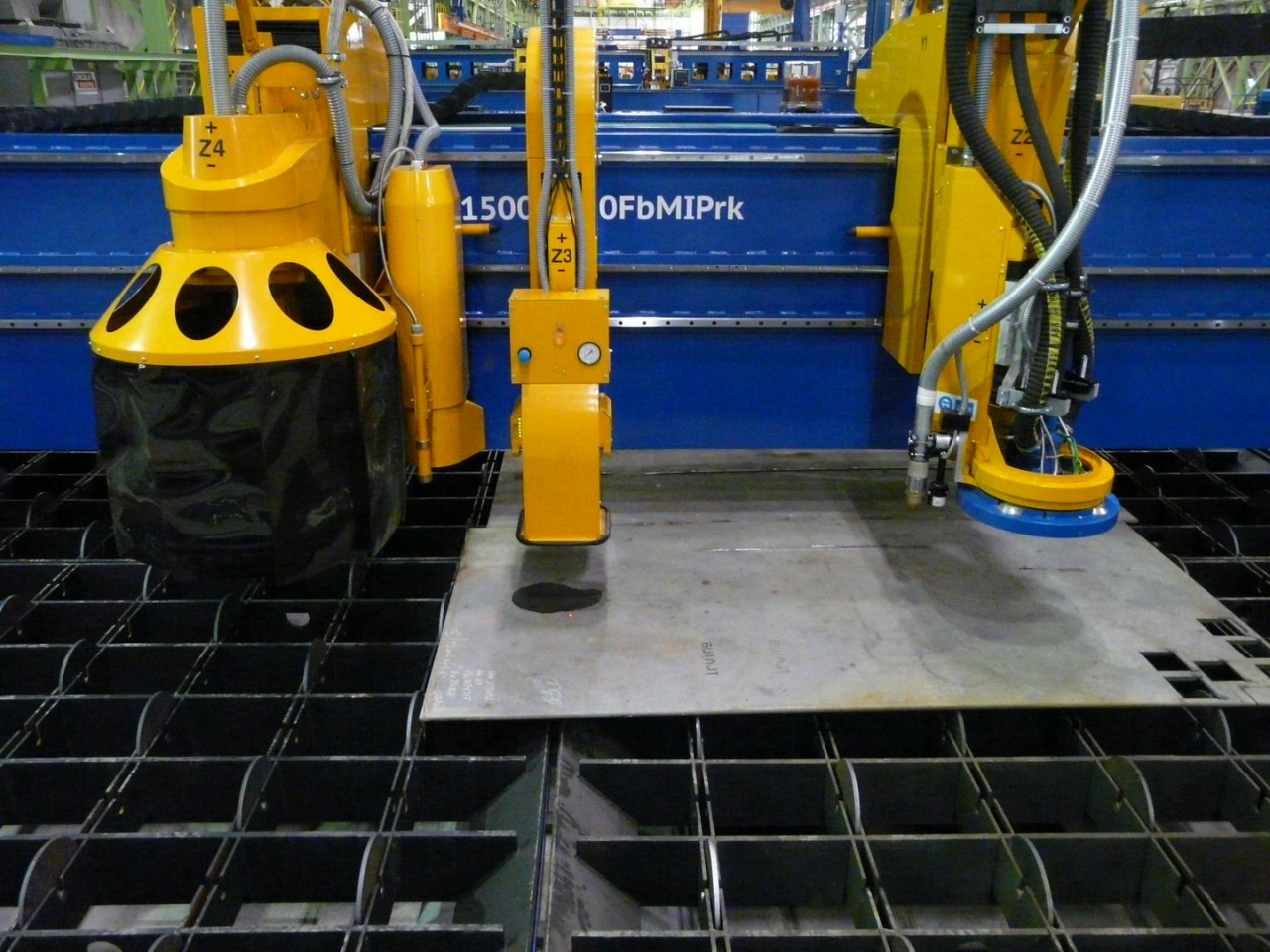

Max. number of tool stations 4
Max. thickness of material cut by plasma according to a plasma source
Max. thickness of material cut by oxyfuel 200 mm

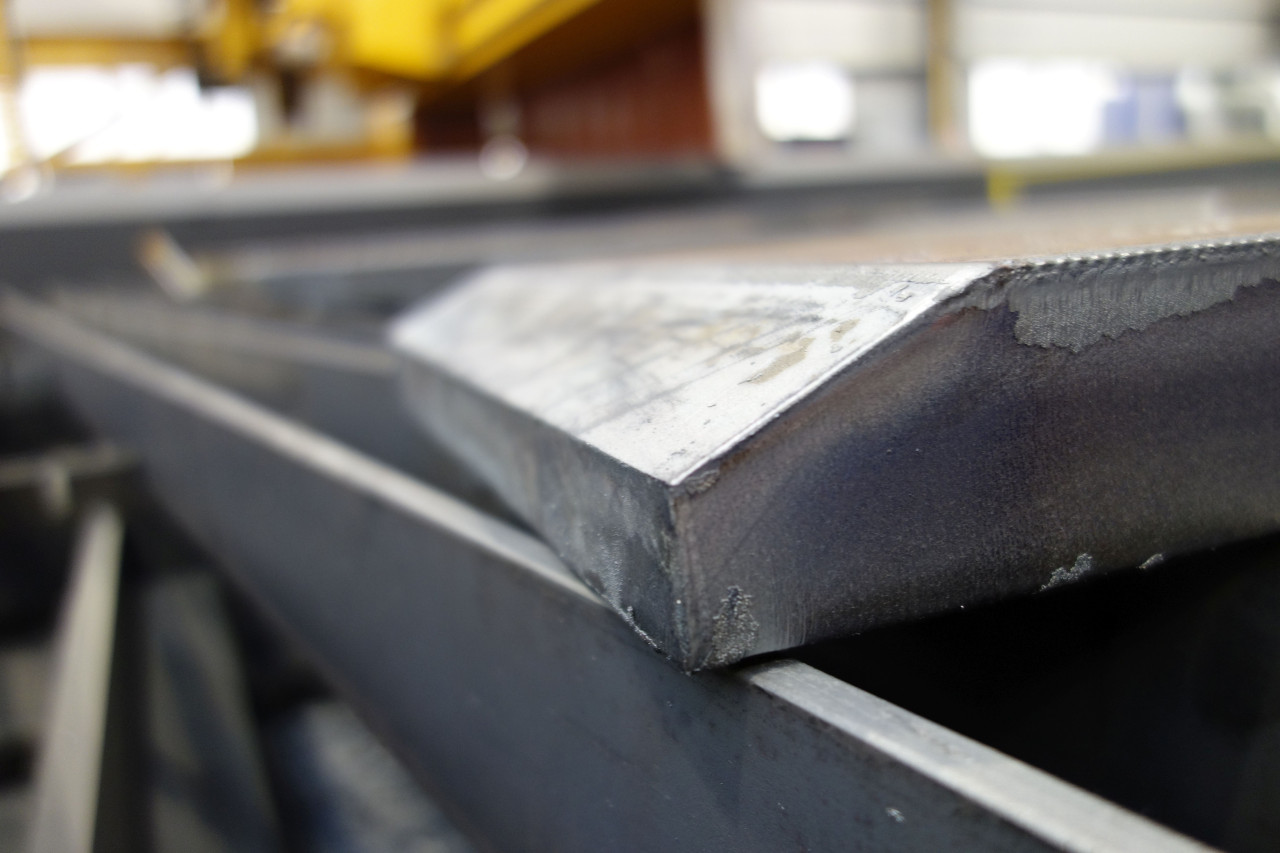

Bevel cutting yes (see accessories)

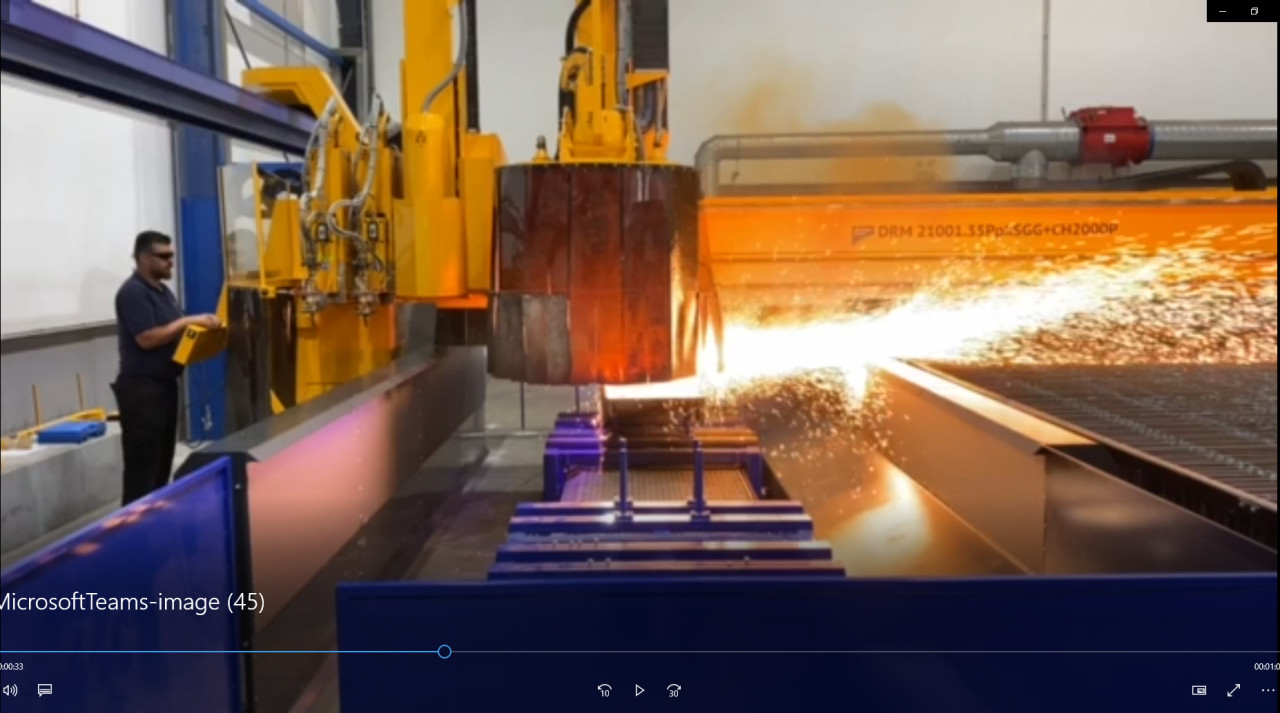

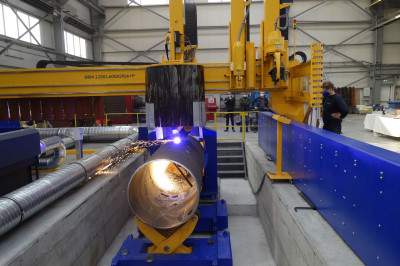

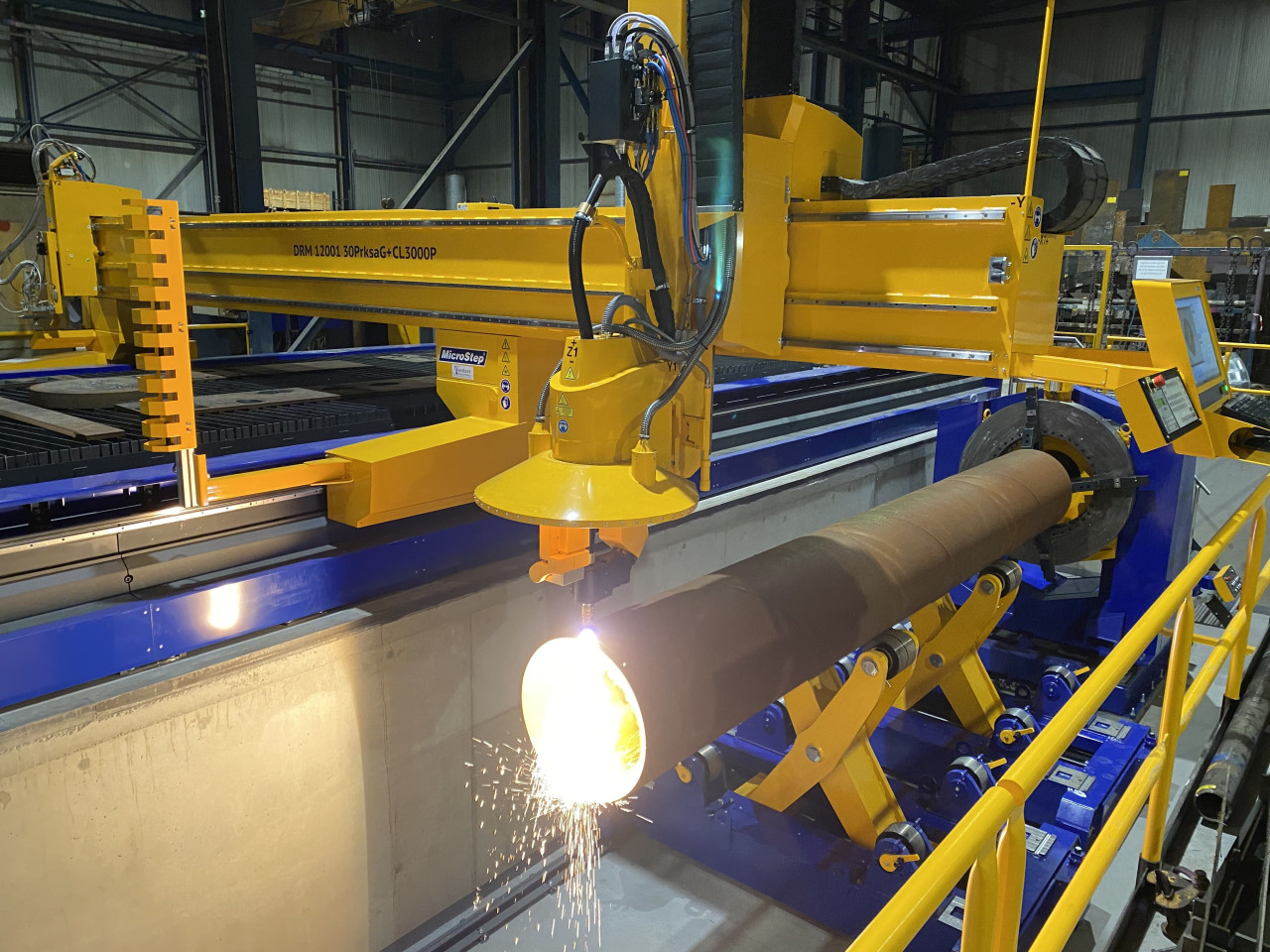

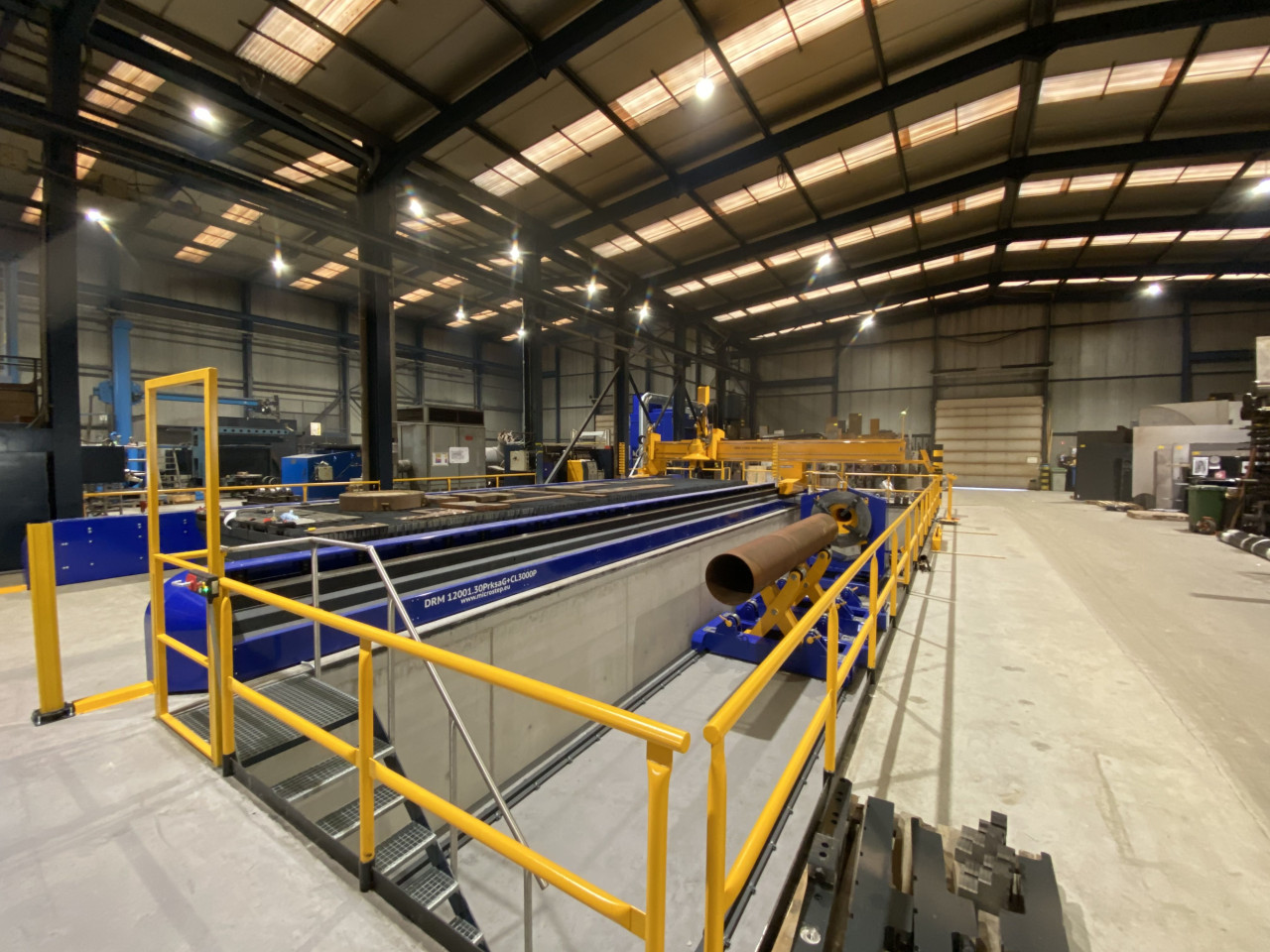

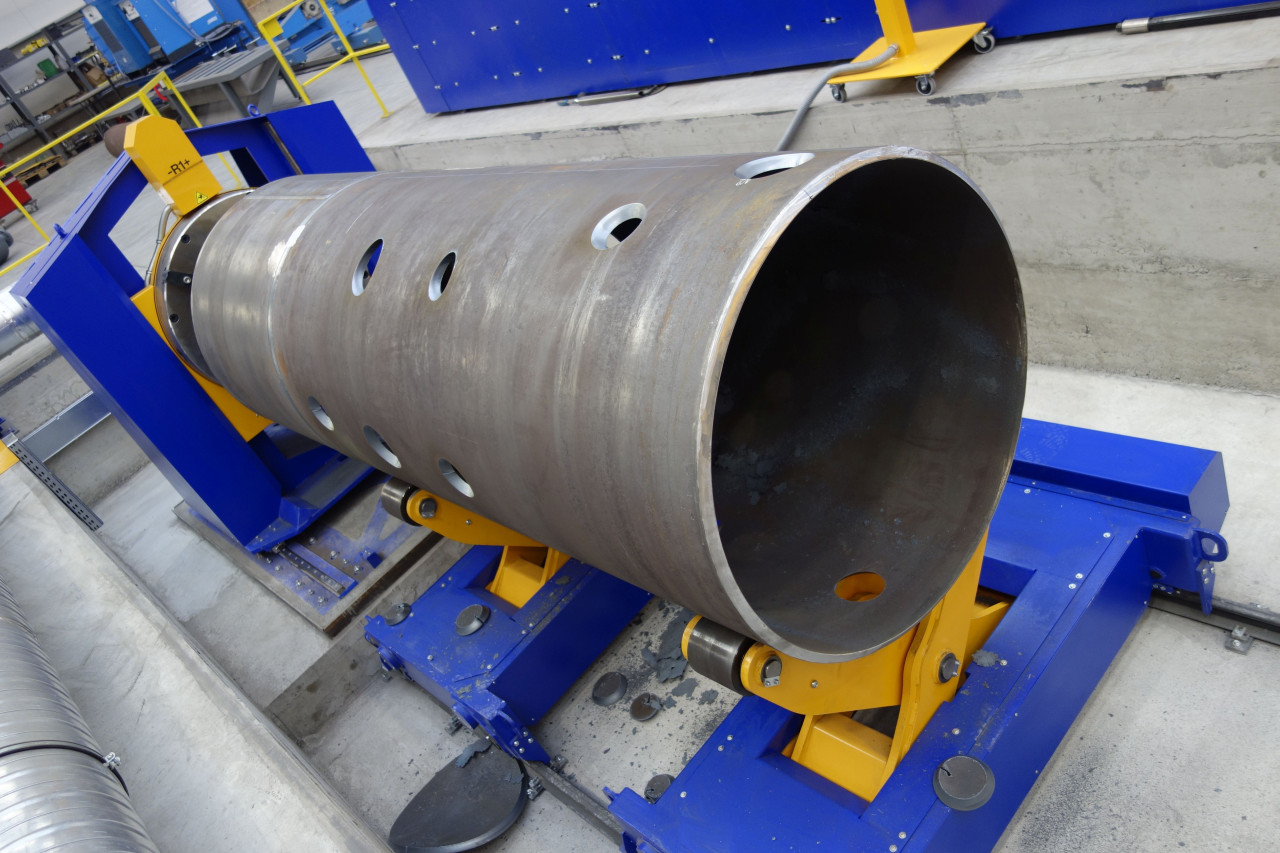

Pipe cutting Ø 30 - 1500 mm, max 12 t

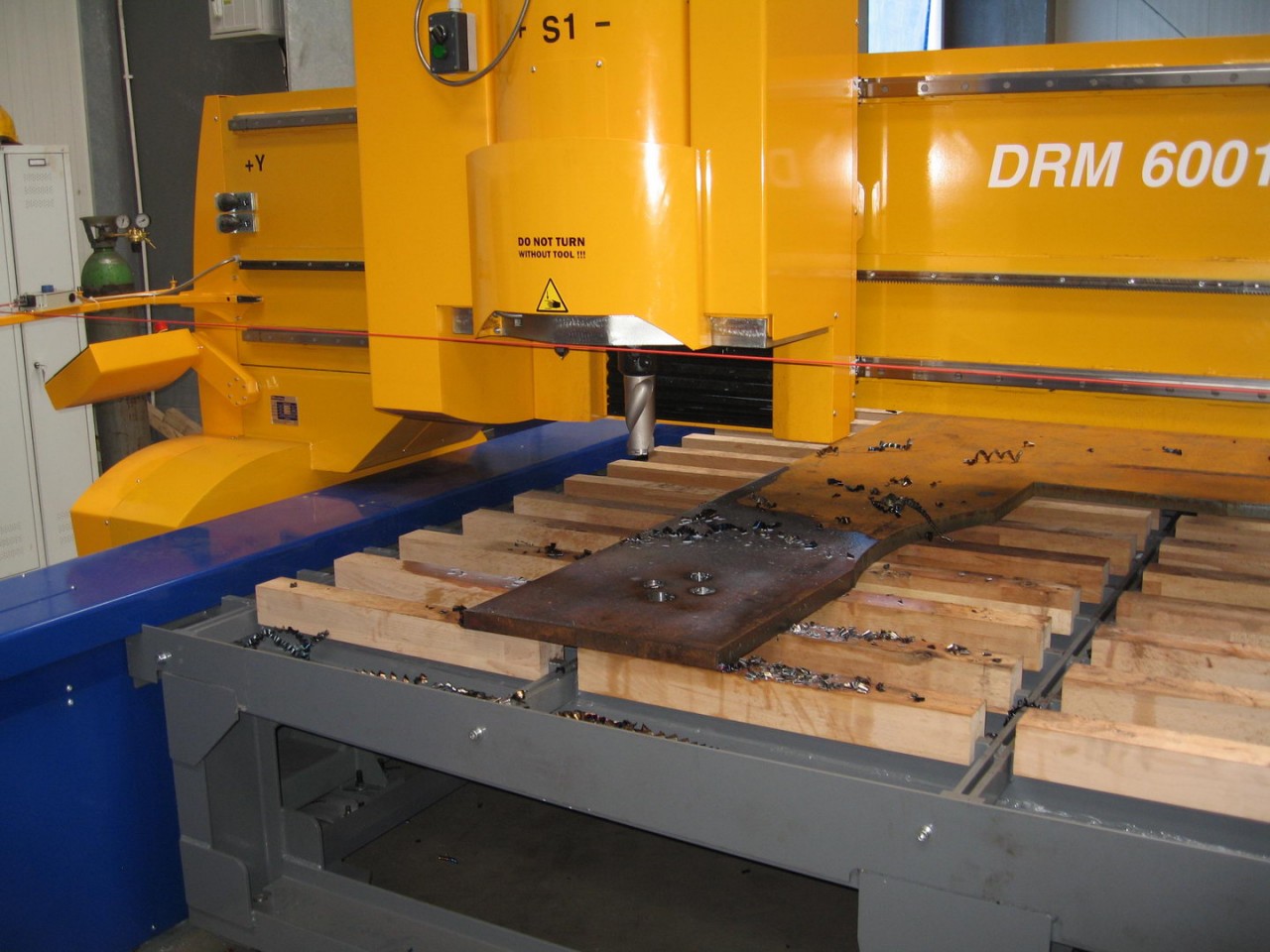

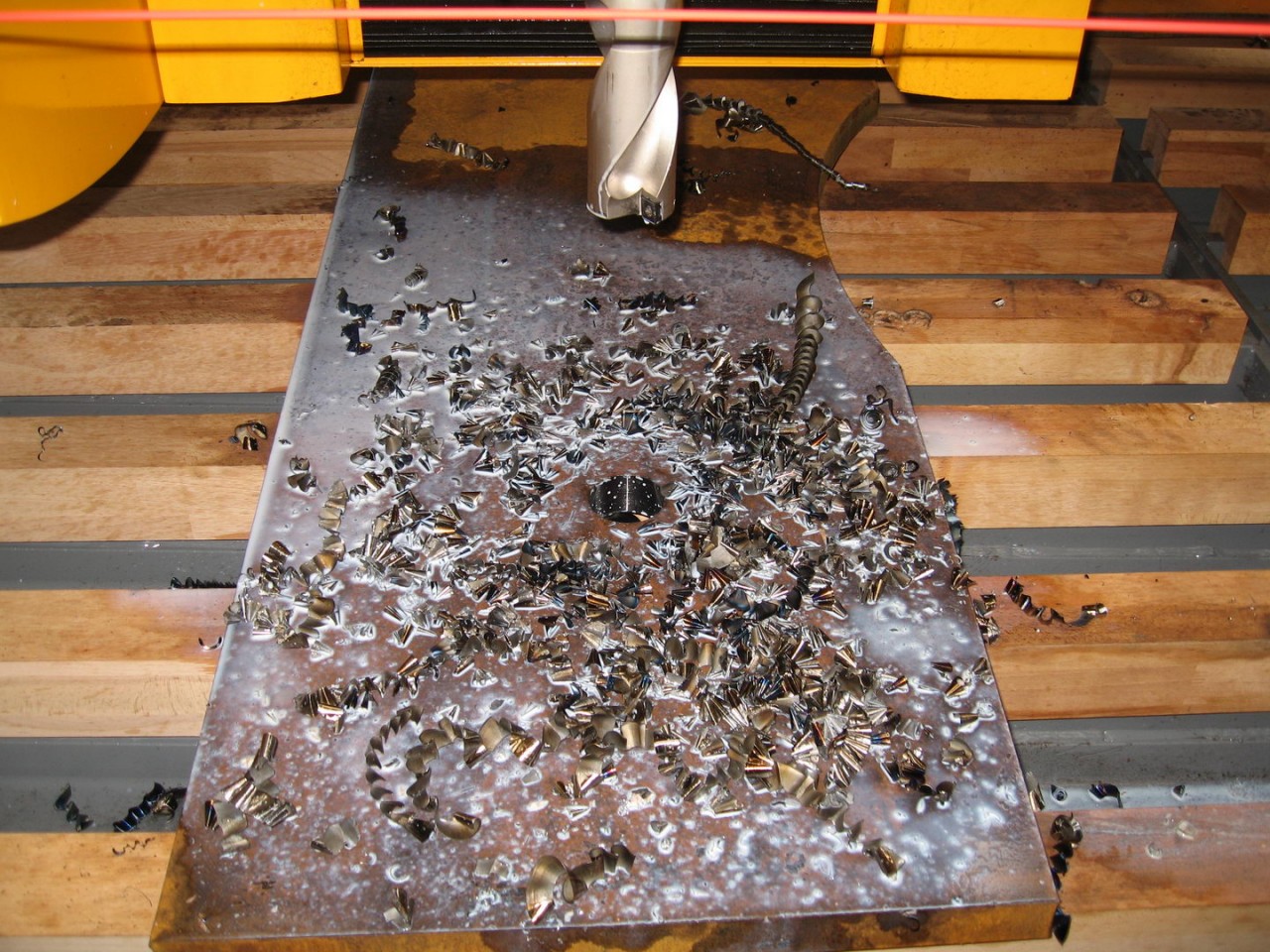

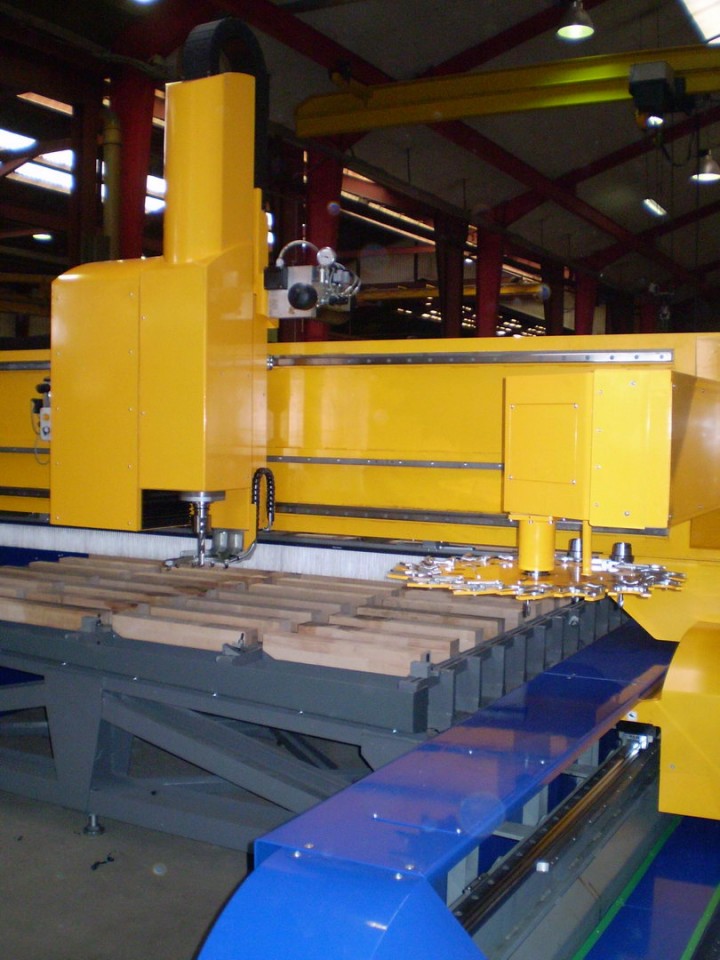

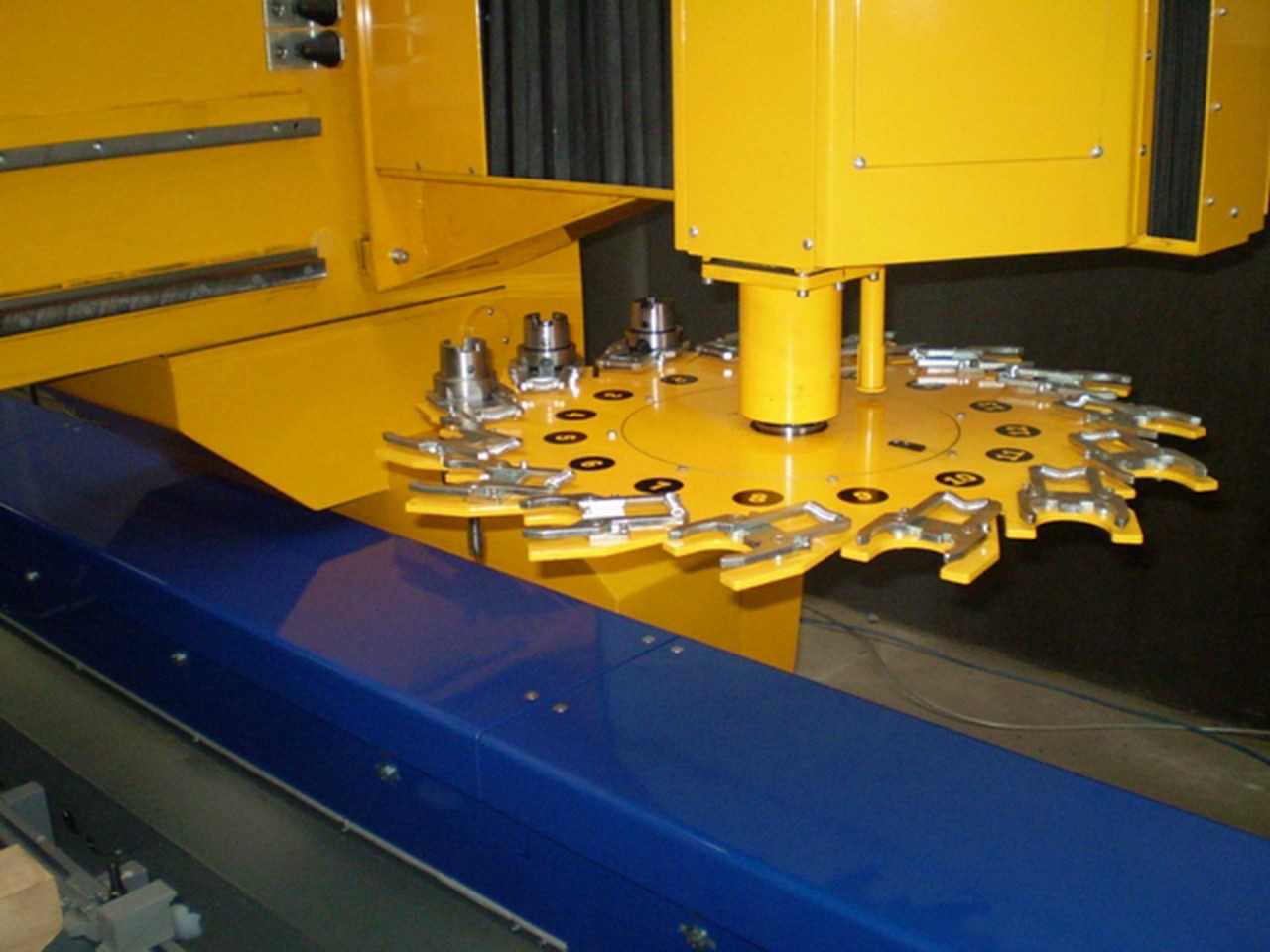

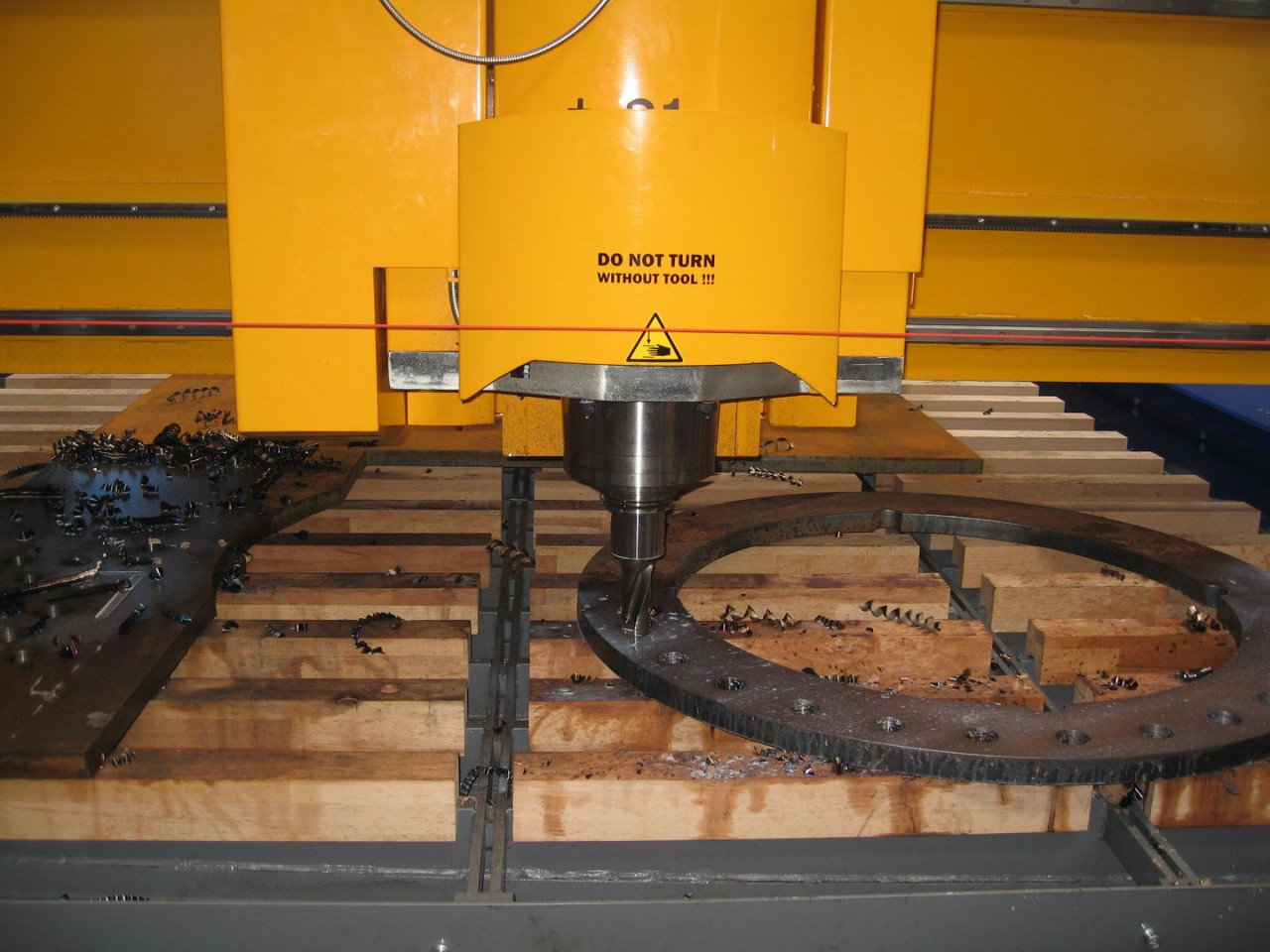

Drilling and tapping Ø 4 - 60 mm, M4 - M30, automatic tool exchange
Positioning speed  max 62 m/min (linear guides), max 56 m/min (rails)
Bidirectional repeatability 0.05 mm/m
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made according to customers' needs.

Inquiry formBrochure

Accessories

  • Plasma Straight Tool Station

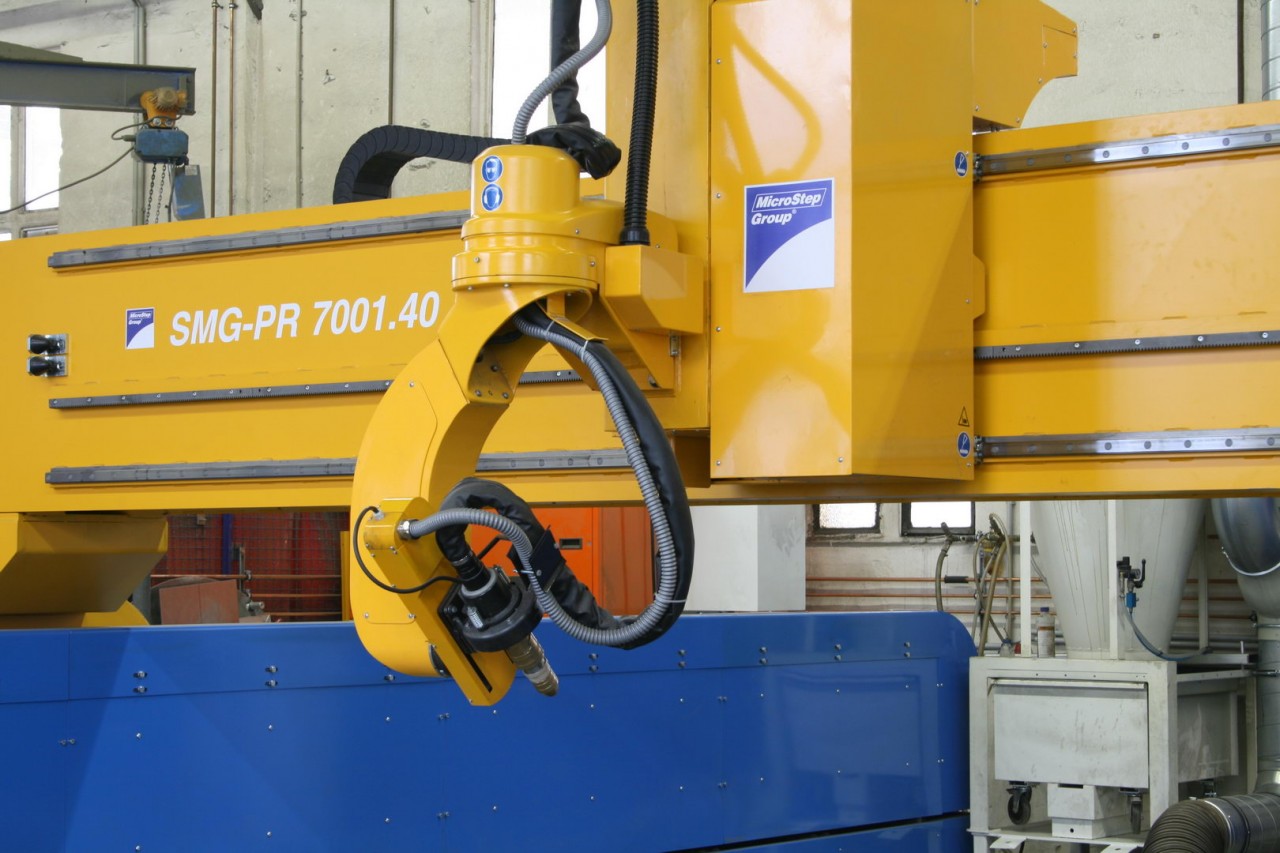

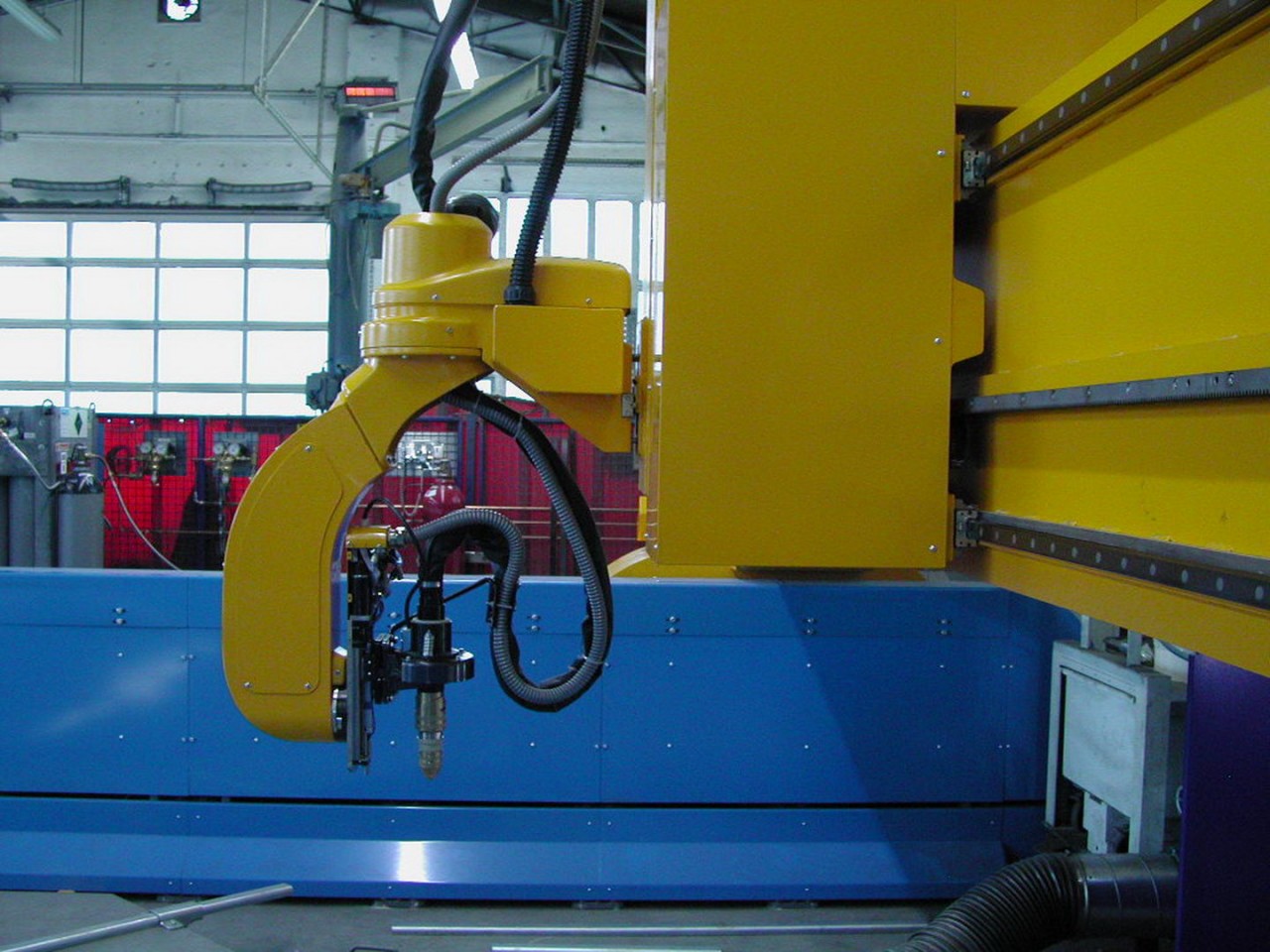

  • Plasma Rotator
  • Plasma 90° Rotator
  • Auto-calibration of Tool Geometry

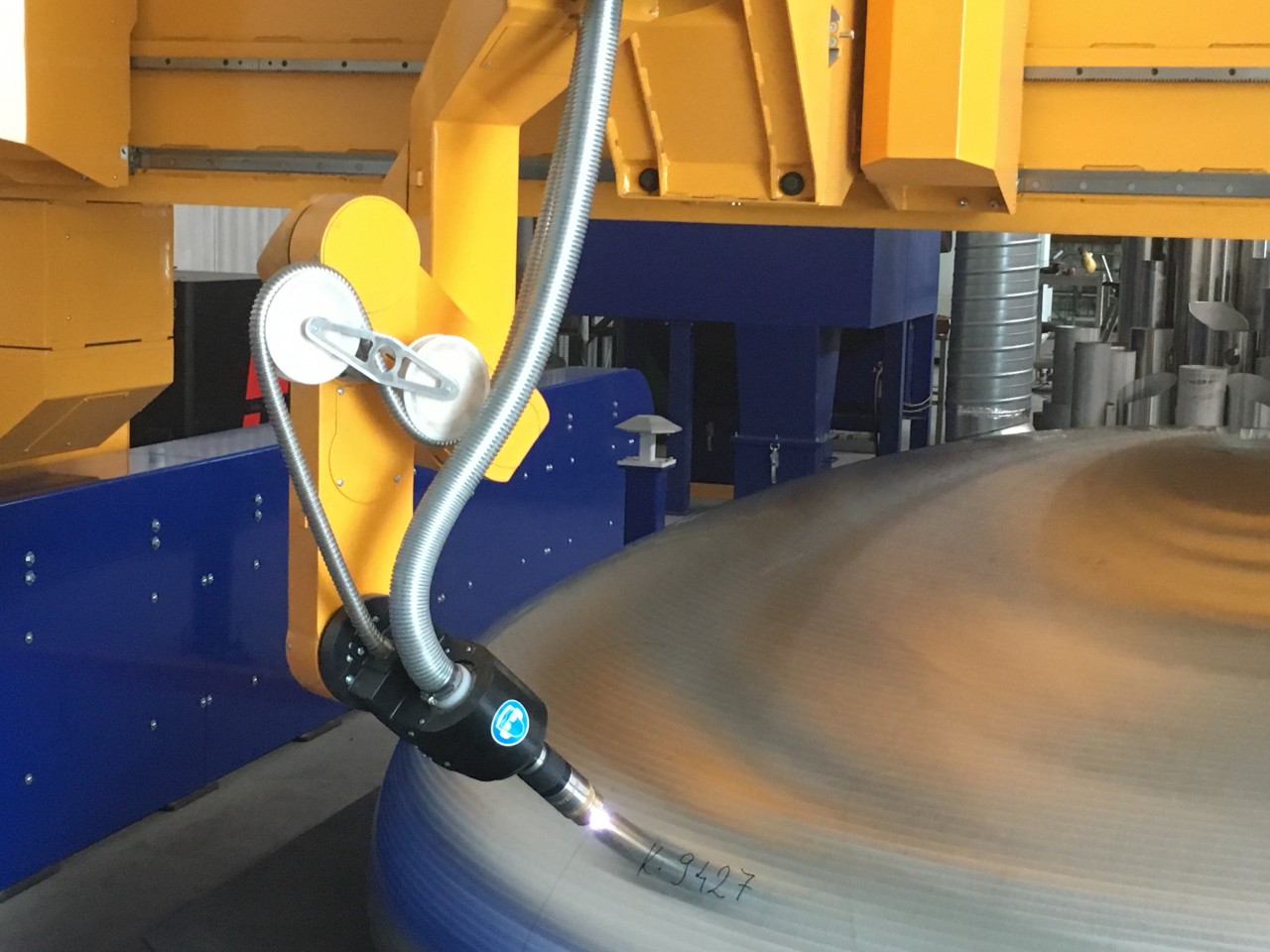

  • Inkjet Writer
  • MicroPunch
  • CCD Camera
  • Automatic Plate Alignment
  • Additional Beveling Process
  • Oxyfuel Triple Bevel Tool Station
  • Oxyfuel Multi-torch Tool Station
  • Second Touchscreen on the Gantry
  • Plasma Tilting Tool Station
  • Oxyfuel Rotator
  • Rotary Pipe Positioner RSV 300/500/700/1000
  • Rotary Pipe Positioner RSV 1500/2000
  • Drilling tool station Ø60-P55
