Get more from every tube. Cut with confidence to the very end.

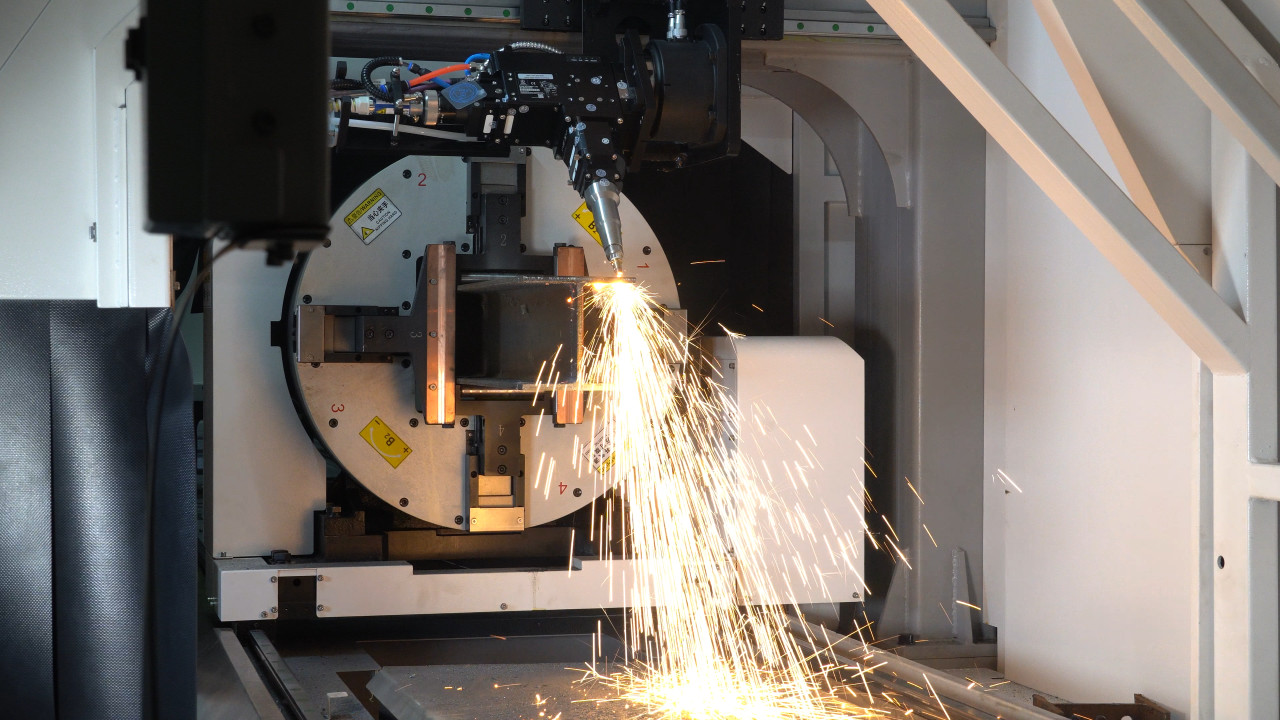

The MSF PIPE ET is built for manufacturers who want to turn more of every bar into finished parts. Its advanced three-chuck design keeps material stable throughout the cutting process, reduces vibration during movement and enables near-zero tailing waste.
This means less scrap, more usable material and a smoother production flow—especially when processing long tubes, demanding profiles or high-value materials.
Stability where it matters most.

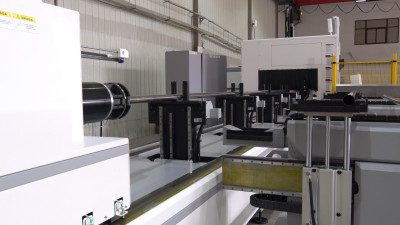

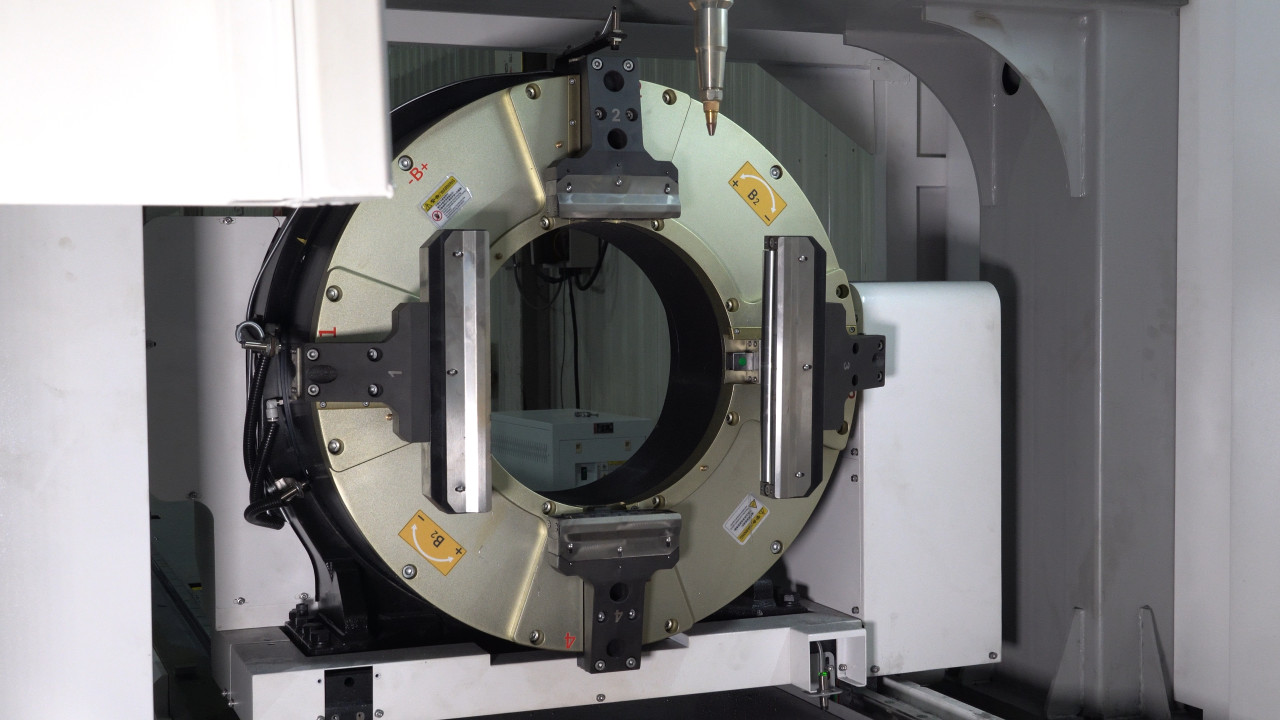

Three independently controlled rotary chucks support the workpiece more effectively during loading, cutting and unloading. The result is stable material handling, consistent cut quality and reliable precision even at high processing speeds.
Whether you cut round, square, rectangular, oval or special profiles such as angles and H-beams, the MSF PIPE ET helps you achieve accurate results while reducing manual intervention and unnecessary material loss.
Designed to keep your production moving.
A durable machine bed, high-dynamic pipe positioning system, precise planetary gears and MicroStep’s in-house control system create a dependable platform for everyday production. Combined with intuitive operation, integrated cutting data, MicroStep CAM software and Industry 4.0 features, the MSF PIPE ET gives your team better control over every job.

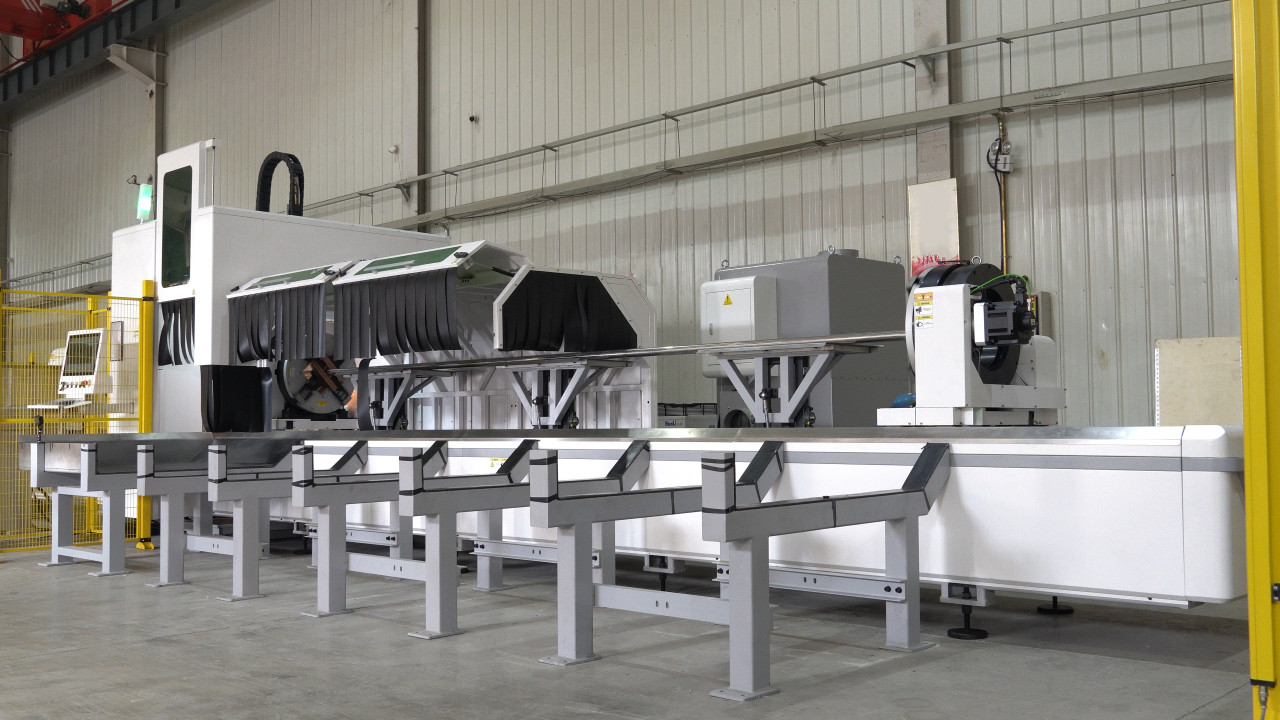

For higher productivity, the machine can be equipped with a laser bevel head, semi-automatic chain loading or a fully automatic bundle loading system.
Your benefits at a glance
MSF PIPE ET: More finished parts from every length of material.
| Size | 3 x 1.5 m / 4 x 2 m / 6 x 2 m |
| Power | 3 - 6 kW |
| Loading / Unloading | 6, 9, 12 m in / 6, 9, 12 m out |
| Automatic loading / unloading | Yes / No |
| Bundle loader* | Yes |
| Max. diameter (round tubes) [mm] | Ø20 - 240, Ø20 - 280, Ø20 - 350 |
| Max. diameter (square tubes) [mm] | 20 x 20 - 240 x 240, 20 x 20 - 280 x 280 |
| Repeatability of positioning | ± 0.03 / 1000 mm |
| Bevel cutting* | Yes |
| Chuck system | 3 x Chuck (0 mm residue) |
| Chuck load | 300 kg, 600 kg, 600 kg (round) |
| CyberFab Control | Yes |
| CyberFab CAM | mCAM | Yes |
