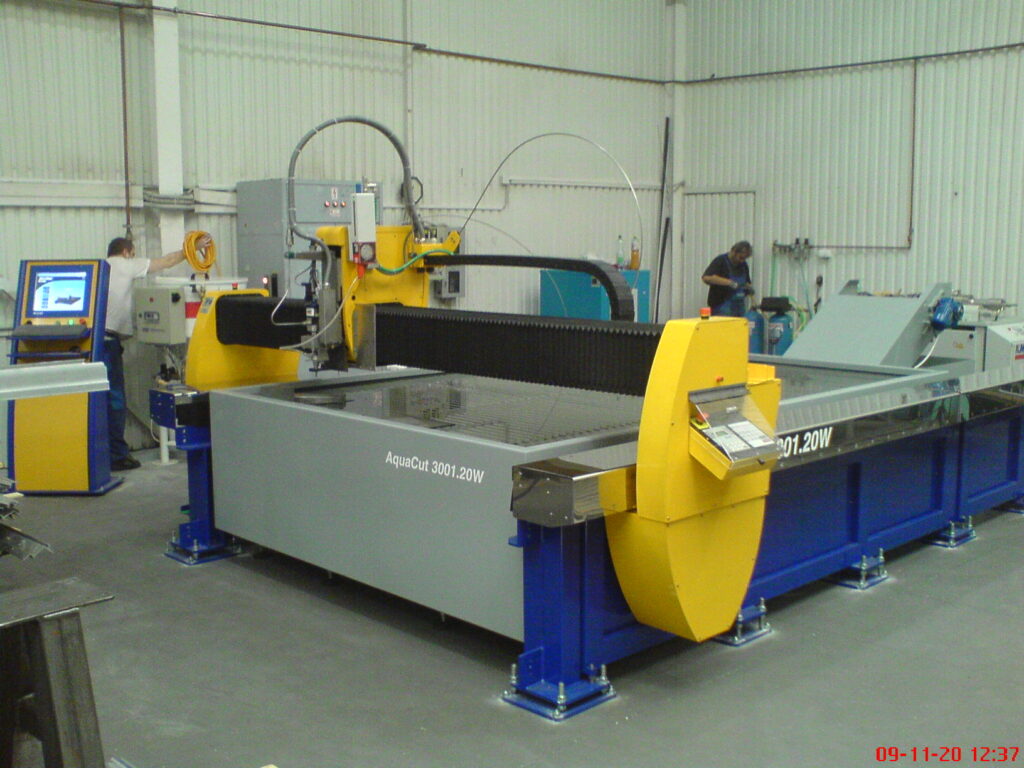

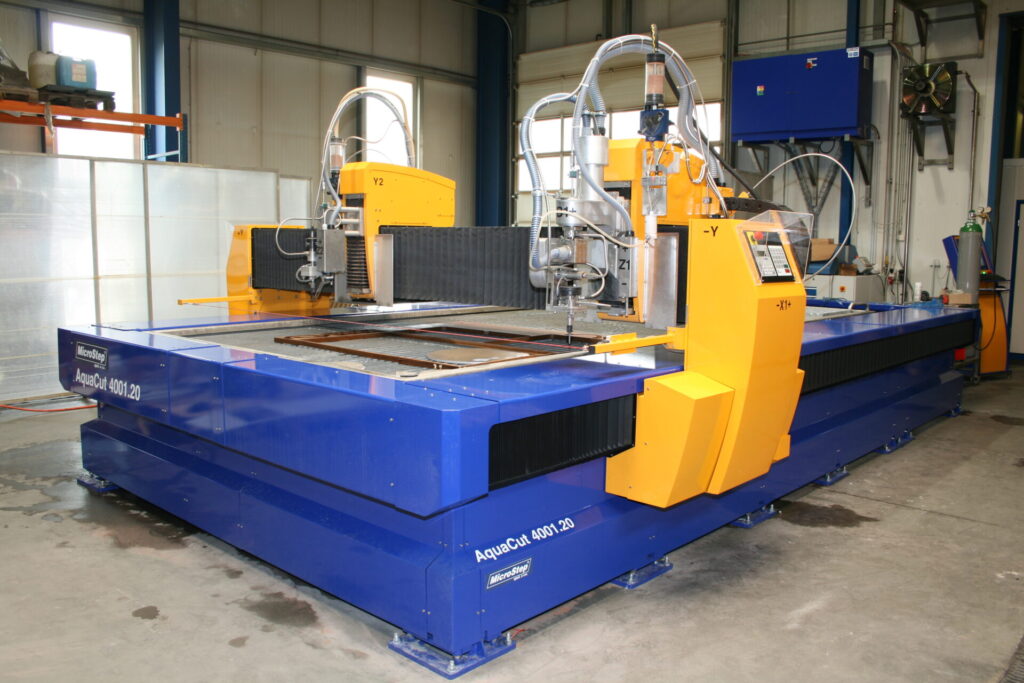

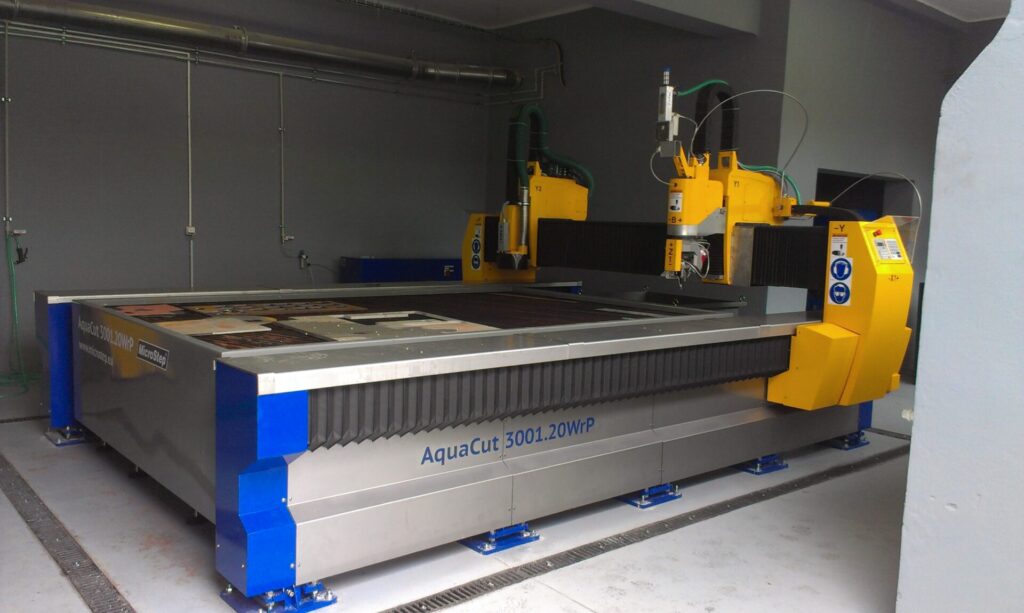

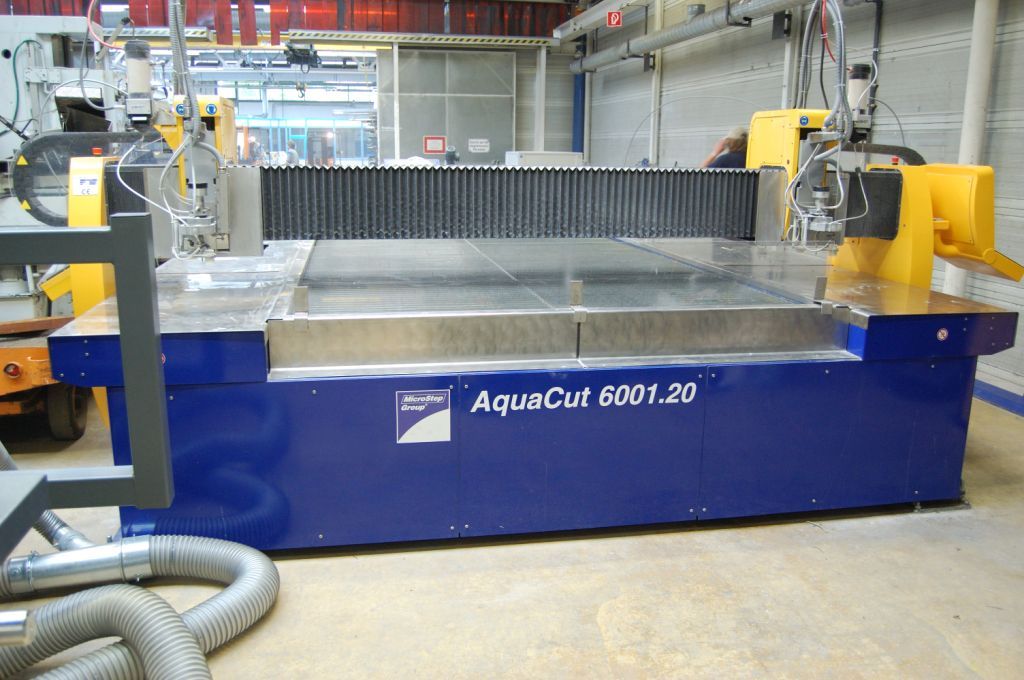

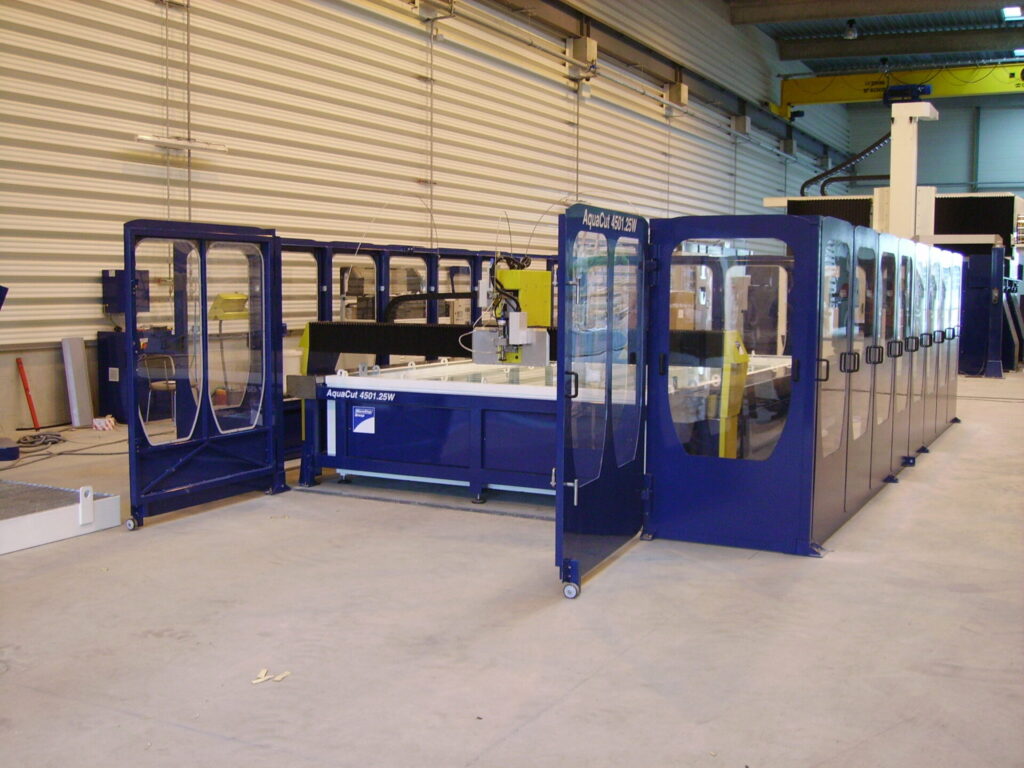

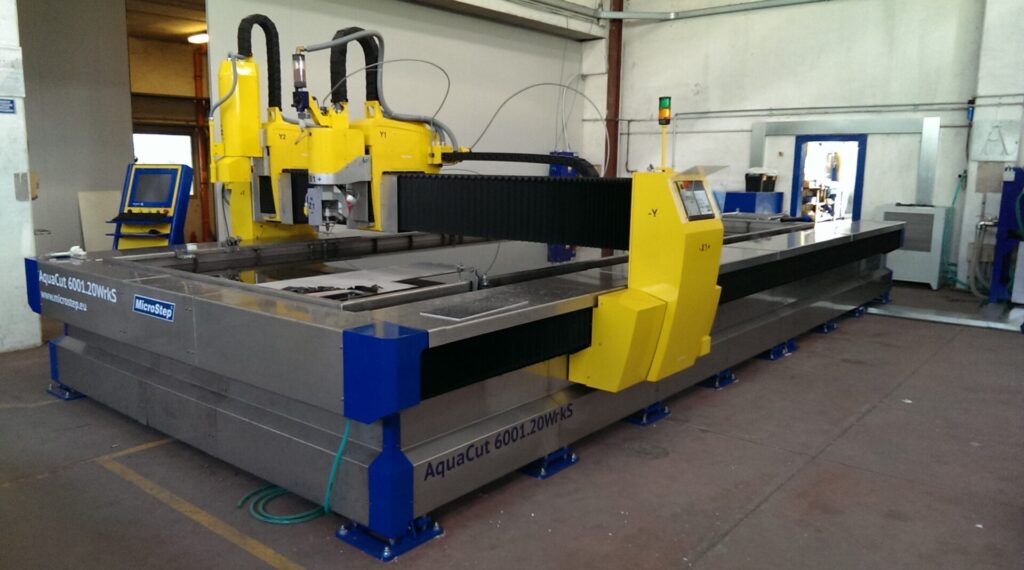

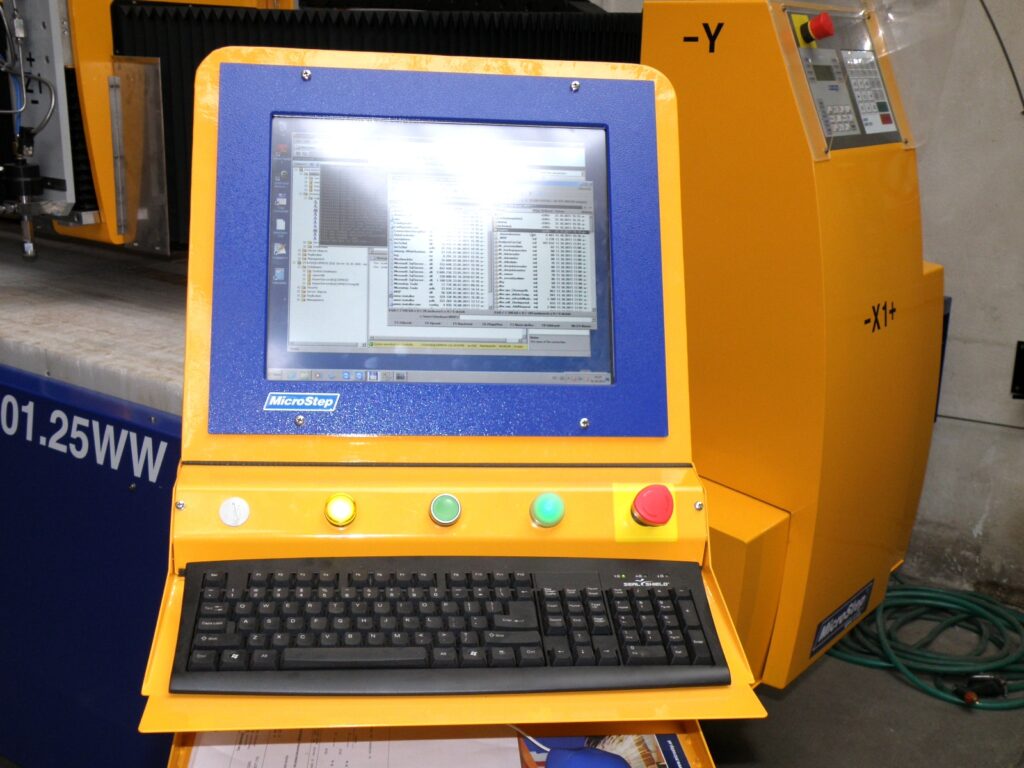

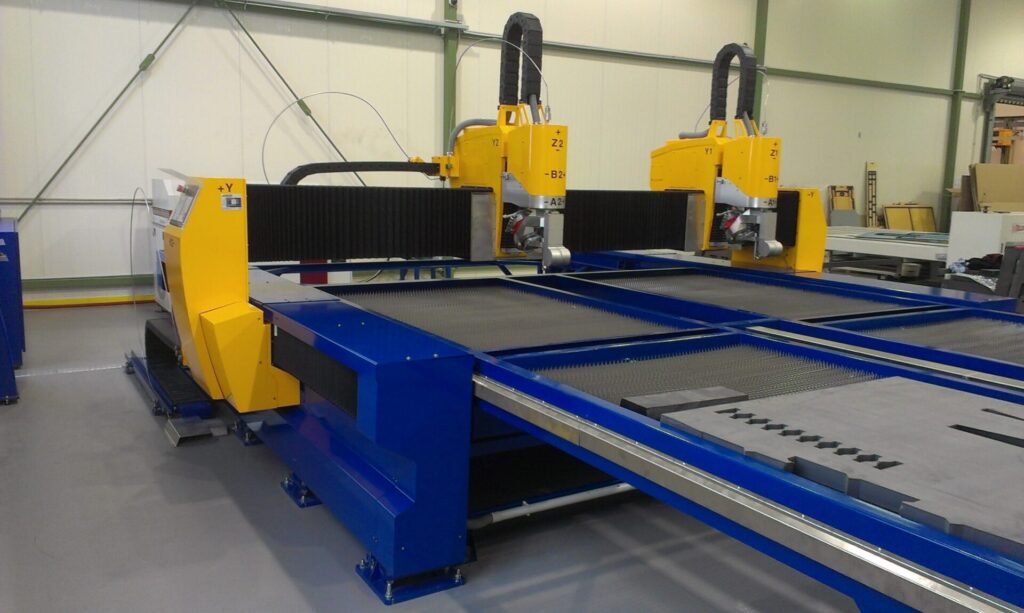

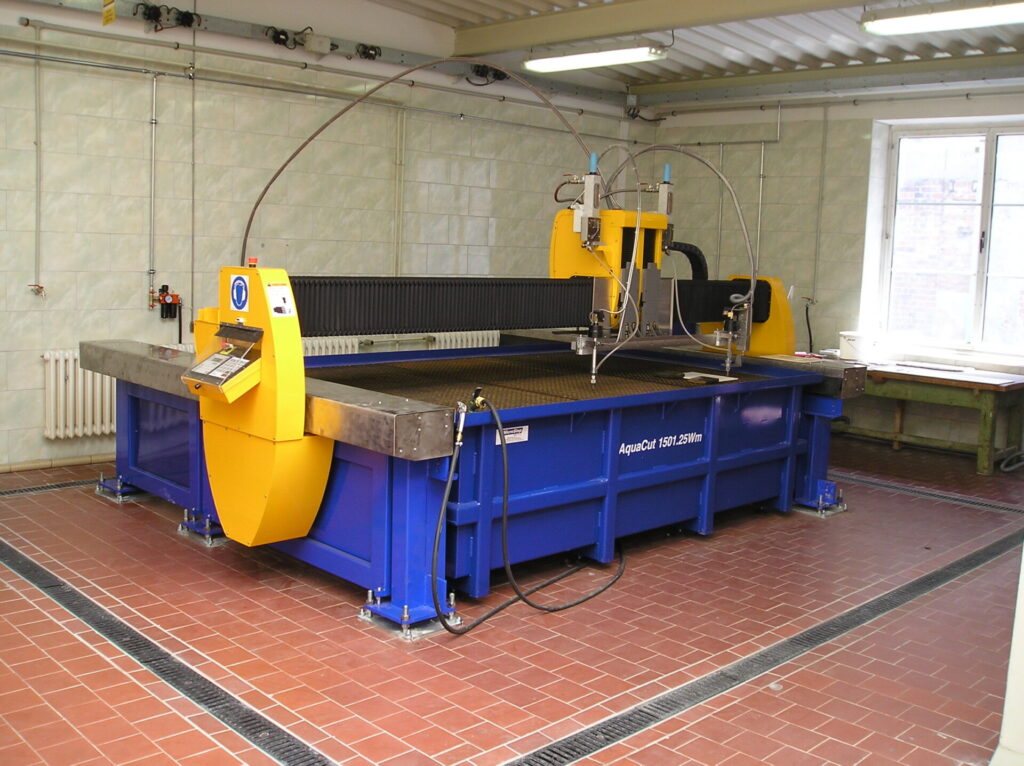

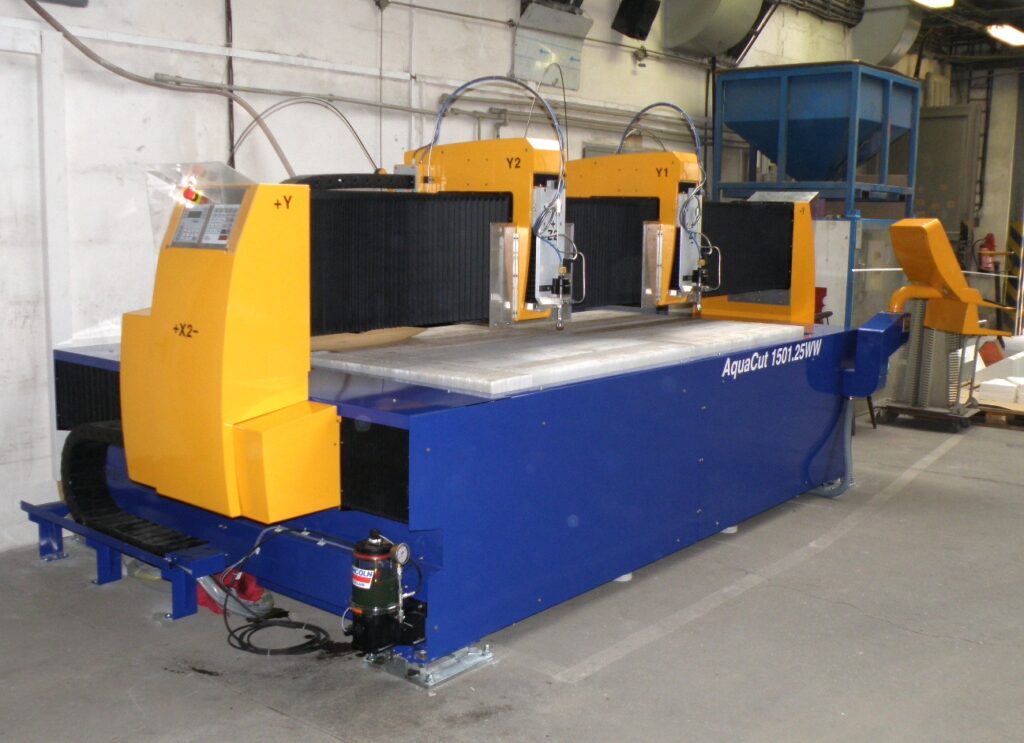

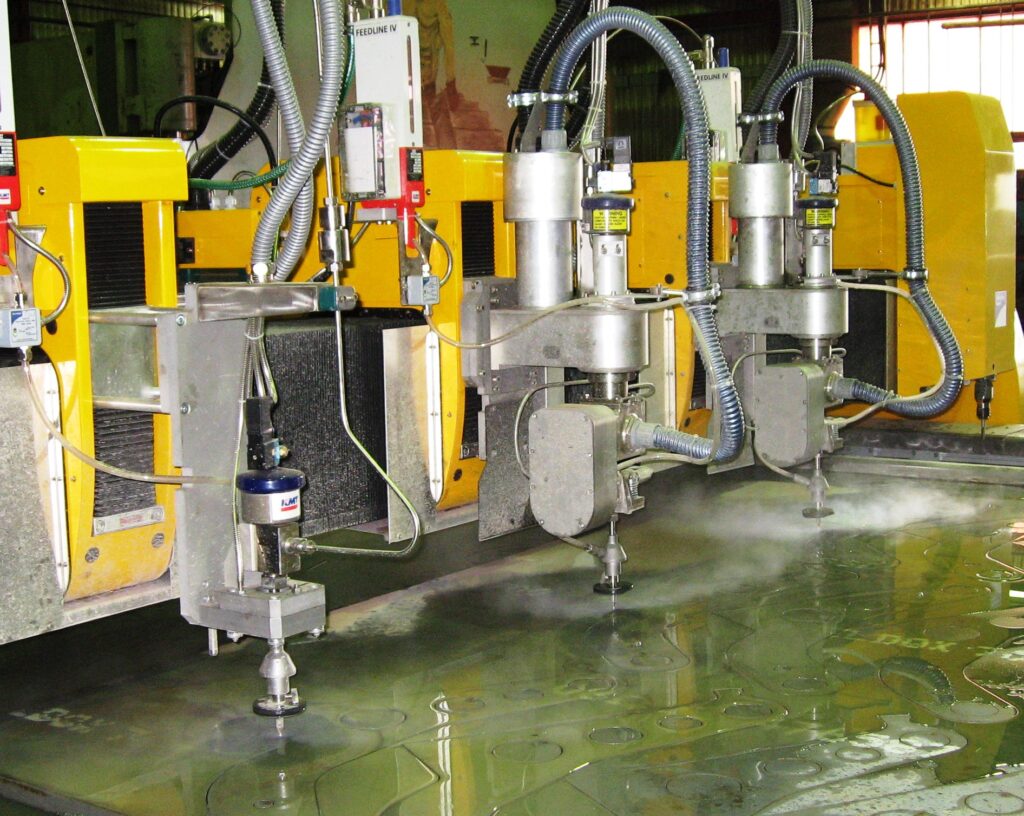

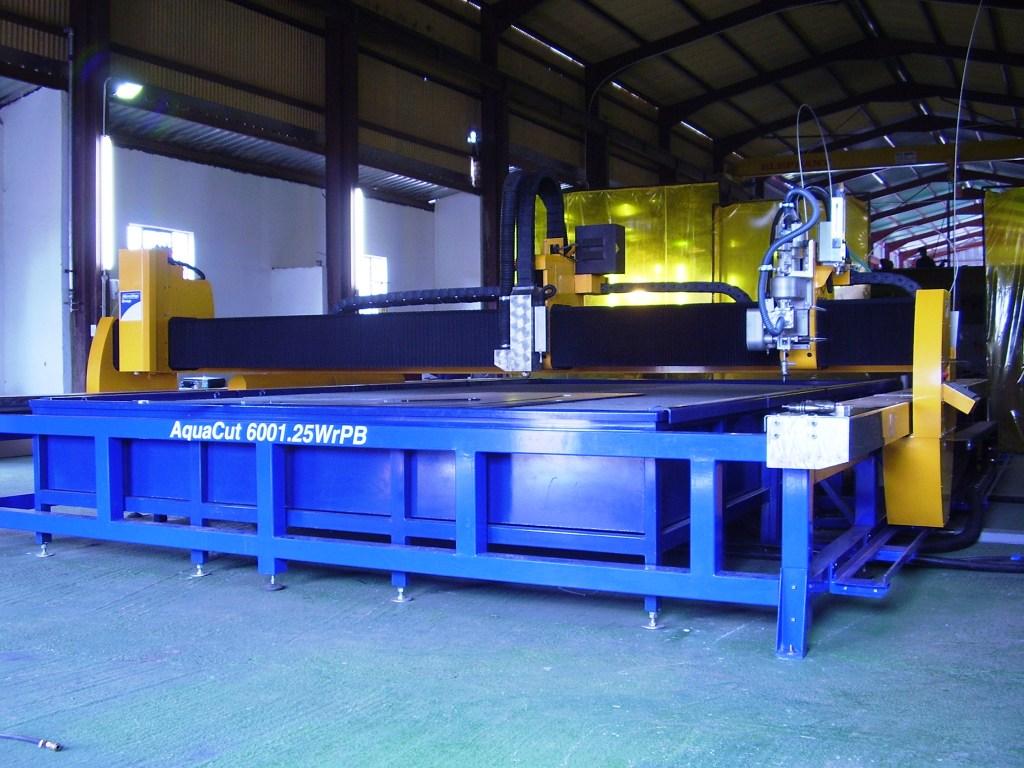

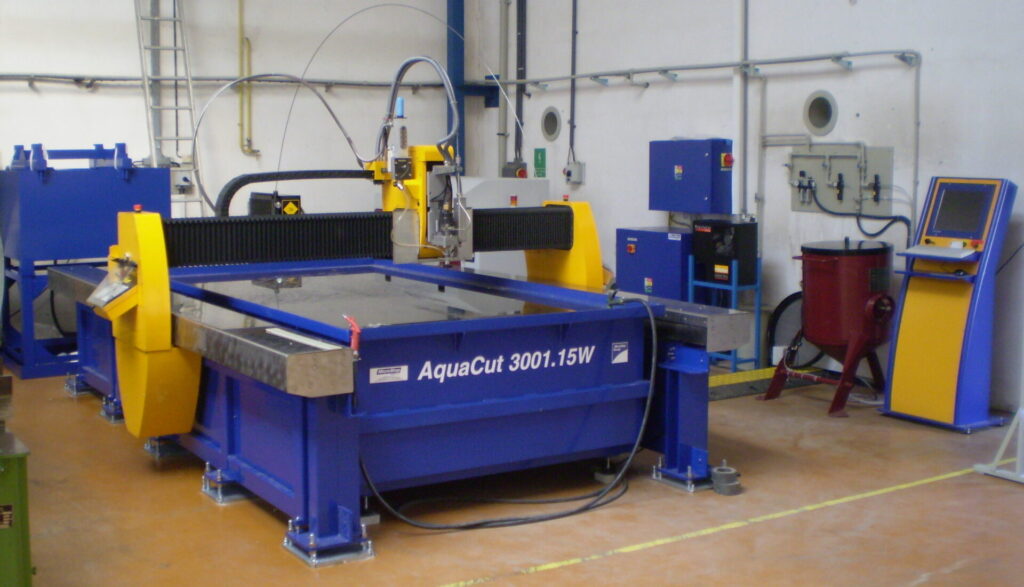

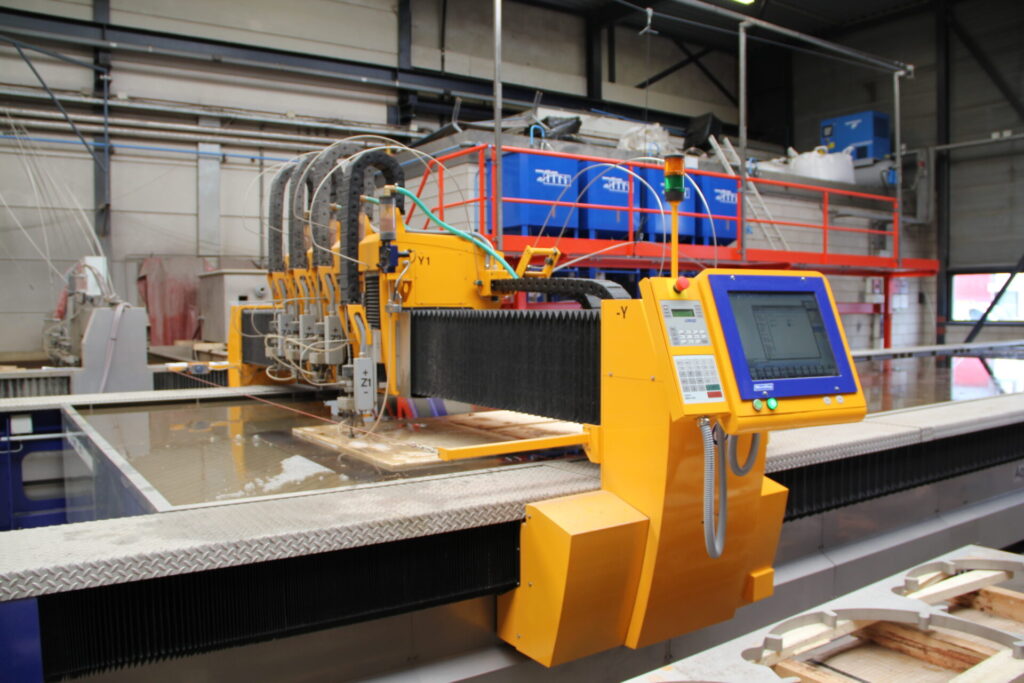

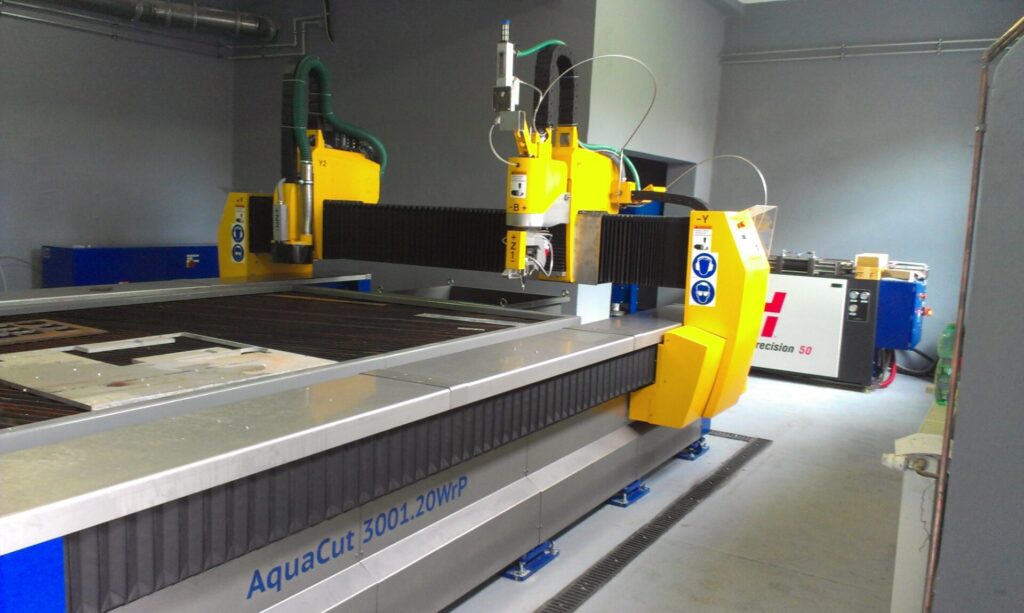

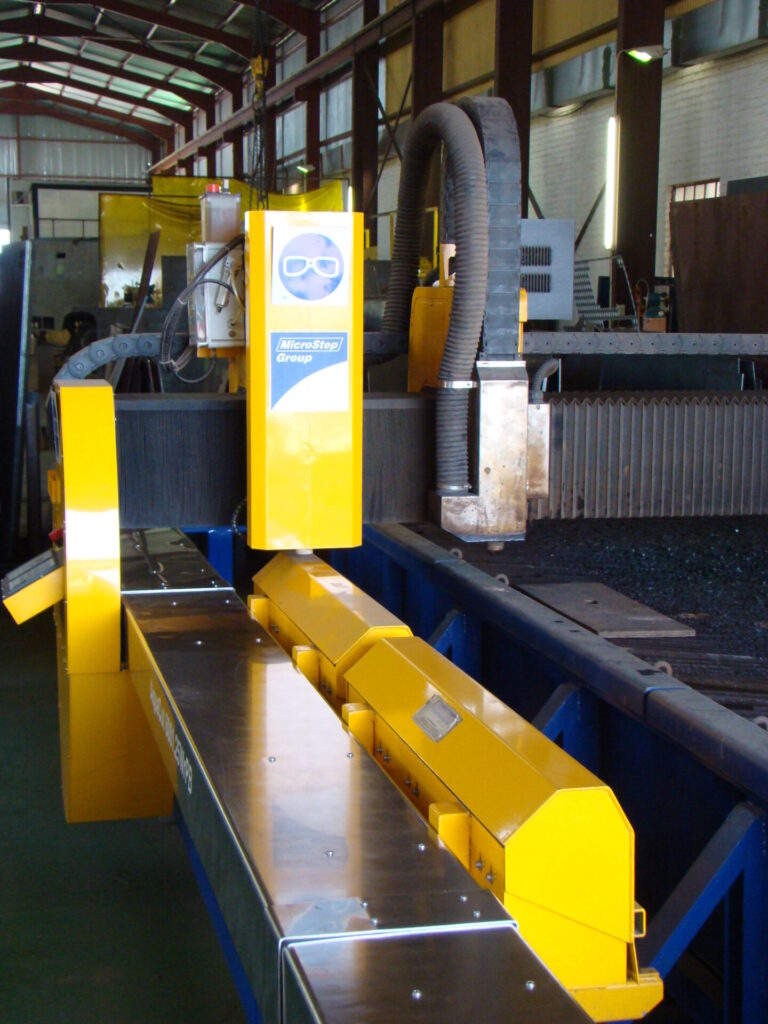

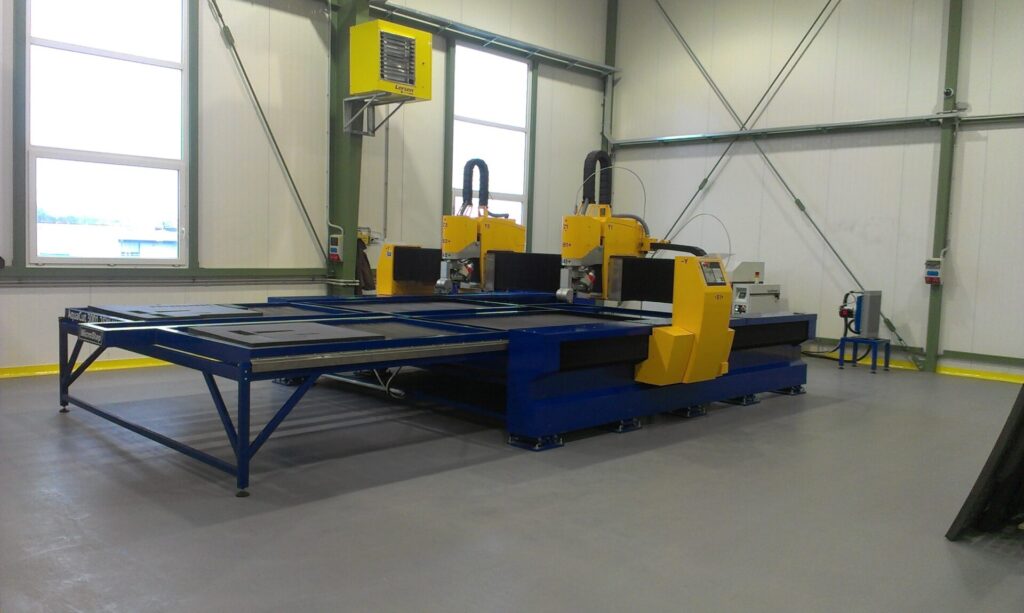

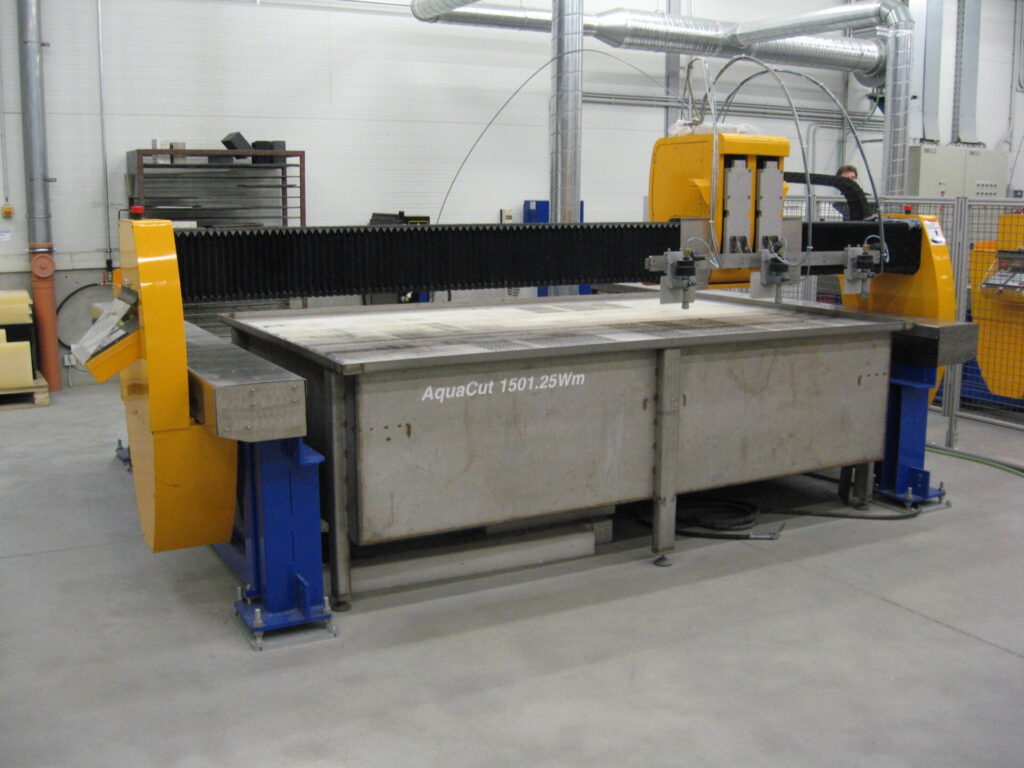

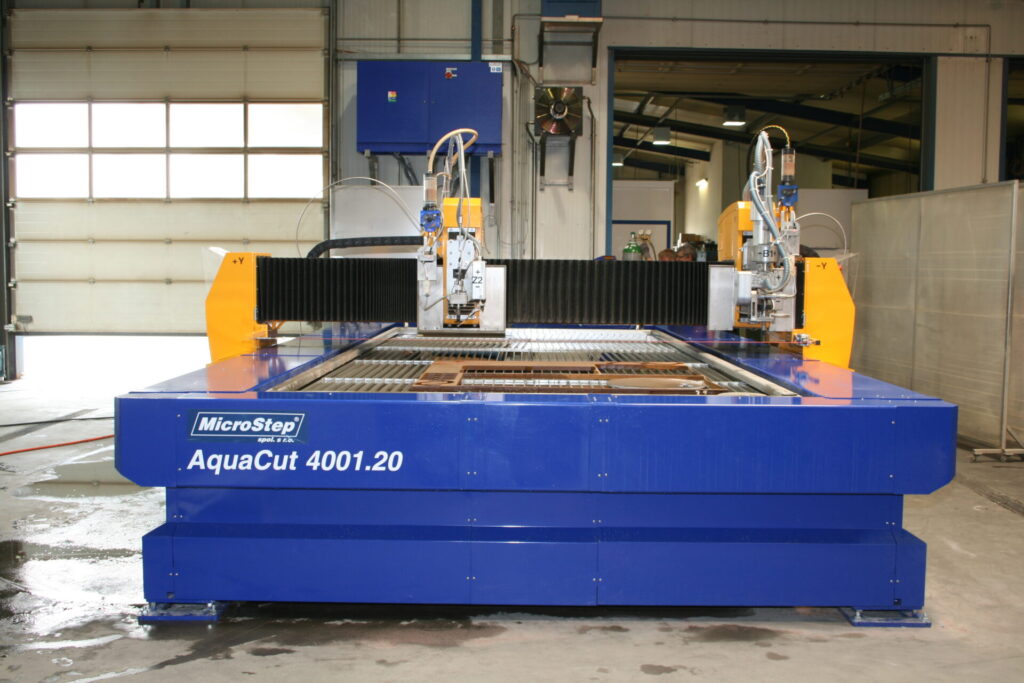

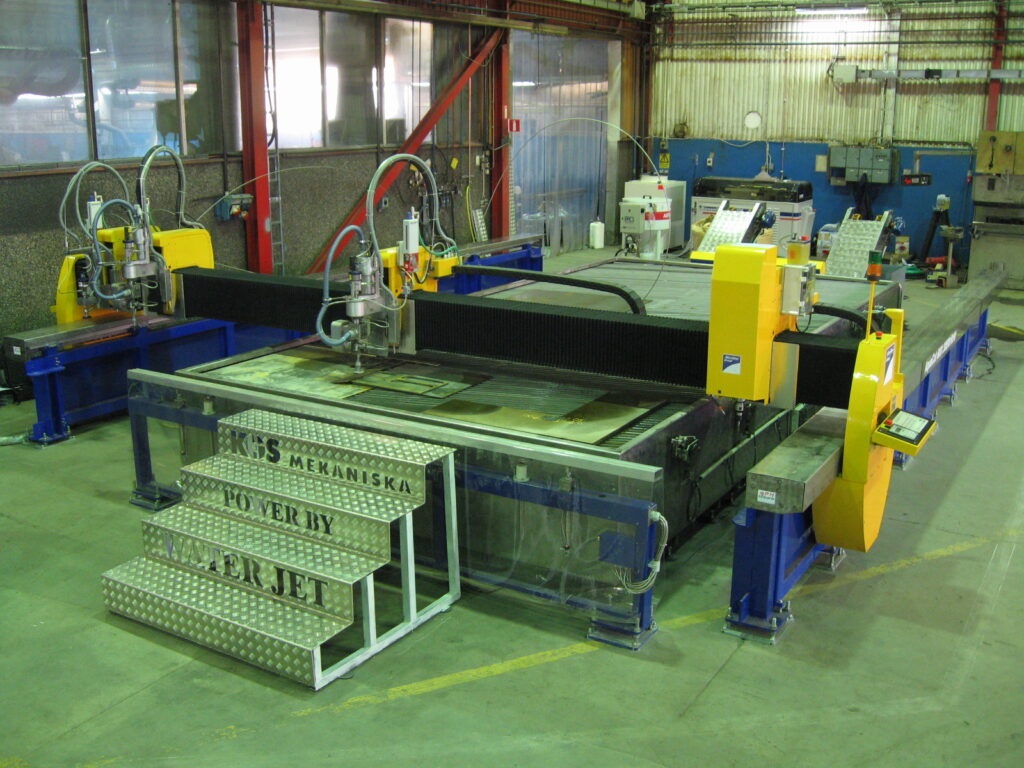

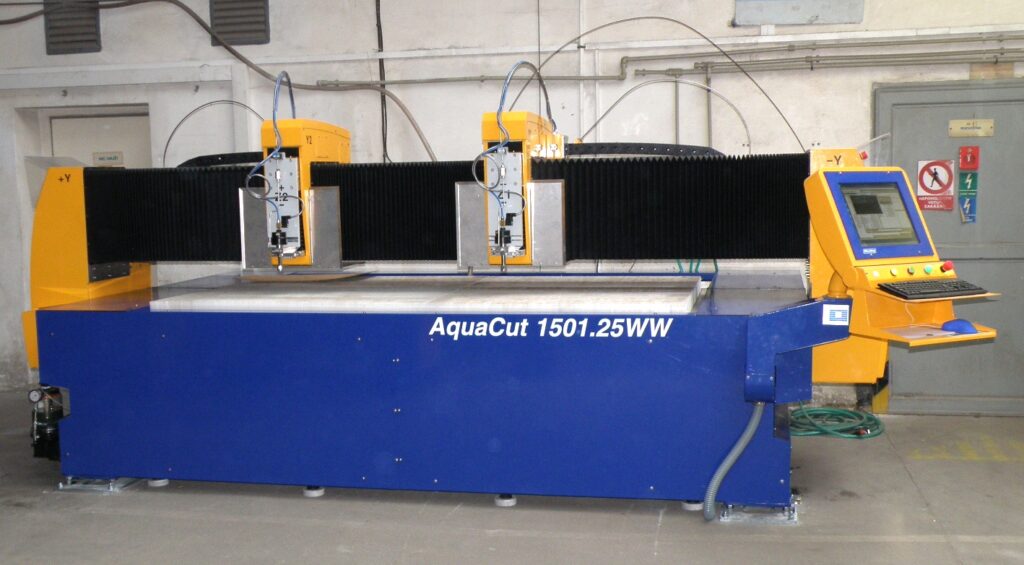

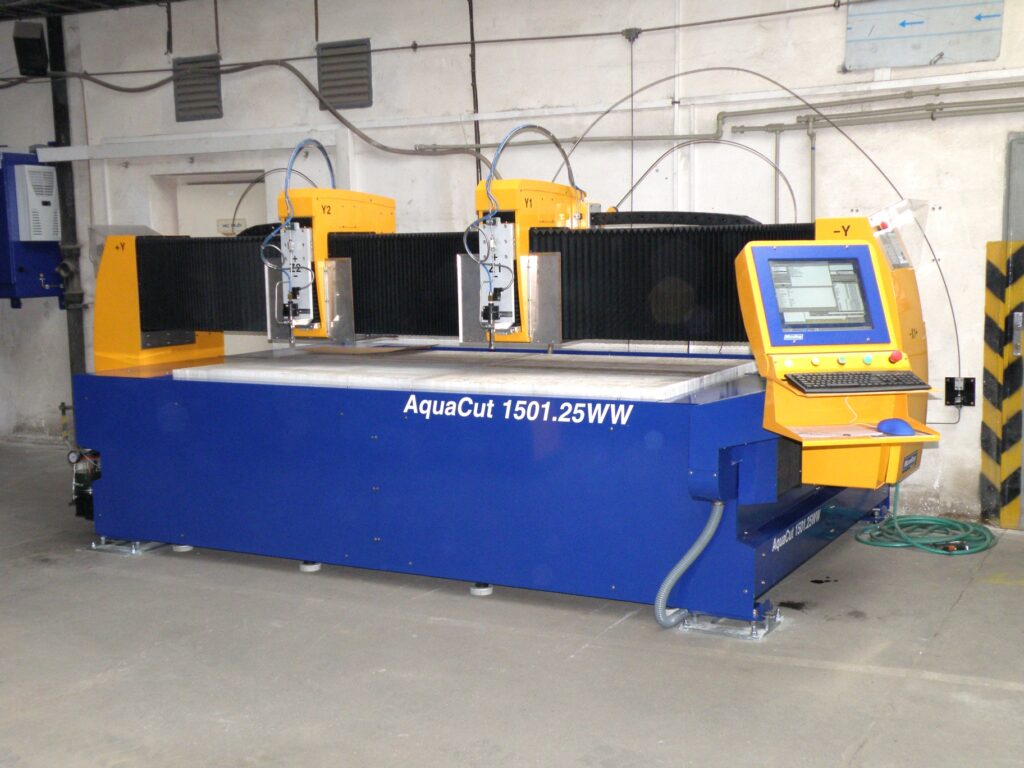

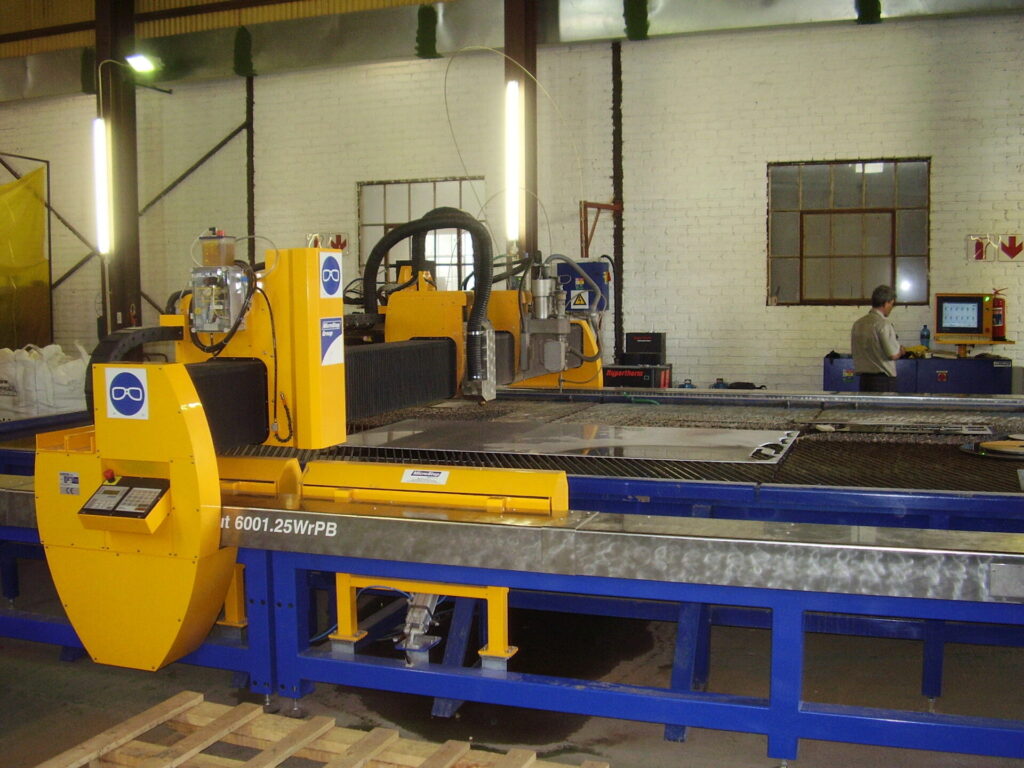

Multi-functional waterjet cutting machine
The machine can be equipped with a 5-axis waterjet rotator with ACTG® for bevel cutting, as well as combined with plasma, pipe and profile cutting or tapping. Other features include Additional Beveling Process (ABP) and taper compensation (ABC).
Features
- No thermal stress on the cut part
- Cutting of the finest contours
- Precision to the degree of hundredths of a millimeter
- Cutting of all materials (stone, steel, glass, rubber, wood, sandwich materials)
- High-pressure technology up to 6,200 bar

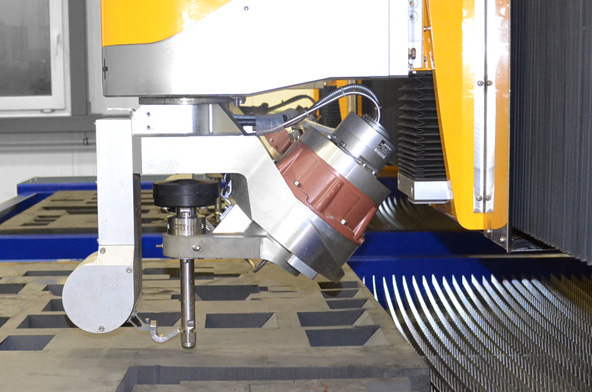

In order to meet the requirements for high precision and/or perpendicularity of the cut parts, MicroStep‘s Adaptive Bevel Compensation (ABC) technology enables taper compensation in a range of ± 7°. The technology adjusts the bevel angles with speed to compensate the natural stream lag and taper of a water jet. The system also allows custom adjustment of the compensation values.

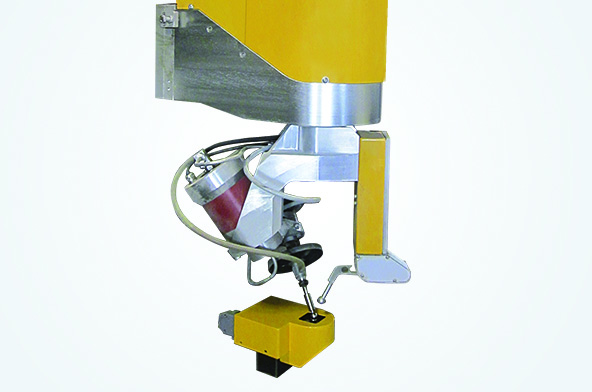

- Fully automatic and highly precise bevel cutting up to 45°
- Auto-calibration of tool geometry (ACTG®) feature ensures high precision and reliability of bevel cutting with minimum downtimes for maintenance
- Smooth, yet dynamic operation thanks to AC drives
- Intuitive and simple programming of bevels including the ABP technology
Boost the efficiency of your waterjet cutting machine with water tank cleaning equipment:
- Automatic cleaning of the water tank through continuous removal of used abrasive and cut material particles
- Minimizing downtime required for tank cleaning
- Time saving through automation

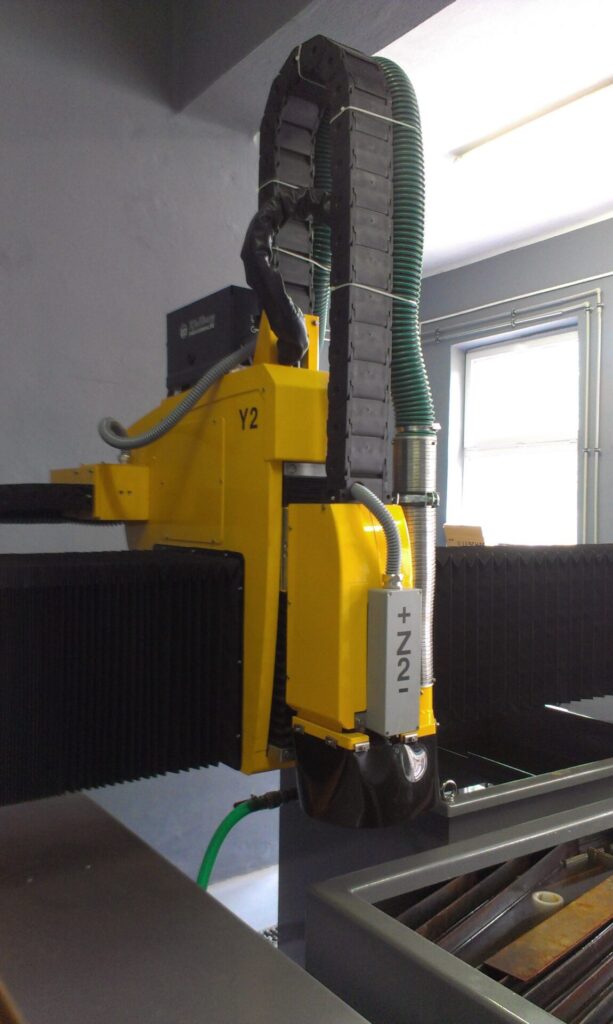

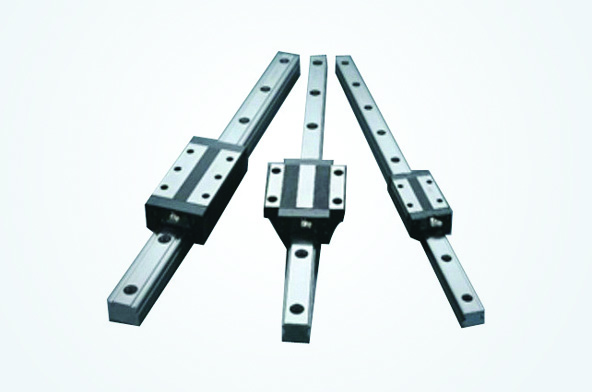

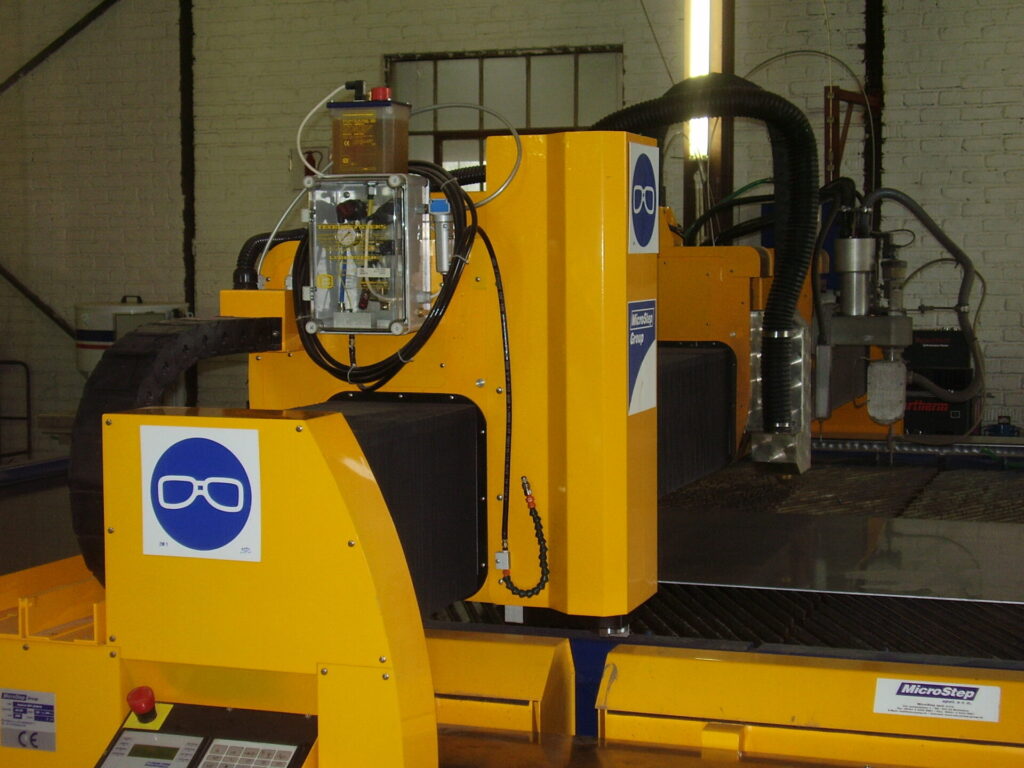

Rustproof chrome plating of linear guidelines helps to protect them against wear caused by abrasive and corrosion. In addition, bellows on all axes seal the guidelines against dust and humidity, substantially increasing their lifespan.

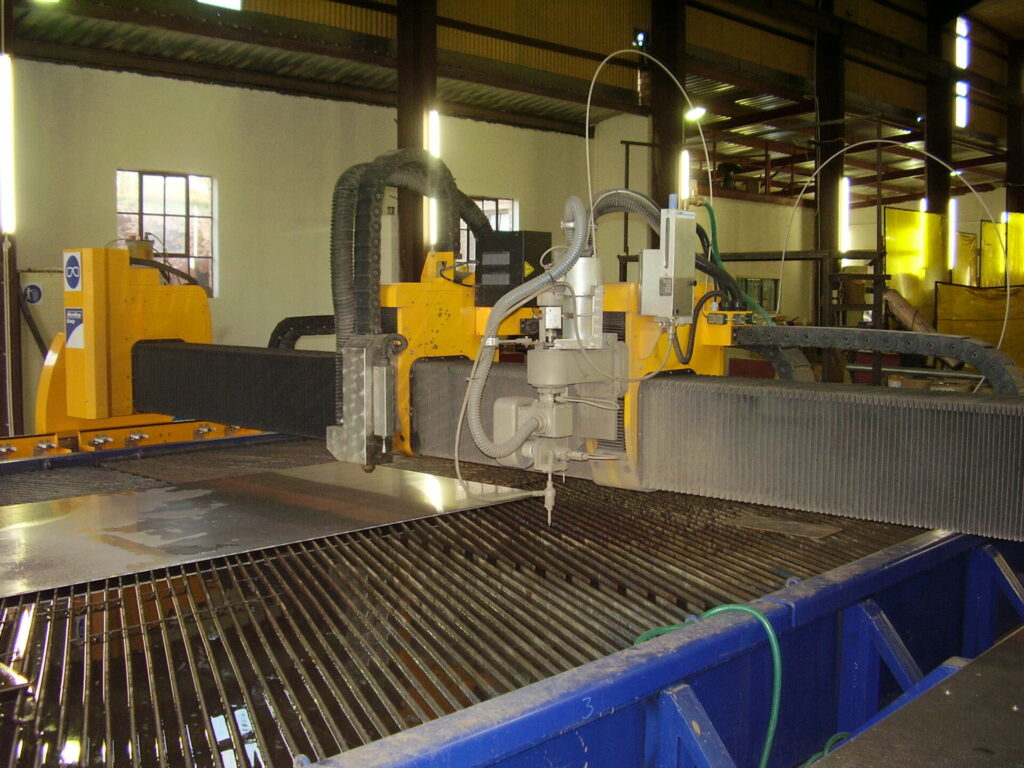

Depending on your requirements, different cutting table designs are available for the AquaCut series:

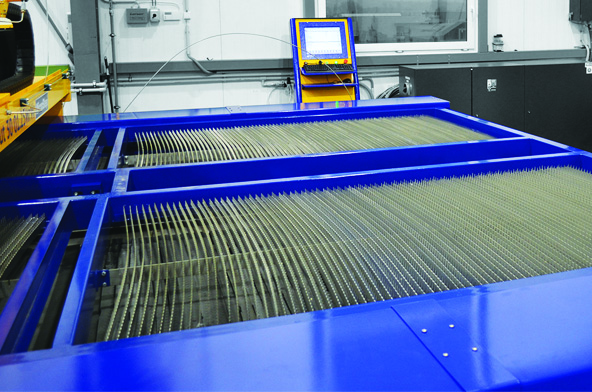

- Galvanized or stainless steel tanks

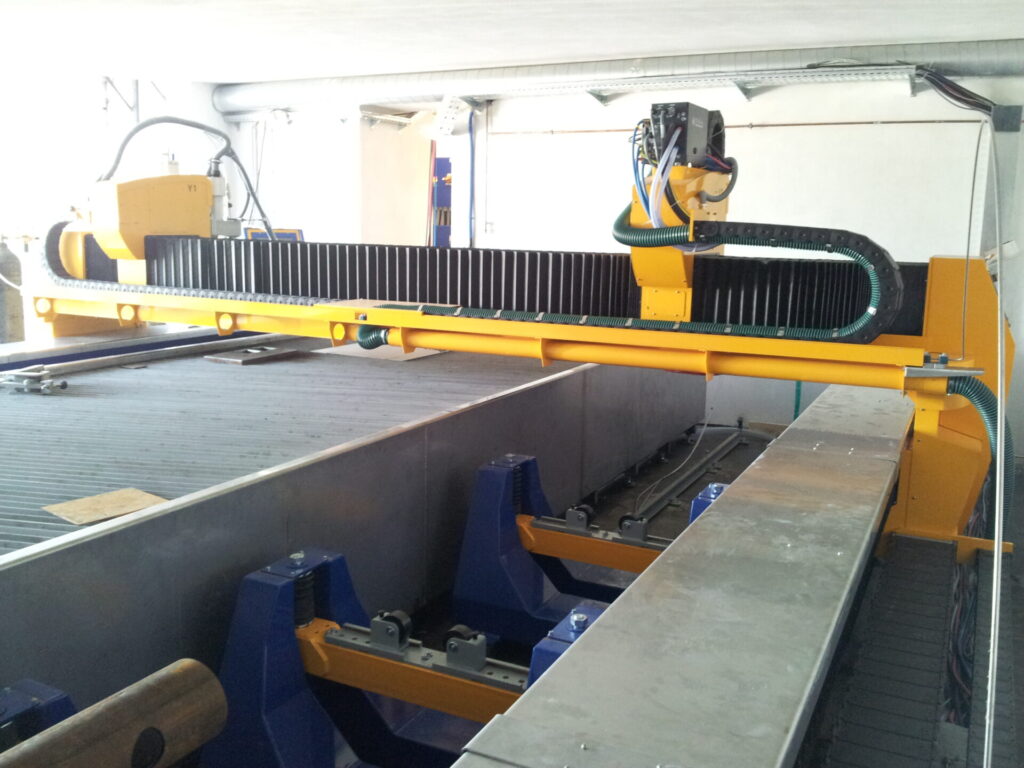

- Separate water tanks for pipe and profile cutting
- Custom designs for special requirements
- No thermal stress on the cut part
- Cutting of the finest contours
- Precision to the degree of hundredths of a millimeter
- Cutting of all materials (stone, steel, glass, rubber, wood, sandwich materials)
- High-pressure technology up to 6,200 bar
In order to meet the requirements for high precision and/or perpendicularity of the cut parts, MicroStep‘s Adaptive Bevel Compensation (ABC) technology enables taper compensation in a range of ± 7°. The technology adjusts the bevel angles with speed to compensate the natural stream lag and taper of a water jet. The system also allows custom adjustment of the compensation values.
- Fully automatic and highly precise bevel cutting up to 45°
- Auto-calibration of tool geometry (ACTG®) feature ensures high precision and reliability of bevel cutting with minimum downtimes for maintenance
- Smooth, yet dynamic operation thanks to AC drives
- Intuitive and simple programming of bevels including the ABP technology
Boost the efficiency of your waterjet cutting machine with water tank cleaning equipment:
- Automatic cleaning of the water tank through continuous removal of used abrasive and cut material particles
- Minimizing downtime required for tank cleaning
- Time saving through automation
Rustproof chrome plating of linear guidelines helps to protect them against wear caused by abrasive and corrosion. In addition, bellows on all axes seal the guidelines against dust and humidity, substantially increasing their lifespan.

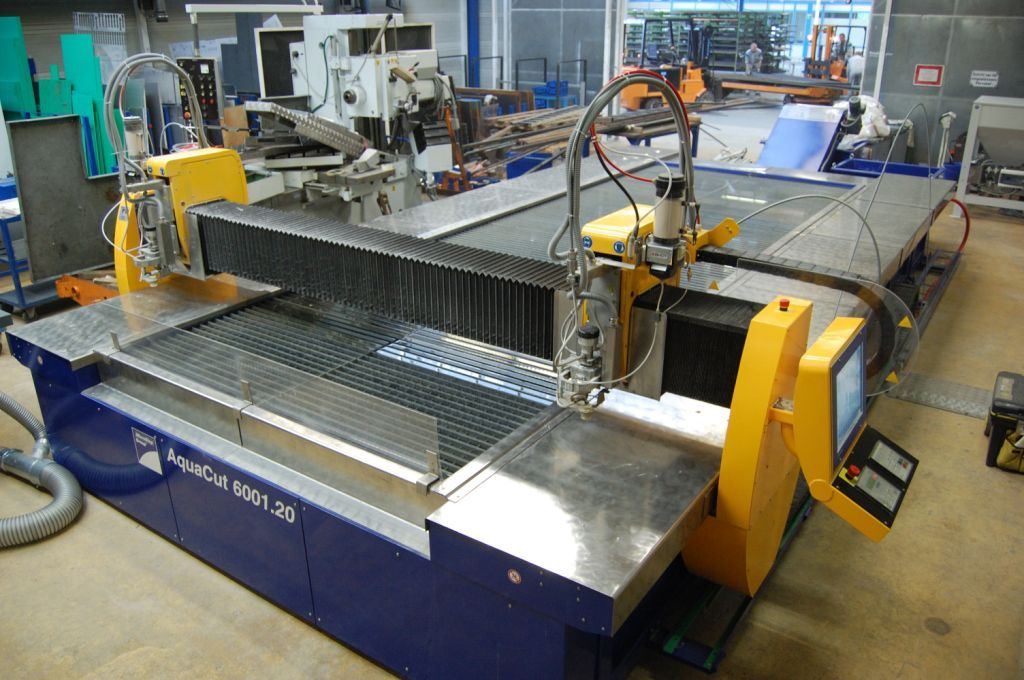

Depending on your requirements, different cutting table designs are available for the AquaCut series:
- Galvanized or stainless steel tanks
- Separate water tanks for pipe and profile cutting
- Custom designs for special requirements
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG® –…
Additional beveling process (ABP) is used for creating Y or K cuts in thicker plates.…
5-axis rotary bevel head with endless rotation enables plasma bevel cutting of plates, pipes, profiles…

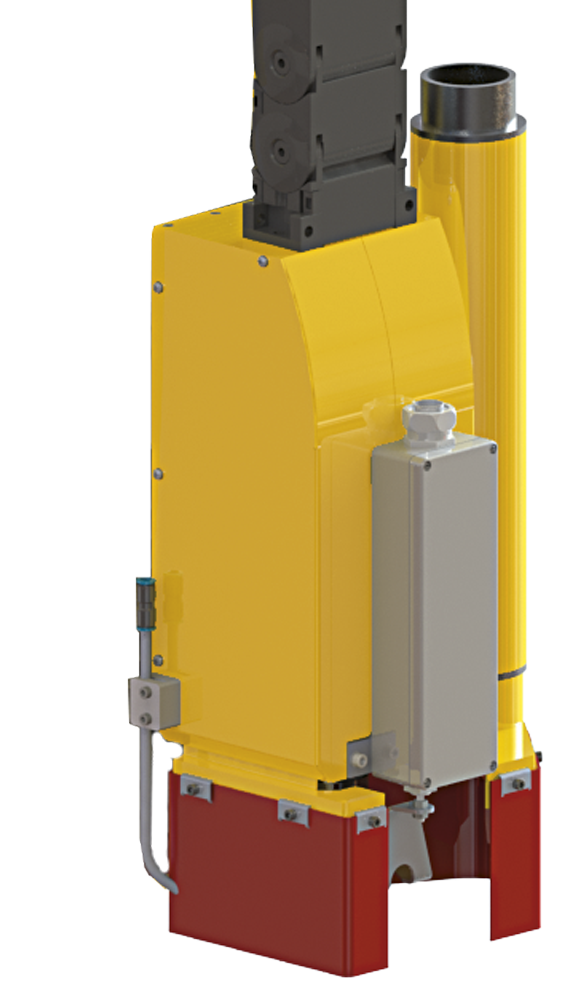

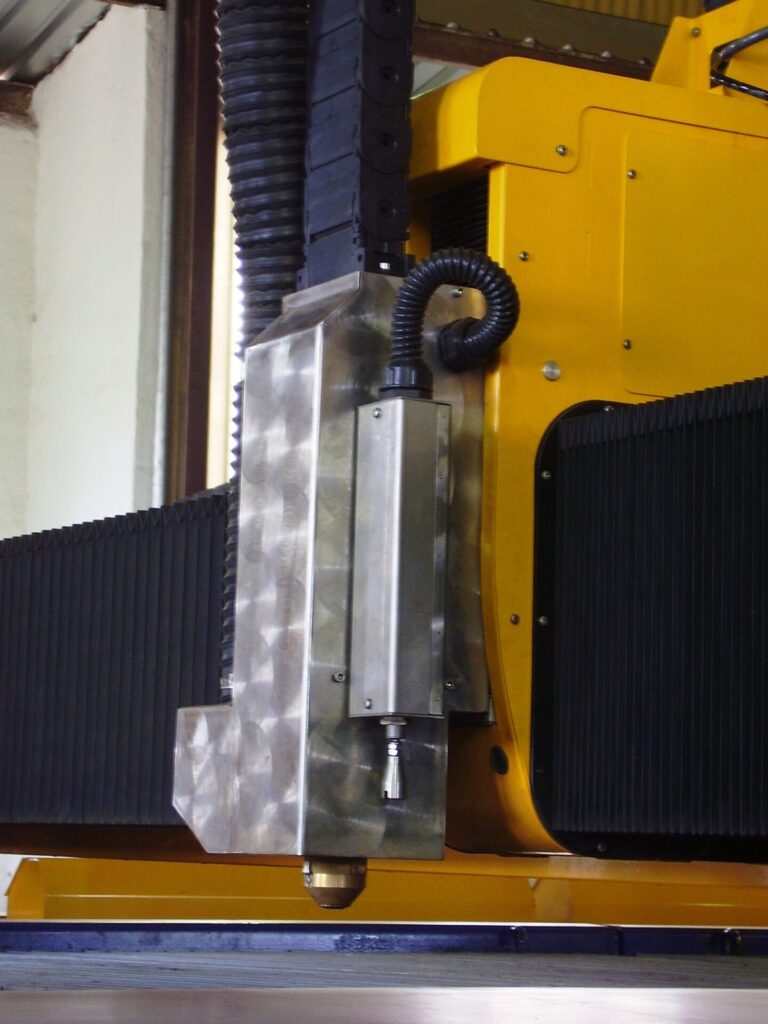

This plasma tool station is used for plasma cutting on our waterjet cutting machine AquaCut.…

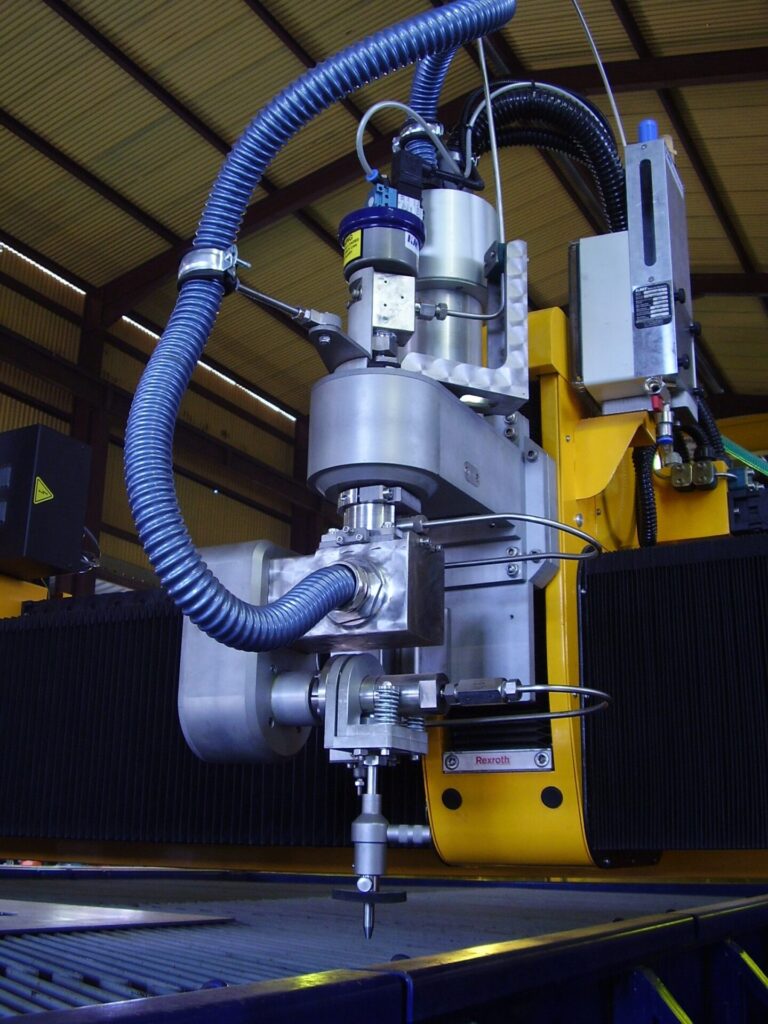

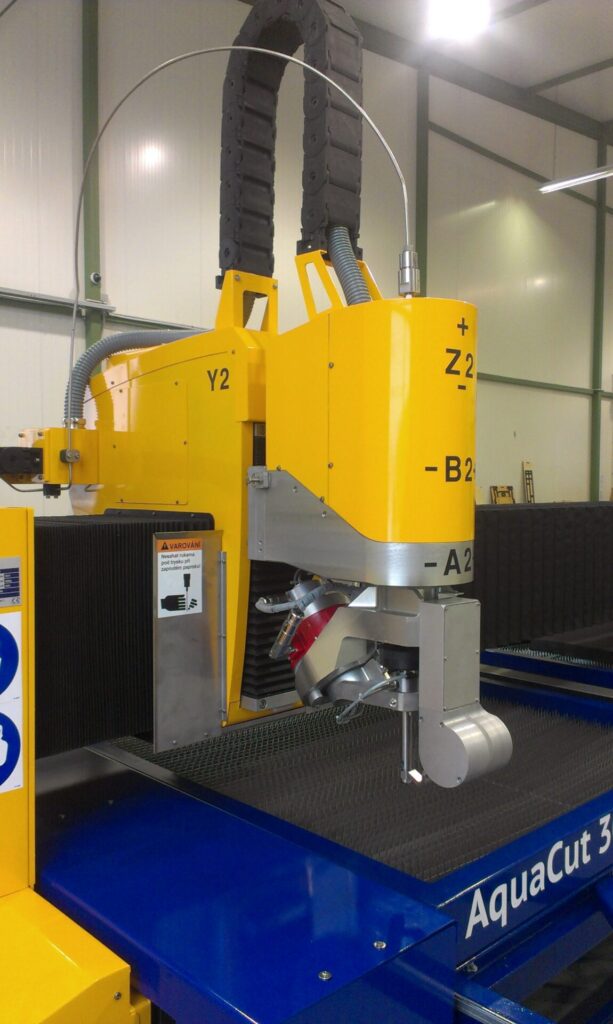

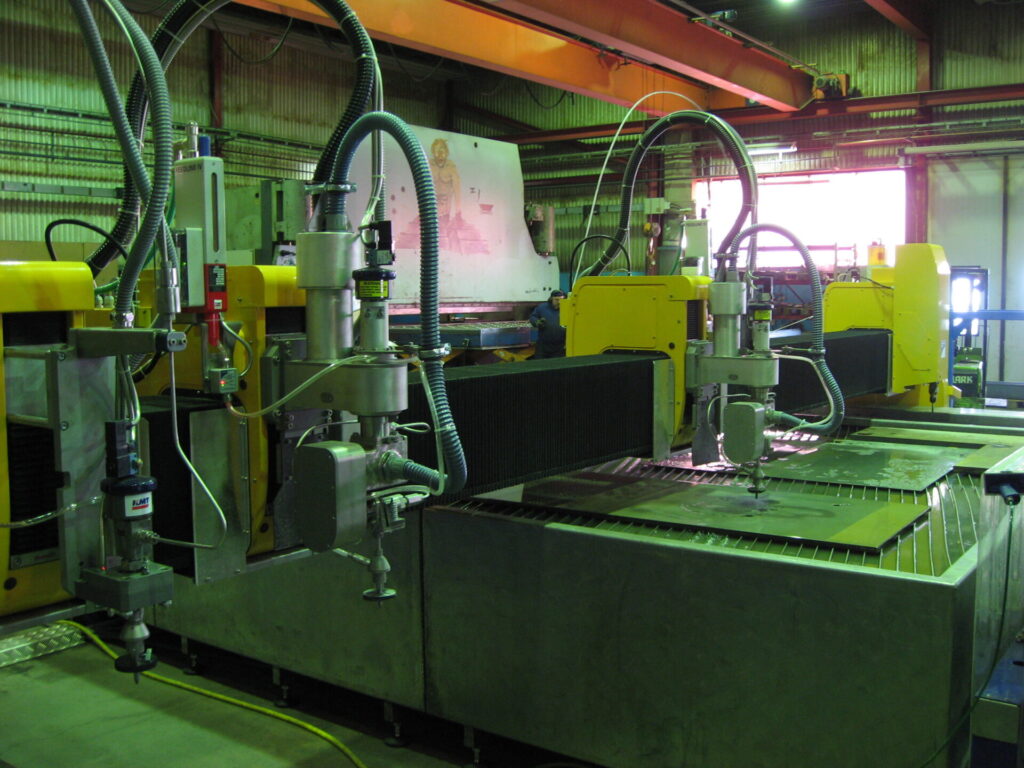

5-axis waterjet head with 600° rotation enables bevel cutting with tilting up to 50°. Height…

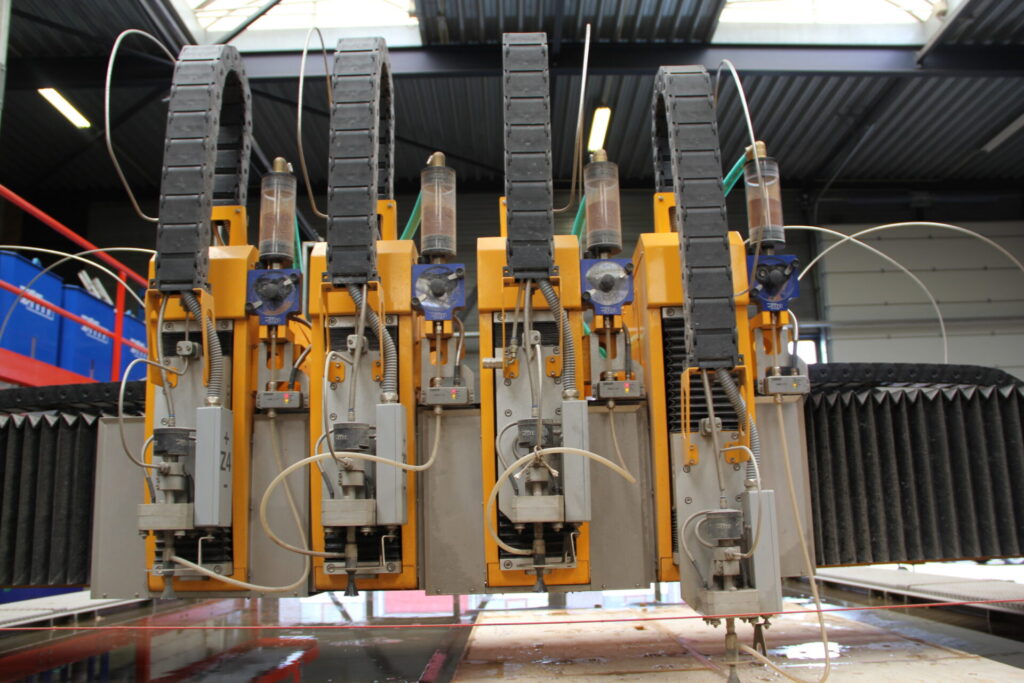

This tool station with up to 4 cutting nozzles is designed for simultaneous cutting of…
This equipment is designed for mechanical sludge removal from an AquaCut tank. The conveyor consists…
Video
Technical parameters
| Working length | 3000 – 18000 mm |
|---|---|
| Working width | 1500 – 4000mm |
| Max number of tool stations | 4 |
| Max thickness of material cut by plasma | according to the plasma source |
| Max thickness of material cut by waterjet | 200 mm |
| Bevel cutting | yes (see Accessories) |
|---|---|
| Pipe cutting | inquire individually |
| Tapping | M3 – M12 |
| Positioning speed | max. 56 m/min |
| Bidirectional repeatability | 0.05 mm/m |

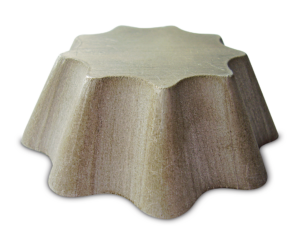

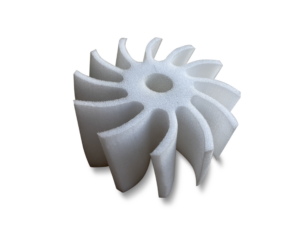

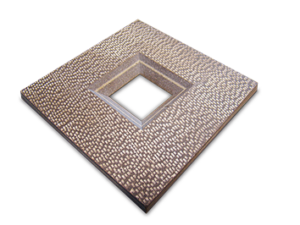

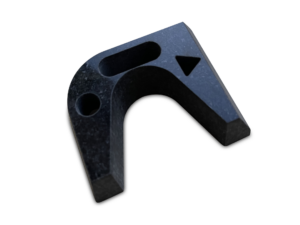

Samples
