ProfileCut

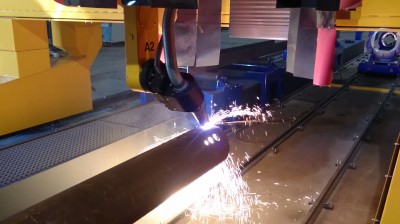

ProfileCut is a variable machine dedicated for production of steel structures. Besides optional pipe-, rectangular profile- and sheet cutting zones it has a dedicated zone for cutting of structural profiles such as I, U or L. To enable precise division as well as cut-outs in required spots on the beam, the machine is equipped with a laser scanner for measuring of the exact shape of profile in the place of cutting which allows the control system to adjust the movement of tool according to the true shape of profile. In addition, the machine offers drilling and marking operations on beams.

Technical parameters

Working lenght1500 - 50000 mm
Working width1500 - 8000 mm
 Max. number of tool stations6 (8 oxyfuel)
 Max. thickness of material cut by plasmaaccording to a plasma source
 Max. thickness of material cut by oxyfuel300 mm
Bevel cuttingyes (see accessories)
Pipe cuttingØ 100 - 1500 mm, max 12 t
Hollow profile cutting100 x 100 - 600 x 600 mm
H-profile cuttingmax HEB 1000
Drilling and tappingØ 4 - 40 mm, M4 - M33, automatic tool exchange
Positioning speedmax 23 m/min
