CPCut

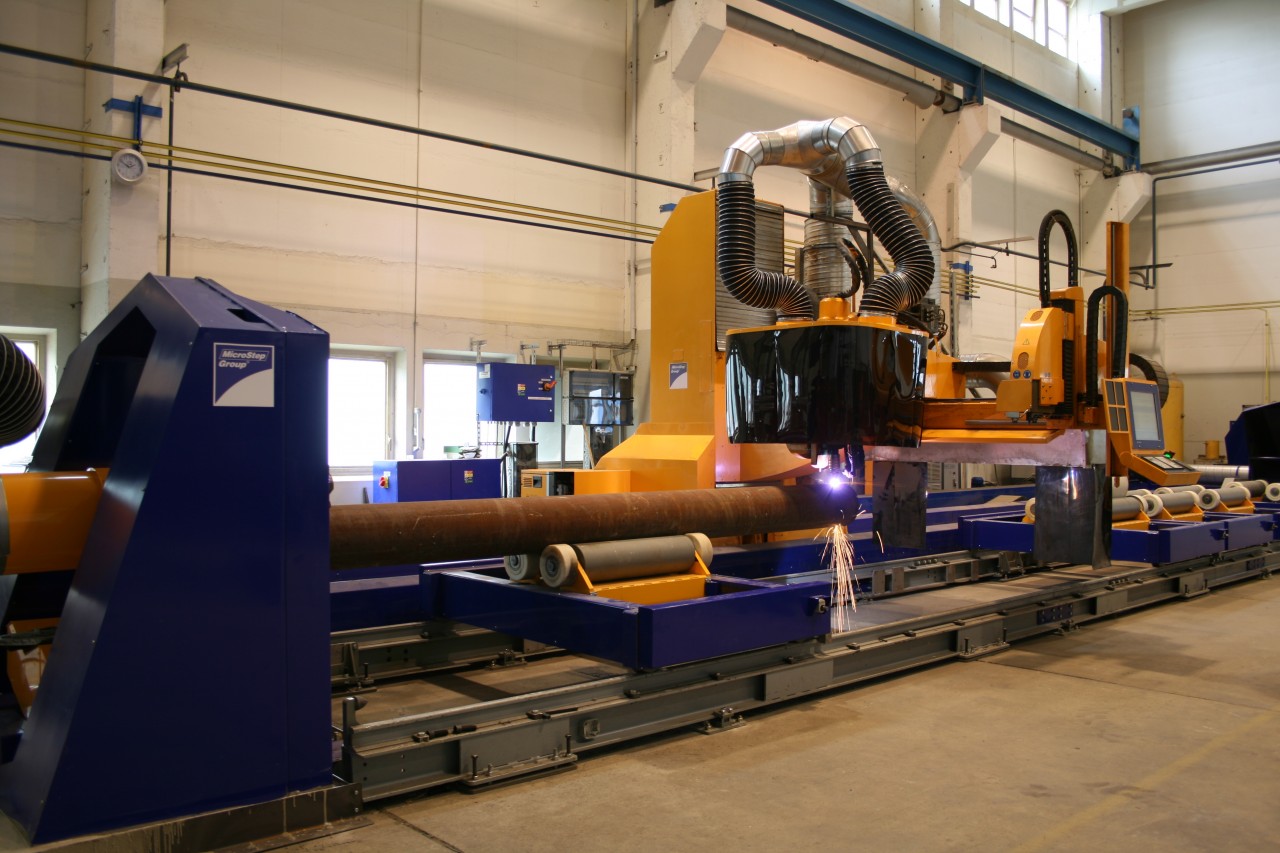

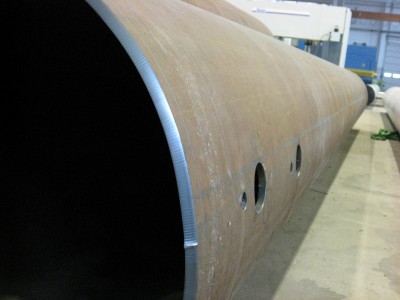

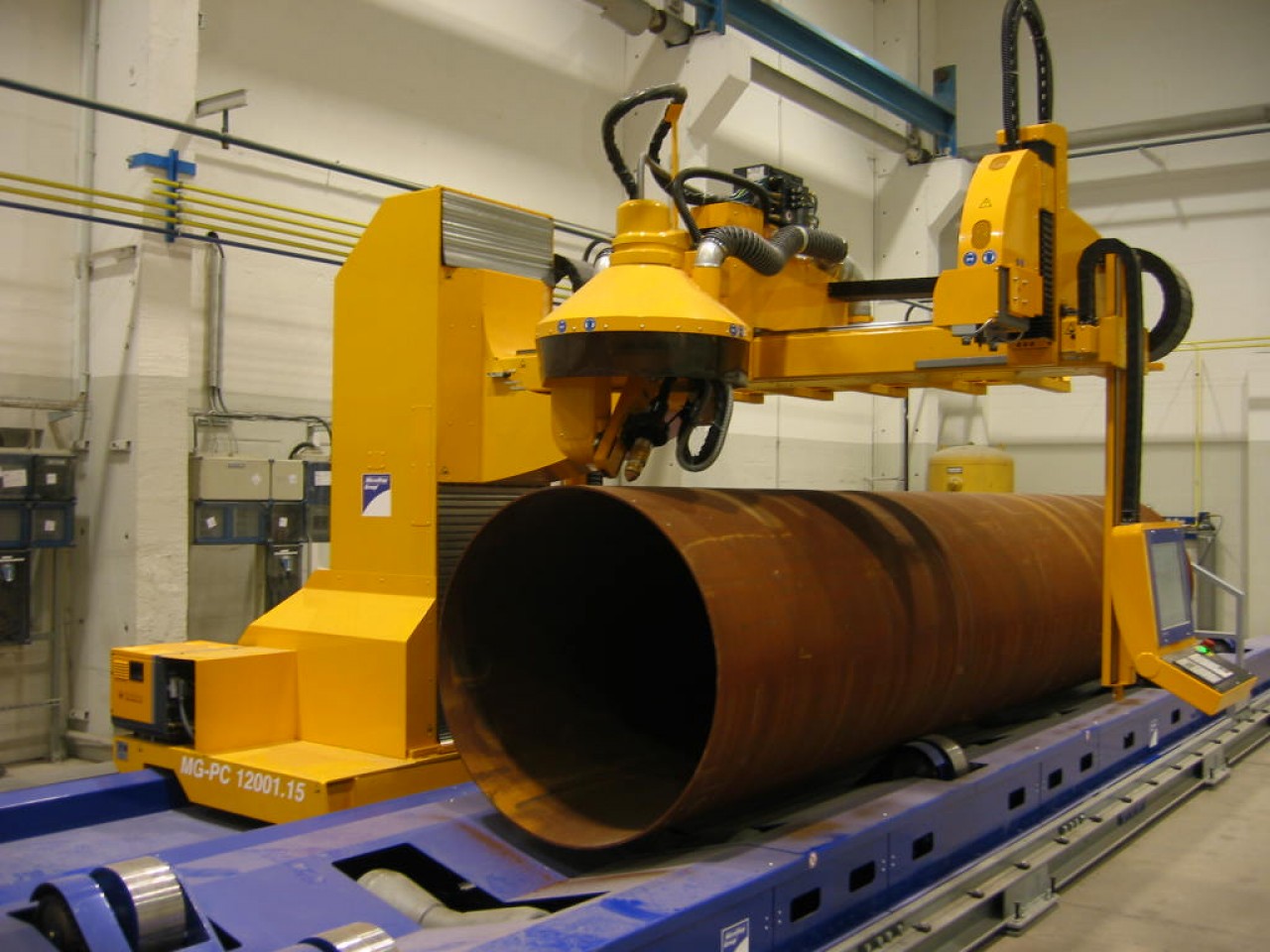

CPCut is a pipe and profile cutting line designed for processing of a great range of pipe diameters and lengths. The machine´s modular design and variable execution enables a wide range of pipe based applications including trimming, cutting of various openings for multiple pipe and profile intersections or connections, welding seam preparation as well as pipe marking. The application field is in tank, pipeline and power plant constructions.

Technical parameters

Working lenghtmax 12000 mm
Working diameterØ 100 - 1 500
 Max. number of tool stations2
 Max. thickness of material cut by plasmaaccording to a plasma source
 Max. thickness of material cut by oxyfuel60 mm
Bevel cuttingyes (see accessories)
Plate cuttingno
Drilling and tappingno
Max. speed in X direction30 m/min
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers' needs.

Inquiry formBrochure

CPCut Accessories

  • Plasma Straight Tool Station
  • Plasma 50° Rotator
  • Plasma 90° Rotator
  • Auto-calibration of Tool Geometry
  • Inkjet Writer
  • MicroPunch
  • Rotary Pipe Positioner RSV 30-300 (3 t)
  • Rotary Pipe Positioner RSV 30-500 (1 t)
  • Oxyfuel Straight Tool Station
  • Profile Scanner
